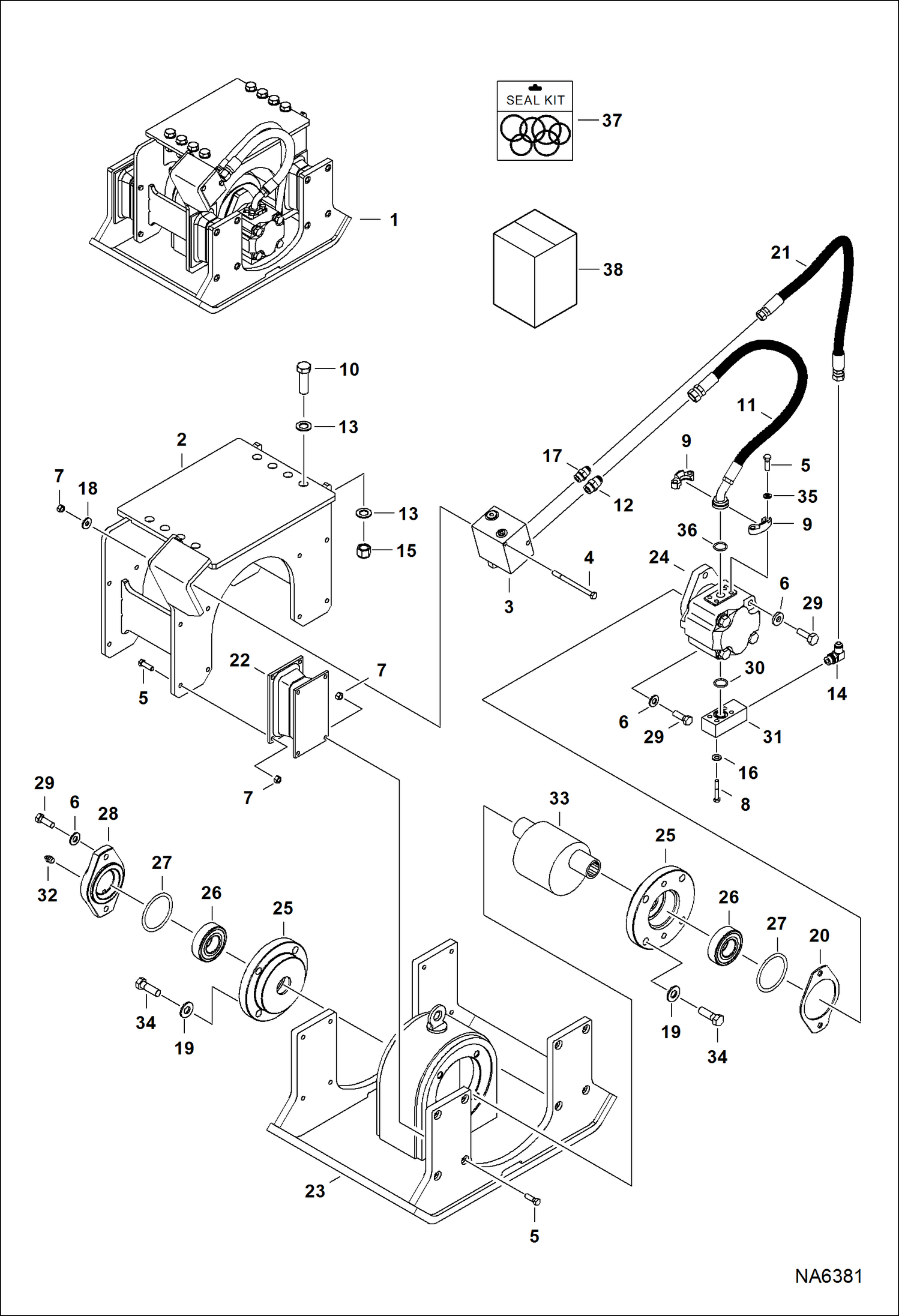

Запчасти Bobcat PLATE COMPACTORS PLATE COMPACTOR (PCF34 AW3H) Экскаваторы

1

COMPACTOR ASSY SALES #7211623

2

7024202

FRAME, MAIN ASSY

3

6689919

MANIFOLD, HYD ASSY See Illustration PLATE COMPACTOR/ MS2655 - flow control

4

17C688

BOLT

5

17C620

BOLT

6

27E8

WASHER 10

7

95D6

NUT

8

17C632

BOLT 5

9

19J12

CLAMP split flange

10

17C1240

BOLT

11

7024221

HOSE, HYD

12

41E1210

FITTING, HYD CONNECTOR

12

75K10

O RING 10 boss

12

55K18

O'RING face seal

13

25E12

WSHR

14

17KB0808

FITTING, HYD ELBOW

14

79K8

O RING 10

15

59D12

NUT

16

27E6

WASHER 5

17

41E0808

FITTING, HYD CONNECTOR

17

75K8

O RING 10 boss

17

55K14

O-RING face seal

18

25E6

WSHR

19

27E10

WASHER

20

6675166

MOUNT ADAPTER

21

7024220

HOSE, HYD

22

6675168

MOUNT, RUBBER

23

FRAME NSS - Order Ref. 1

24

6675165

MOTOR

25

6675159

END CAP bearing

26

6675161

BEARING

27

6675164

O-RING

28

6675160

END CAP

29

17C824

BOLT 5

30

6651781

O-RING

31

6675163

MANIFOLD inlet

32

6630626

GREASE ZERK

33

6675167

ROTOR

34

17C1032

BOLT

35

4E6

WASHER

36

58K214

O RING 10

37

6675840

SEAL KIT for Ref. 24 motor

38

REPAIR KIT NLA - for Ref. 24 motor
