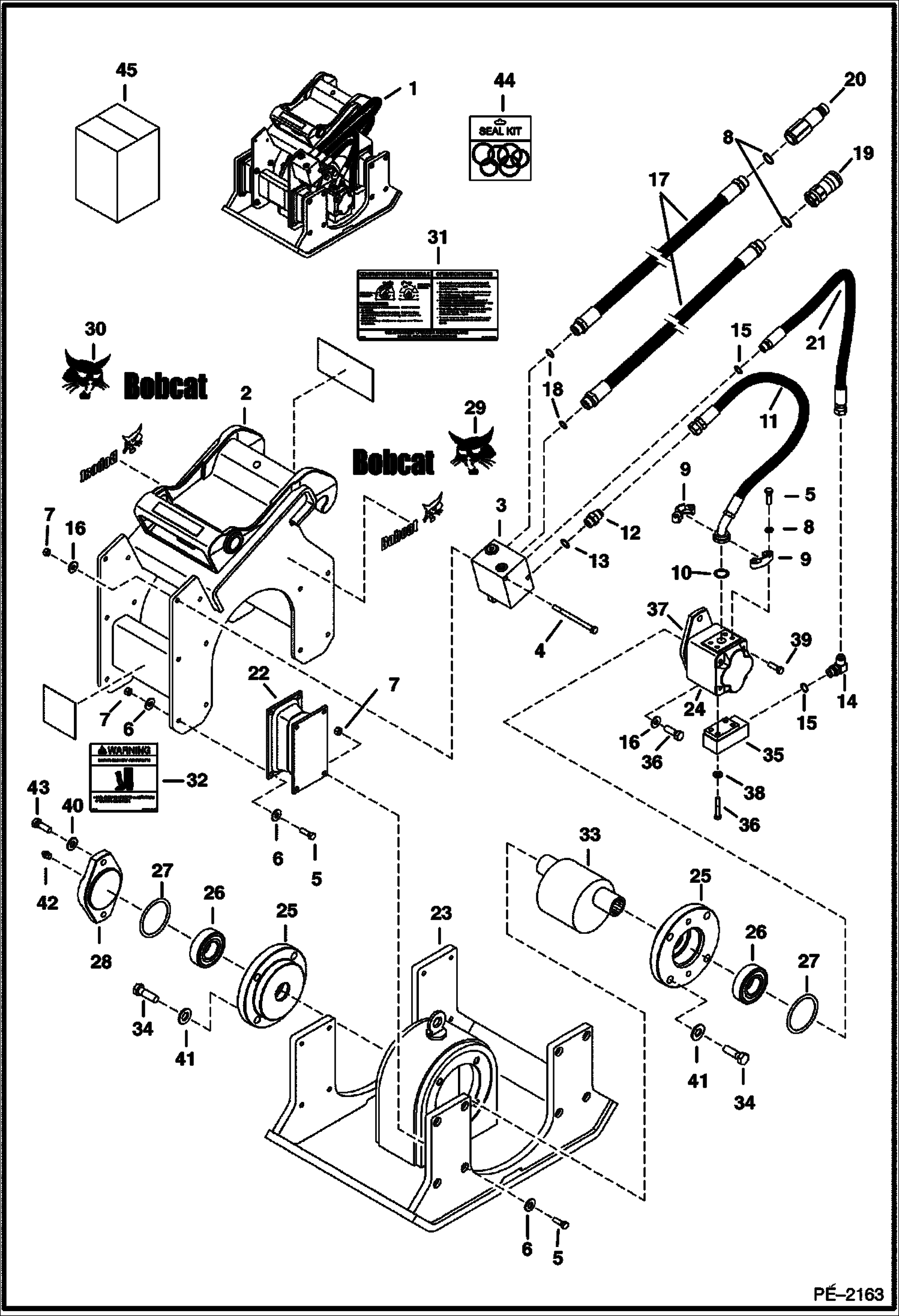

Запчасти Bobcat PLATE COMPACTORS PLATE COMPACTOR (325-341,430,435) (PC30 7695) Экскаваторы

1

COMPACTOR ASSY SALES #6717695

2

7161533

FRAME, MAIN ASSY Was 7110879 - A

3

6689919

MANIFOLD, HYD ASSY See Illustration PLATE COMPACTOR/ MS2655 Flow Control - Was 6674020 - A

4

17C680

BOLT

5

17C620

BOLT

6

27E6

WASHER 5

7

95D6

NUT

8

4E6

WASHER

9

19J12

CLAMP split flange

10

58K214

O RING 10

11

6718433

HOSE

12

15KB1010

FITTING, HYD CONNECTOR W/Ref. 13 - Was 15K7 - B

13

79K10

O RING 10

14

17KB0808

FITTING, HYD ELBOW W/Ref. 15 - Was 17K6 - B

15

79K8

O RING 10

16

27E6

WASHER 5

17

6717574

HOSE W/Ref. 18 - 88'' long

17

6718351

HOSE W/Ref. 18 - 104'' long - Use W/ long arm

18

79K12

O RING 10

19

6672960

COUPLER, FF FEMALE straight

20

6674688

COUPLER, FF MALE straight

21

6718434

HOSE W/Ref. 15

22

6675168

MOUNT, RUBBER

23

FRAME NSS - Order Ref. 1

24

6675165

MOTOR

25

6675159

END CAP bearing

26

6675161

BEARING

27

6675164

O-RING

28

6675160

END CAP

29

6727323

DECAL, LOGO BOBCAT AND HEAD

29

7109473

DECAL, LOGO BOBCAT AND HEAD

30

6727324

DECAL, LOGO BOBCAT AND HEAD

30

7109473

DECAL, LOGO BOBCAT AND HEAD

31

6717570

DECAL, SERVICE See Illustration PLATE COMPACTOR/ NA6227

31

7130150

DECAL, SERVICE See Illustration PLATE COMPACTOR/ NA6227 - no-text

32

6717882

DECAL, WARNING See Illustration PLATE COMPACTOR/ NA6227

32

7130151

DECAL, WARNING See Illustration PLATE COMPACTOR/ NA6227 - no-text

33

6675167

ROTOR

34

17C1032

BOLT

35

6675163

MANIFOLD inlet

36

17C632

BOLT 5

37

6675166

MOUNT ADAPTER

38

6651781

O-RING

39

17C824

BOLT 5

40

27E8

WASHER 10

41

27E10

WASHER

42

10H25

FITTING, GREASE 5 grease

43

17C832

BOLT

44

6675840

SEAL KIT for Ref. 24 motor

45

REPAIR KIT NLA - for Ref. 24 motor - includes (2) each of bearing, ring seal,l shaft and thrust plate - Was 6675841 - A
