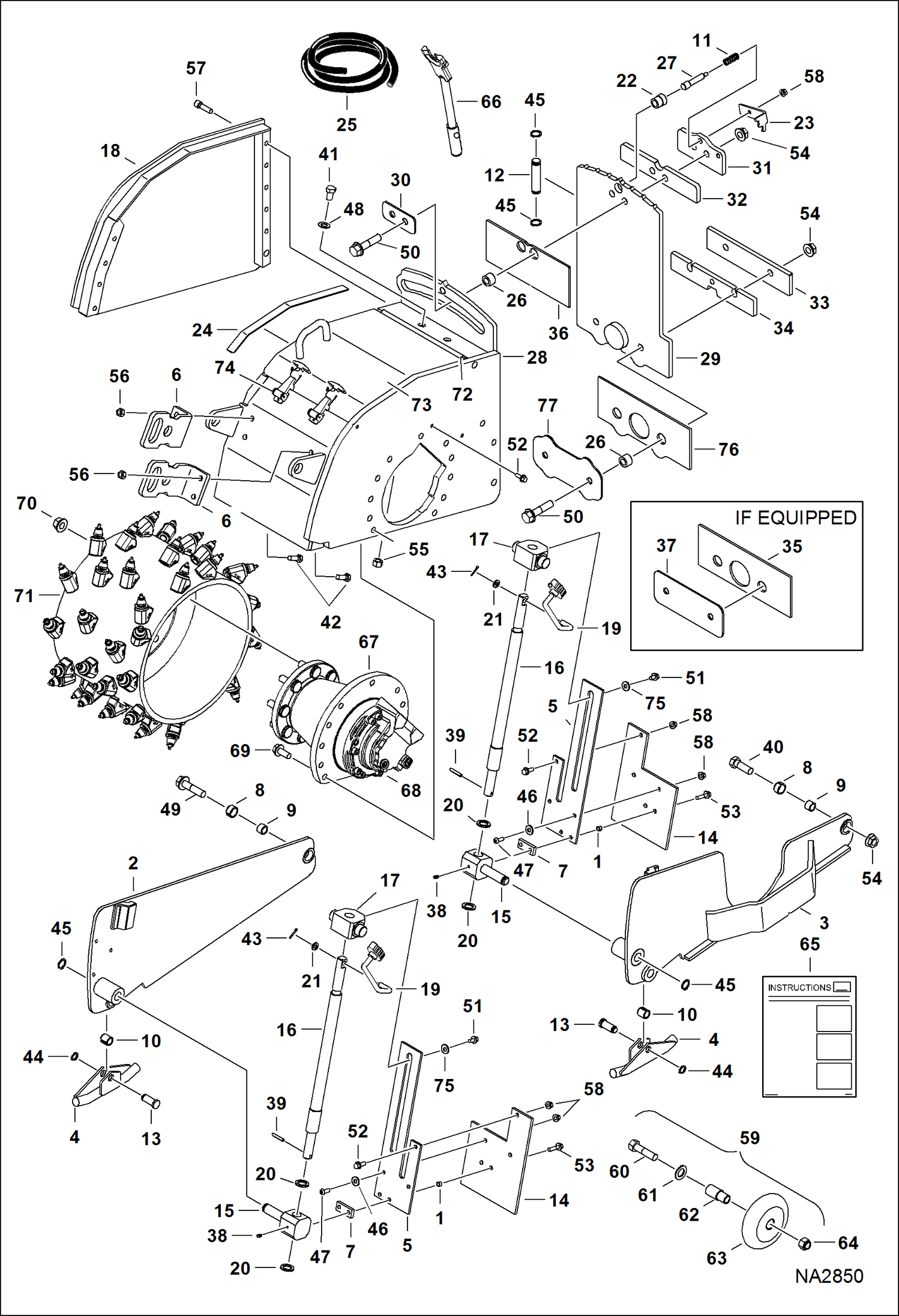

Запчасти Bobcat PLANERS PLANER (Housing Group) (Standard Flow Planer) (14 AKS3) Loader

1

6544654

BUSHING

2

6713574

MOUNT

3

6713575

MOUNT, SKI

4

6713578

SKID BAR

5

6713579

SHIELD

6

6713580

MOUNT

7

6713581

SPACER

8

6713583

BUSHING

9

6713667

BUSHING

10

6713700

BUSHING

11

6714639

SPRING

12

6714997

PIN

13

6714998

PIN

14

6905515

SHIELD

15

6905572

PIVOT

16

6905573

ROD

17

6905574

MOUNT

18

6905641

COVER

19

6905797

CRANK

20

6905820

BUSHING

21

6905821

WASHER

22

7176948

BUSHING

23

7189380

HANDLE

24

FOAM NLA - 18.7'' (475 mm) long - Order Ref. 25

25

6906931

SEAL bulk - sold per foot

26

7189905

BUSHING, SPACER

26

7241005

BUSHING, SPACER

27

7189954

PIN, LOCK

28

7192393

HOUSING, W/A

29

7192402

COVER

30

7192825

PLATE, RETAINER

31

7192826

PLATE, RETAINER

32

7192827

SPACER

33

7192828

PLATE, RETAINER

34

7192829

SPACER

35

7192830

SLIDE

36

7192831

SLIDE

37

7192832

PLATE, RETAINER

38

10H35

FITTING, GREASE 10

39

14J3112

PIN

40

17C1236

BOLT

41

17C1016

BOLT

42

17C824

BOLT 5

42

31C824

BOLT 10

43

1F416

PIN

44

22J12

RING, SNAP

45

22J16

SNAP RING

46

25E18

WASHER

47

25G616

SCREW

48

29E10

WASHER

49

31C1248

BOLT

50

31C1256

BOLT Was 31C1252 - B

51

31C610

BOLT

52

31C616

SCREW

53

31C624

BOLT

54

53D12

NUT

55

61D10

NUT

56

61D8

NUT 5

56

53D8

NUT

57

73G828

BOLT

58

83D6

NUT 5

59

6905612

KIT Ref. 60-65

60

17C1464

BOLT

61

25E29

WSHR

62

6905607

BUSHING

63

6905610

WHEEL

64

85D14

NUT

65

6901027

INSTRUCTIONS

66

6685015

TOOL, SPECIAL

67

CARRIER, MOTOR See Illustration PLANER/ B22494A

68

MOTOR, DRIVE See Illustration PLANER/ B18103C

69

49C1024

BOLT

70

84D12

NUT

71

DRUM See Illustration PLANER/ NA2853

72

6905375

HINGE

73

7192407

COVER

74

1547283

LATCH ASY

74

1F308

PIN, COTTER if equipped

75

619021

WASHER, 5
