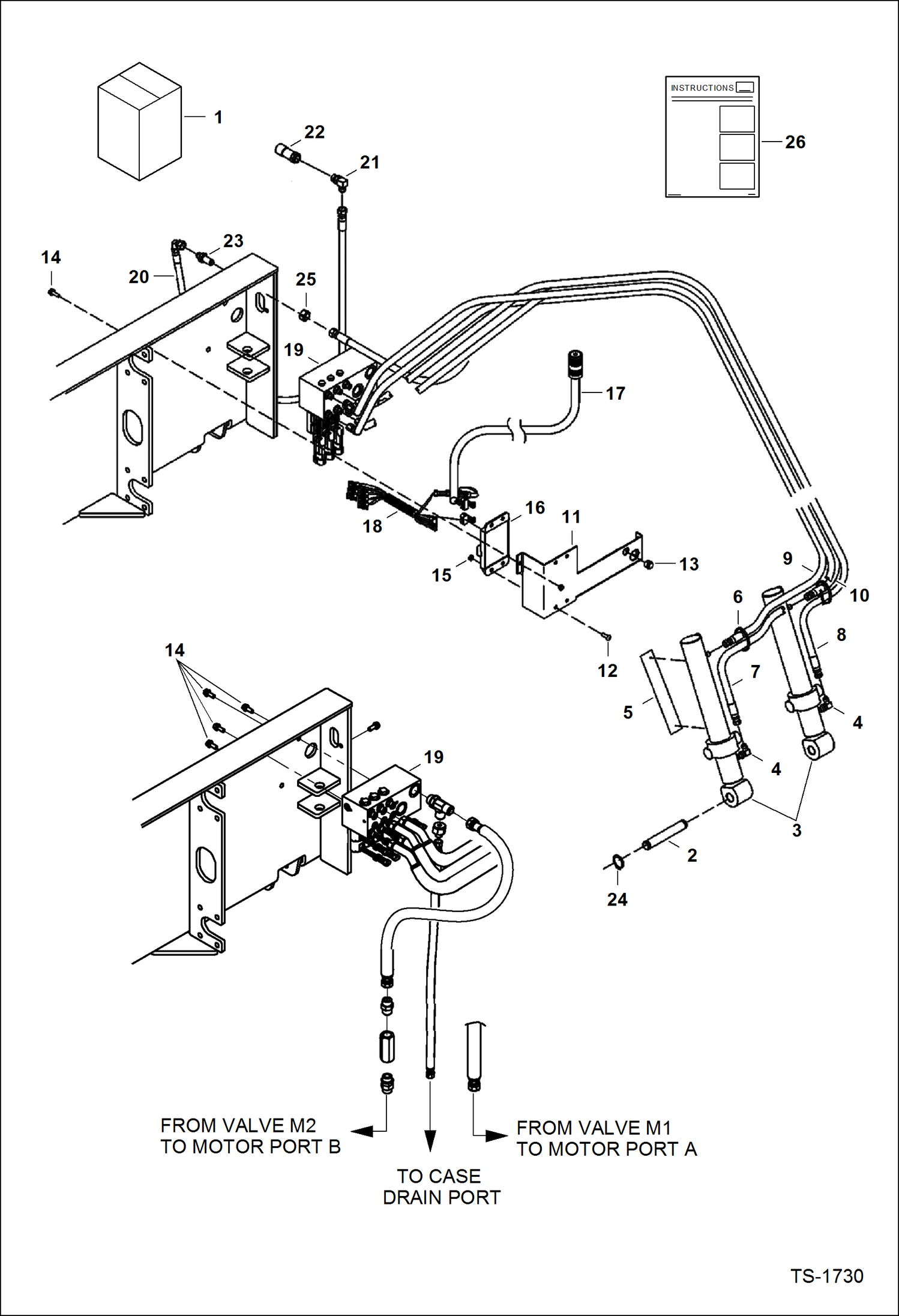

Запчасти Bobcat PLANERS PLANER (Hydraulic Upgrade Depth Control Kit W/Case Drain) (Standard Flow Planer) (14 231200101 & Above) Loader

1

KIT NLA - depth control - Ref. 2-19, 24 & 26 - Order components - Was SALES #6905992 - A

2

6713964

PIN, PIVOT

3

6680632

CYLINDER See Illustration PLANER/ B22496C See Illustration PLANER/ TS1489B Was 6801313 - B,D

4

17KB0606

FITTING

4

79K6

O RING 10

5

6715662

DECAL depth

6

6624289

STRAP, TIE

7

6716336

HOSE, HYD

8

6716333

HOSE, HYD

9

6716334

HOSE, HYD

10

6716335

HOSE, HYD

11

6905873

COVER, VALVE

12

25G616

SCREW

13

6675128

CAP

14

35C616

BOLT 5

15

97D6

NUT 10

16

6678675

CONTROLLER, ACD Was 6676514 - A

17

6725385

HARNESS 7-pin

18

6719694

HARNESS ACD to valve

19

6669981

VALVE, CONTROL See Illustration PLANER/ B18102B

20

6716341

HOSE not in kit

21

17KB0808

FITTING, HYD ELBOW not in kit - Was 17KN00006B - A

22

6667805

COUPLER, FF FEMALE not in kit - straight

23

45K6

CONNECTR not in kit - Was 45KN00006B - A

24

1320431

RING, SNAP

25

86F6

NUT not in kit

26

6901206

INSTRUCTIONS
