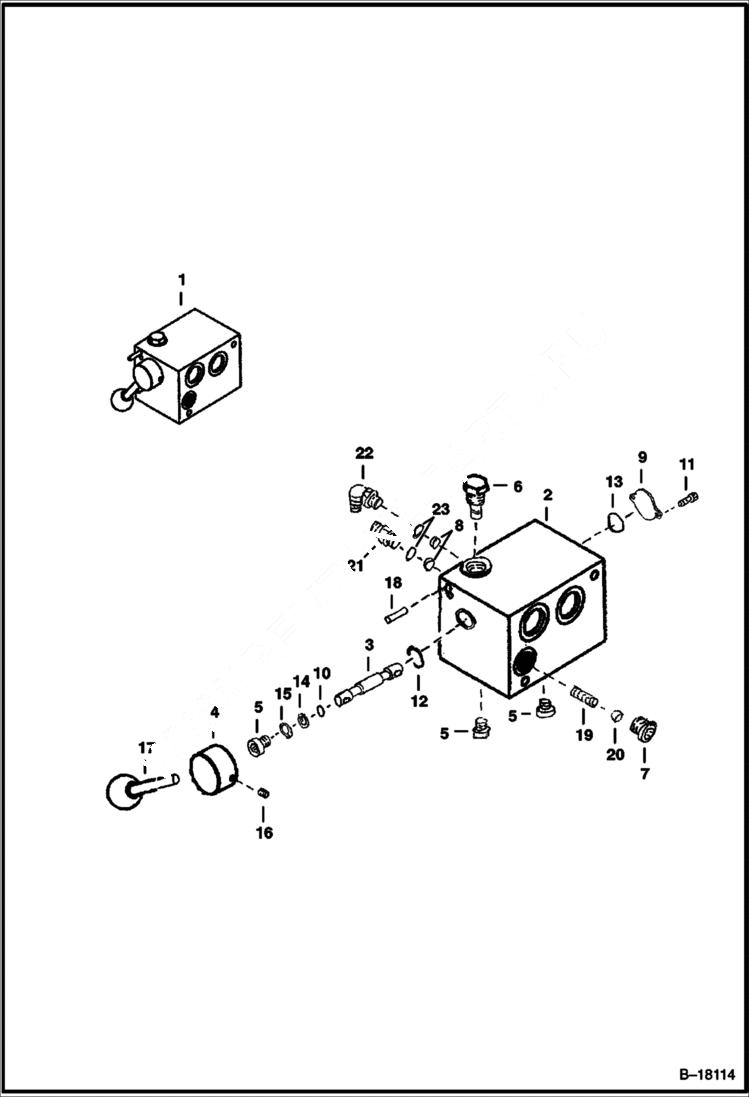

Запчасти Bobcat PLANERS PLANER (Selector Valve) (Standard Flow Planer) (14 231200101 & Above) Loader

1

6905874

VALVE, SELECTOR W/Ref. 2 - 23

2

BLOCK NSS - Order Ref. 1 - Was 6675962 - A

3

6675961

SPOOL

4

6675960

CAP

5

6669620

PLUG

5

O-RING NSS - Order 6669620 Plug

6

6664026

VALVE, CHECK

6

6672515

KIT, SEAL Was 6664033 - A

7

6674548

PLUG

8

6675959

ORIFICE .030 dia

9

6675963

PLATE cover

10

6675958

O-RING

11

6675957

BOLT

12

6675956

O-RING

13

6675955

O-RING

14

6675954

WASHER

15

6675953

SNAP RING

16

6675952

SET SCREW

17

6675964

HANDLE

18

6675951

STOP PIN

19

6675950

SPRING

20

6675949

POPPET

21

6673985

ADAPTER

22

6673987

ELBOW

23

79K6

O RING 10
