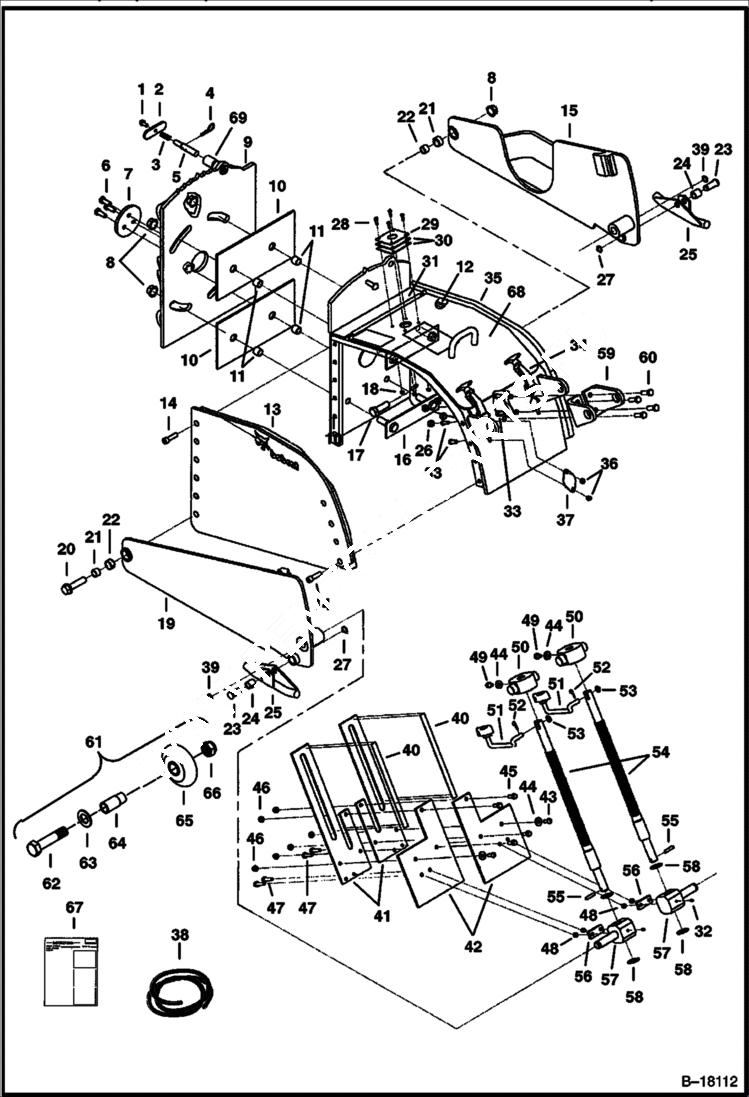

Запчасти Bobcat PLANERS PLANER (Housing Group) (Standard Flow Planer) (14 231200101 & Above) Loader

1

35C612

BOLT

2

6905043

HANDLE

3

6714639

SPRING

4

6648587

PIN, SNAP

5

6905042

PIN

6

17C820

BOLT

7

6713557

BRACKET

8

53D12

NUT

9

6905382

MOUNT ASSY

10

6905384

BEARING

11

6713965

BUSHING

12

SEAL NSS - 22''(559mm) long - Order Ref. 38

13

6905641

COVER

14

73G828

BOLT

15

6713575

MOUNT, SKI L.H.

16

6905383

PLATE

17

17C1236

BOLT

18

97D4

NUT

19

6713574

MOUNT R.H.

20

31C1248

BOLT

21

6713667

BUSHING

22

6713583

BUSHING

23

6714998

PIN

24

6713700

BUSHING

25

6713578

SKID BAR

26

61D8

NUT 5

27

6662745

SNAP RING

28

17C412

BOLT 5

29

6628902

PLATE

30

6664146

SEAL

31

6905375

HINGE

32

10H35

FITTING, GREASE 10

33

17C616

BOLT 5

34

1547283

LATCH ASY

34

1F308

PIN, COTTER if equipped

35

6905371

HOUSING ASSY

36

61D6

NUT 5

37

6667551

COVER

38

6906931

SEAL bulk - Sold Per Foot - Was 6654723 - A

39

1320431

RING, SNAP

40

6905571

DECAL depth

41

6713579

SHIELD cylinder

42

6905515

SHIELD rubber

43

25G616

SCREW

44

25E18

WASHER

45

35C616

BOLT 5

46

97D6

NUT 10

47

35C624

BOLT

48

6544654

BUSHING

49

35C610

BOLT 5

50

6905574

MOUNT

51

6905797

CRANK

52

1F416

PIN

53

6905821

WASHER

54

6905573

ROD

55

14J3128

PIN, ROLL

56

6713581

SPACER

57

6905572

PIVOT

58

6905820

BUSHING

59

6905385

MOUNT

60

17C824

BOLT 5

61

6905612

KIT planer wheel - W/Ref. 62 - 67

62

17C1464

BOLT

63

25E29

WSHR

64

6905607

BUSHING

65

6905610

WHEEL

66

85D14

NUT

67

6901027

INSTRUCTIONS

68

6905372

DOOR

69

6905041

BUSHING
