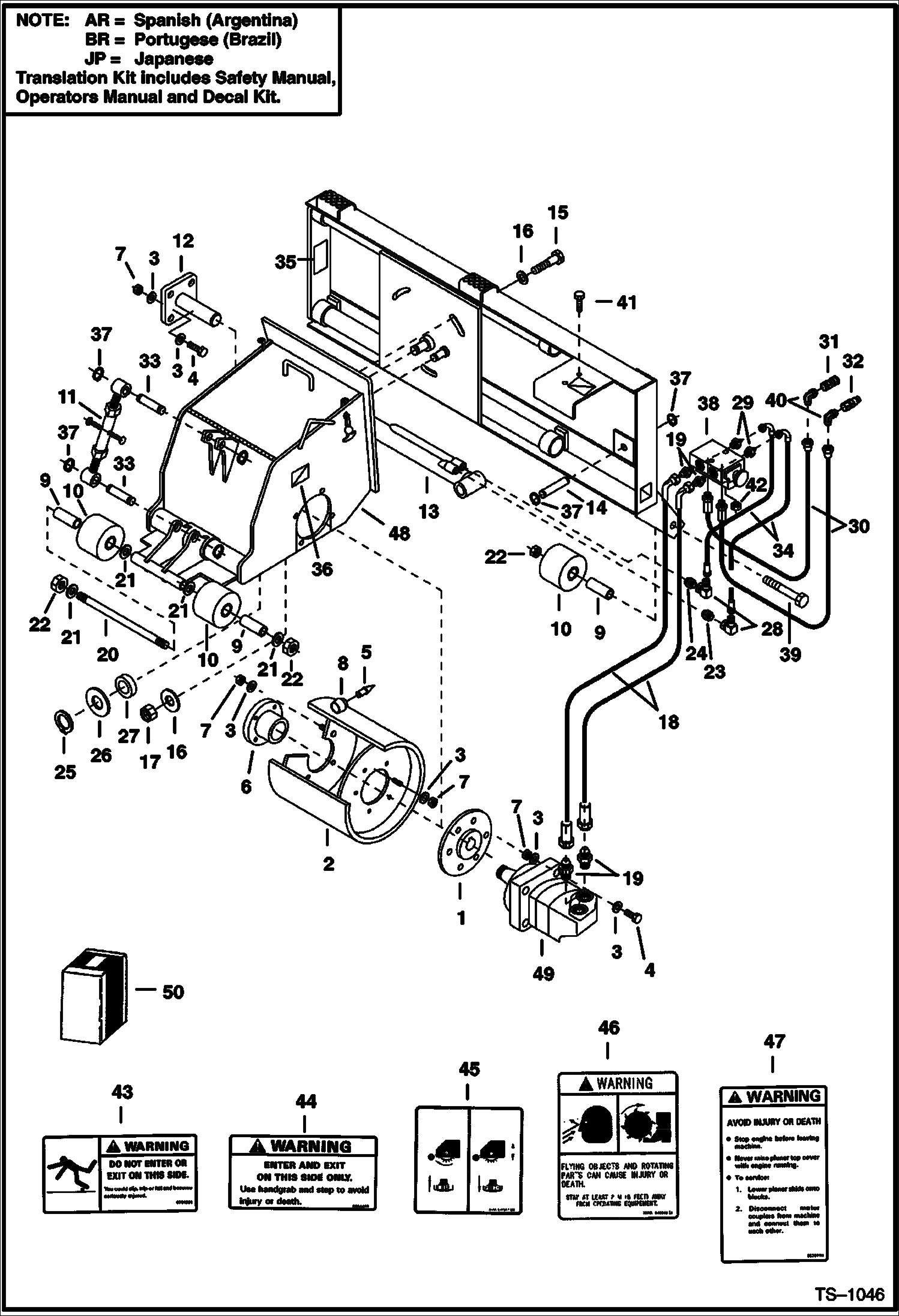

Запчасти Bobcat PLANERS PLANER (Main Frame) (Standard Flow Planer) (178100101 & Above) Loader

1

6669231

HUB

2

6669232

DRUM

3

25E21

WASHER 5

4

17C836

BOLT

5

6672259

BIT std all purpose - sharp point

5

6650137

BIT, TOOTH BLUNT POINT 70 all purpose - blunt point for longer life

5

6650138

BIT, TOOTH CARBIDE 70 concrete

5

6659946

BIT, TOOTH CARBIDE heavy duty

6

6669234

BEARING

7

86D8

NUT

8

6634443

HOLDER, BIT Was 6664241 - A

9

6664251

BUSHING 3.50''

9

6677910

BUSHIING 3.75''

10

6669235

WHEEL

11

6669236

JACK

12

6669237

SHAFT

13

6664253

CYLINDER See Illustration PLANER/ B14029

14

6664256

PIN

15

17C1040

BOLT

16

27E10

WASHER

17

86D10

NUT

18

6669238

HOSE

19

15K8

FITTING

20

6669239

BOLT

21

27E16

WASHER

22

85D16

LOCKNUT

23

6665275

ADAPTER

24

15K5

FITTING

25

6664237

SNAP RING

26

27E32

WASHER

27

6669240

BUSHING

28

11K5

FITTING

29

6578812

ADAPTER

30

6669241

HOSE

31

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

32

6674688

COUPLER, FF MALE straight - Was 6667808 - A

32

6679841

SEAL Was 6672026 - A

33

6669242

PIN

34

6664339

HOSE

35

6692879

DECAL pinch - Was 6705609 - A

36

6712049

DECAL keep clear - Was 6669243 - A

37

6664235

RETAINING RING

38

6662062

VALVE See Illustration PLANER/ TS1151

39

17C1696

BOLT

40

17K8

FITTING

41

17C644

BOLT

42

85D6

NUT, 5

43

6701391

DECAL, EXIT

44

6594488

DECAL, WARNING

45

6711967

DECAL

46

6712049

DECAL

47

6578779

DECAL, WARNING

48

6669419

FRAME

49

MOTOR See Illustration PLANER/ B14789

50

6716757AR

KIT decal - SEE NOTE

50

6716757BR

KIT decal - SEE NOTE

50

6716757JP

KIT decal - SEE NOTE

50

6716758AR

KIT translation - SEE NOTE

50

6716758BR

KIT translation - SEE NOTE
