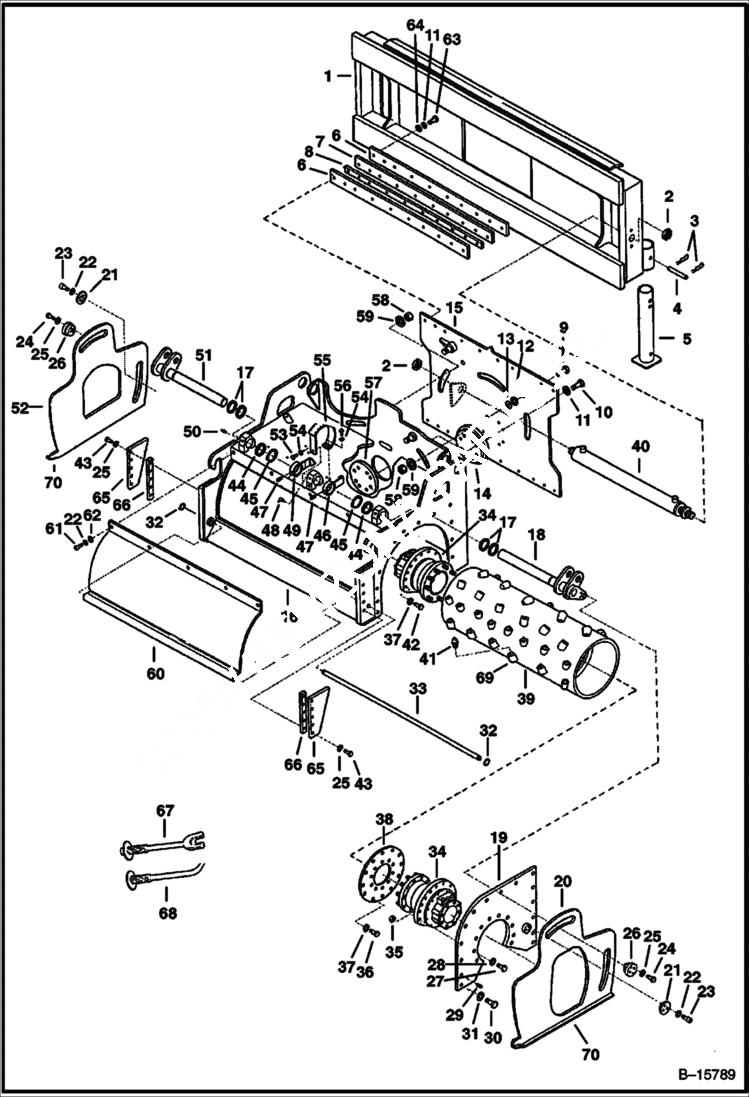

Запчасти Bobcat PLANERS PLANER (Housing Group) (40 9914) Loader

1

6676875

BOBTACH FRAME

2

6676733

NUT

3

6676876

PIN

4

6676734

PIN

5

6676735

STAND

6

6676736

GUIDE

7

6676737

GUIDE

8

6676738

GUIDE

9

6676739

BOLT

10

6676740

BOLT

11

6676741

WASHER

12

6676742

WASHER

13

6676743

WASHER

14

6676744

PIVOT

15

6676745

PLATE

16

6676746

HOUSING

17

6676747

SPACER

18

6676748

SHAFT

19

6676749

MOUNT

20

6676750

COVER, DRUM PLANER

21

6676751

FLANGE

22

6676752

WASHER

23

6676753

BOLT 12mm x 45mm

24

6676754

BOLT 8mm x 40mm

25

6676755

WASHER

26

6676756

FLANGE

27

6676757

BOLT

28

6676758

WASHER

29

6676759

PIN dowel

30

6676760

BOLT

31

6676761

WASHER

32

6676762

RING retaining

33

6676873

ROD

34

6676792

MOTOR ASSY See Illustration PLANER/ B15790

35

6676763

NUT

36

6676764

BOLT

37

6676765

WASHER

38

6676766

FLANGE

39

6676767

DRUM

40

6676827

CYLINDER See Illustration PLANER/ B15792 SIDE SHIFT

41

6672259

BIT std all purpose - sharp point

41

6650137

BIT, TOOTH BLUNT POINT 70 all purpose - blunt point for longer life

41

6650138

BIT, TOOTH CARBIDE 70 concrete

41

6659946

BIT, TOOTH CARBIDE heavy duty

42

6676768

BOLT

43

6676791

BOLT

44

6676769

SPACER

45

6676770

RING, RETAINING

46

6676771

MOUNT

47

6676772

FITTING, GREASE

48

6676773

FITTING, GREASE

49

6676774

MOUNT

50

6676775

FITTING, GREASE

51

6676776

SHAFT

52

6676777

COVER, DRUM PLANER

53

6676778

BOLT

54

6676779

WASHER

55

6676780

BRACKET

56

6676781

BOLT

57

6676782

PLATE pivot

58

6676783

NUT

59

6676784

WASHER

60

6676874

COVER, DRUM PLANER

61

6676785

BOLT

62

6676786

WASHER

63

6676787

BOLT

64

6676788

WASHER

65

6676789

PLATE

66

6676790

SHIM

67

6678073

TOOL

68

6678074

TOOL

69

6685551

HOLDER, TOOTH Was 6634443 - B

70

6696959

PLATE skid - weld on
