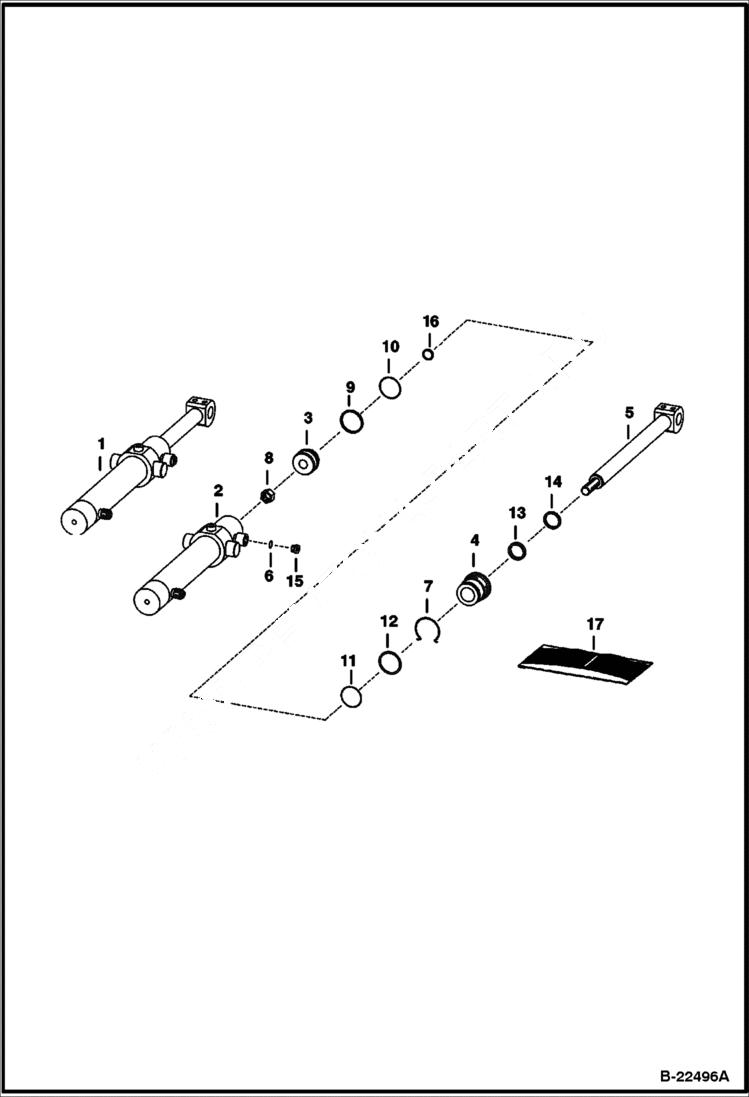

Запчасти Bobcat PLANERS PLANER (Depth Control Cylinder) (Surface Planer) (16 231100101 & Above) Loader

1

6680632

CYLINDER Ref. 2-16 - Columbus Hydraulics

2

6684462

CASE

3

6684459

PISTON

4

6684458

HEAD

5

6684461

ROD

6

95K6

O'RING

7

6674266

RING, RETAINING Was 6684460 - A

8

6673617

NUT Was 6684456 - A

9

WEAR RING NSS

10

SEAL NSS

11

SEAL NSS

12

BACKUP WASHER NSS

13

SEAL NSS

14

WIPER SEAL NSS

15

90KV5

PLUG W/Ref. 6

16

O-RING NSS

17

6684463

SEAL KIT W/Ref. 9 - 14 & 16
