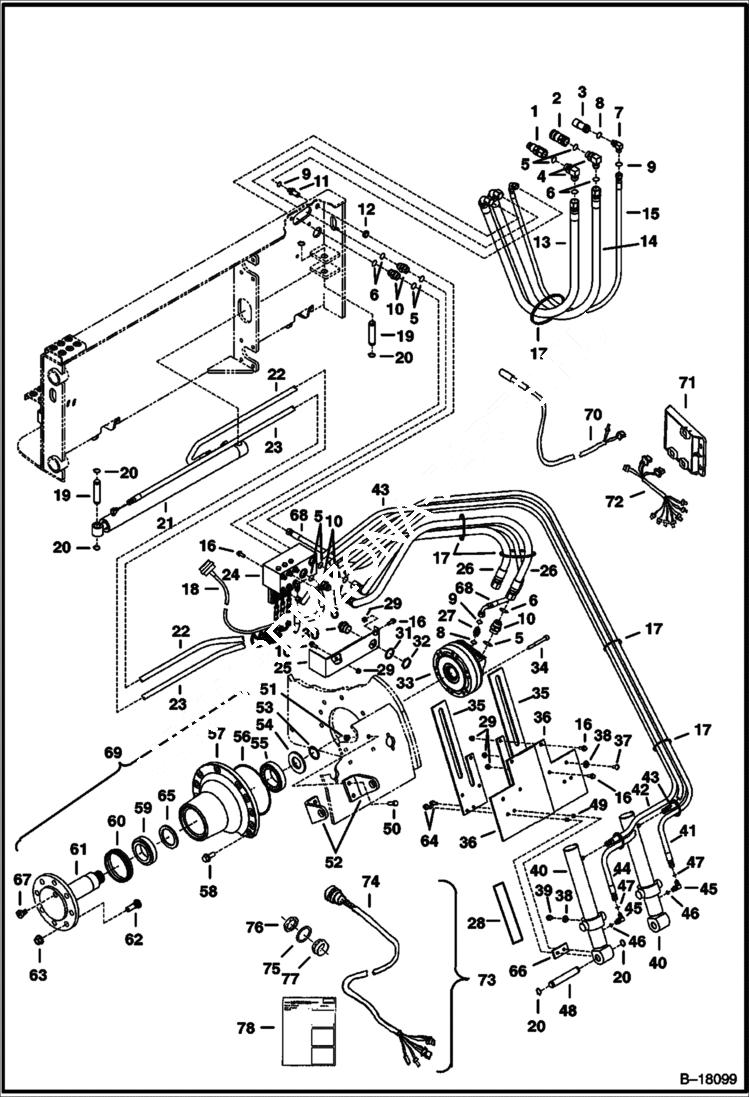

Запчасти Bobcat PLANERS PLANER (Hydraulic Circuitry) (Surface Planer) (16 231100101 & Above) Loader

1

6674688

COUPLER, FF MALE straight - 117,3 mm (4.62'') long - Was 6667808 - A

1

6688454

COUPLER, FF MALE straight - high flow - 83,6 mm (3.29'') long

2

6672960

COUPLER, FF FEMALE straight - Faster #2FF112-34SAE-FL

2

6687636

COUPLER, FF FEMALE straight - high flow - Faster #3FF112-34SAE-F

3

6667805

COUPLER, FF FEMALE straight - case drain

4

17KB1212

FITTING, HYD ELBOW 90 degree elbow (shown) - Was 17KN00008B - A

4

15KB1212

FITTING, HYD CONNECTOR straight adapter

5

99K12

O RING

6

97K12

O'RING flared end

7

17KB0808

FITTING, HYD ELBOW 90 degree elbow (shown) - Was 17KN00006B

7

15KB0808

FITTING, HYD CONNECTOR straight adapter

8

99K8

O-RING

9

97K8

O-RING

10

15KB1212

FITTING, HYD CONNECTOR Was 15KN00008B - A

11

45K6

CONNECTR bulkhead - Was 45KN00006B - A

12

86F6

NUT

13

6716338

HOSE Use with 90 degree elbow

13

7179465

HOSE, HYD Use with straight adapter

14

6716339

HOSE Use with 90 degree elbow

14

7178854

HOSE, HYD Use with straight adapter

15

6716341

HOSE Use with 90 degree elbow

15

7178917

HOSE, HYD Use with straight adapter

16

35C616

BOLT 5

17

6624289

STRAP, TIE

18

6715160

HARNESS, 14-PIN

19

6714997

PIN

20

1320431

RING, SNAP

21

7108418

CYLINDER See Illustration PLANER/ TS1147A - side shift - Was 6587878 - A

22

6707443

HOSE

23

6716337

HOSE

24

6669981

VALVE, CONTROL See Illustration PLANER/ B18102

25

COVER NLA - valve - Order 6905873 - Was 6715658 - A

25

6905873

COVER, VALVE Use W/ACD

26

7170589

HOSE, HYD Was 6905501 - A

27

15KB0808

FITTING, HYD CONNECTOR Was 15KN00006B - A

28

6905570

DECAL depth

29

97D6

NUT 10

30

6667569

CONNECTOR, RECEPTACLE For 14-pin - Was 6664039 - A

30

6675128

CAP For 7-pin

31

6664037

WASHER

32

6664036

NUT

33

MOTOR See Illustration PLANER/ B18103

34

3GM1290

BOLT

35

6713579

SHIELD cylinder

36

6713582

SHIELD rubber

37

25G616

SCREW

38

25E18

WASHER

39

35C610

BOLT 5

40

6801313

CYLINDER See Illustration PLANER/ TS1489A - depth control

41

6716333

HOSE, HYD

42

6716334

HOSE, HYD

43

6716335

HOSE, HYD

44

6716336

HOSE, HYD

45

17KB0606

FITTING Was 17KN00005B - A

46

99K6

O RING

47

97K6

O RING

48

6713964

PIN, PIVOT

49

6544654

BUSHING

50

17C824

BOLT 5

51

61D8

NUT 5

52

6713580

MOUNT

53

6672822

RING, RETAINER W/pin holes

53

7176088

RING, RETAINER W/O pin holes

54

6905108

THRUST WASHER

55

6671955

BEARING CONE

55

6671956

BEARING CUP

56

25K30816

O-RING Was 25K30812 - B,D

57

6905109

CARRIER bearing

58

49C1024

BOLT

59

6648780

BEARING CONE

59

6648782

BEARING CUP

60

6670237

SEAL

61

SHAFT NLA - output - Use W/Ref. 53 (6672822 retaining ring W/pin holes) - Order 7191373 shaft & Ref. 53 (7176088 retaining ring W/O pin holes) - Was 6905110 - A

61

7191373

SHAFT output - Use W/Ref. 53 (7176088 retaining ring W/O pin holes) - Whenever the shaft is replaced or removed, Also Order Ref. 53 (7176088 retaining ring W/O pin holes)

62

6592304

BOLT

63

84D12

NUT

64

35C624

BOLT

65

6674123

SEAL pressure

66

6713581

SPACER

67

90K3

PLUG Was 90KV3 - D

68

6905502

HOSE, HYD

69

6905613

CARRIER ASSY W/Ref. 53-55, 57, 59-62, 65 & 67

69

6988438

OIL, BOBCAT GEAR AND BEARING, 16OZ

70

6719853

HARNESS 7-pin - Was 6725385 - B

71

6678675

CONTROLLER, ACD Was 6676514 - A

72

6719694

HARNESS ACD to valve

73

6725383

KIT 14-pin harness conversion - converts 7-pin planers to be used with 14-pin loader - W/Ref. 74-78

74

6719697

HARNESS 14-pin conversion

75

6664037

WASHER

76

6664036

NUT

77

6673680

RECEPTACLE, TWIST-LOC

78

6901005

INSTRUCTIONS
