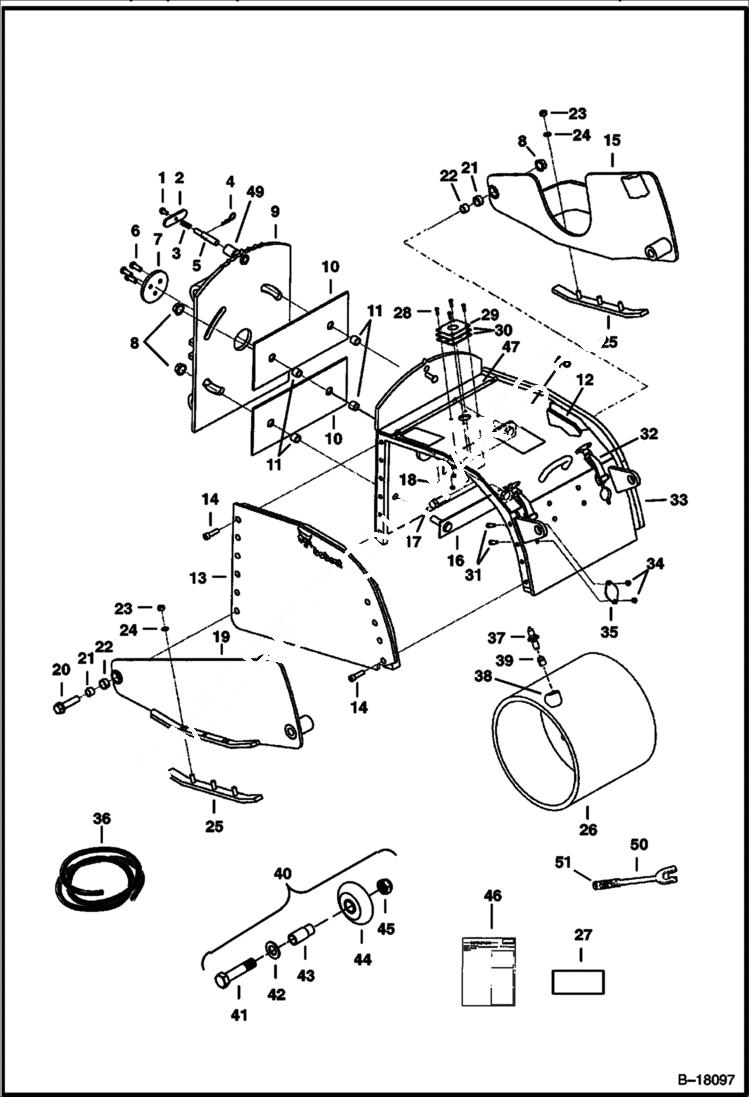

Запчасти Bobcat PLANERS PLANER (Housing Group) (Surface Planer) (16 231100101 & Above) Loader

1

35C612

BOLT

2

6905043

HANDLE

3

6714639

SPRING

4

6648587

PIN, SNAP

5

6905042

PIN

6

17C820

BOLT

7

6713557

BRACKET

8

53D12

NUT

9

6714256

MOUNT ASSY

10

6713820

PLATE, BEARING

11

6713965

BUSHING

12

SEAL NSS - 22'' (559 mm) long - Order Ref. 36

13

6905641

COVER

14

73G828

BOLT

15

6905603

MOUNT LH

16

6713952

MOUNT

17

17C1236

BOLT

18

97D4

NUT

19

6905604

MOUNT RH

20

31C1248

BOLT

21

6713667

BUSHING

22

6713583

BUSHING

23

61D8

NUT 5

24

4E8

WASHER

25

6905617

SKID BAR

26

DRUM SALES #6906320 - 16'' surface

27

DECAL surface drum

28

17C412

BOLT 5

29

6628902

PLATE

30

6664146

SEAL

31

17C616

BOLT 5

32

1547283

LATCH ASY

32

1F308

PIN, COTTER if equipped

33

6905647

HOUSING ASSY

34

61D6

NUT 5

35

6667551

COVER

36

6906931

SEAL Sold Per Foot - Was 6654723 - A

37

6906904

BIT, CARBIDE later models have 185 bits - Was 6906023 - A

38

6906906

HOLDER, BIT later models have 185 holders - Was 6906025 - A

39

6906024

CLIP later models have 185 clips

40

6905612

KIT planer wheel - W/Ref. 41 - 46

41

17C1464

BOLT

42

25E29

WSHR

43

6905607

BUSHING

44

6905610

WHEEL

45

85D14

NUT

46

6901027

INSTRUCTIONS

47

6713560

HINGE

48

6905661

DOOR

49

6905041

BUSHING

50

6958332

TOOL tooth removal

51

7166126

HANDLE, GRIP
