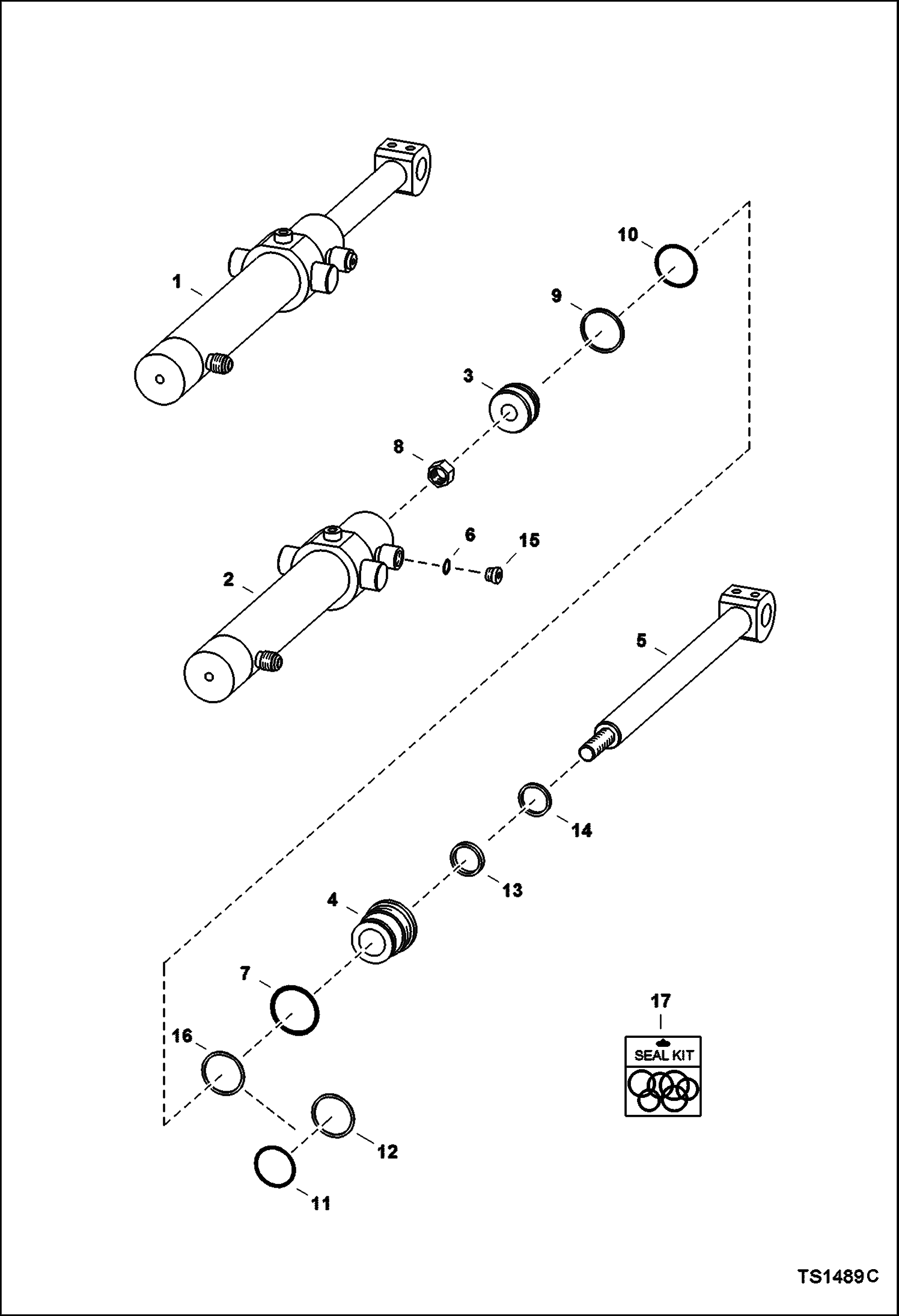

Запчасти Bobcat PLANERS PLANER (Depth Control Cylinder) (Curb Planer) (15 234000101 & Above) Loader

1

6801313

CYLINDER Ref. 2-15

2

6801318

CASE

3

6661694

PISTON W/Ref. 9 & 10 - with non - replaceable wear sleeves

4

6539323

HEAD

5

6801319

ROD

6

95K6

O'RING

7

82K136

O-RING Was 58K136 - B

8

92D12

NUT

9

6516231

SEAL

10

54K30118

O-RING

11

54K40124

O-RING

12

73K224

RING back-up

13

6667324

SEAL

14

6665208

SEAL wiper

15

90KV5

PLUG W/Ref. 10

16

7008781

SEAL, QUAD

17

7137769

KIT, SEAL Ref. 7-10, 13, 14, & 26 - Was 6803329
