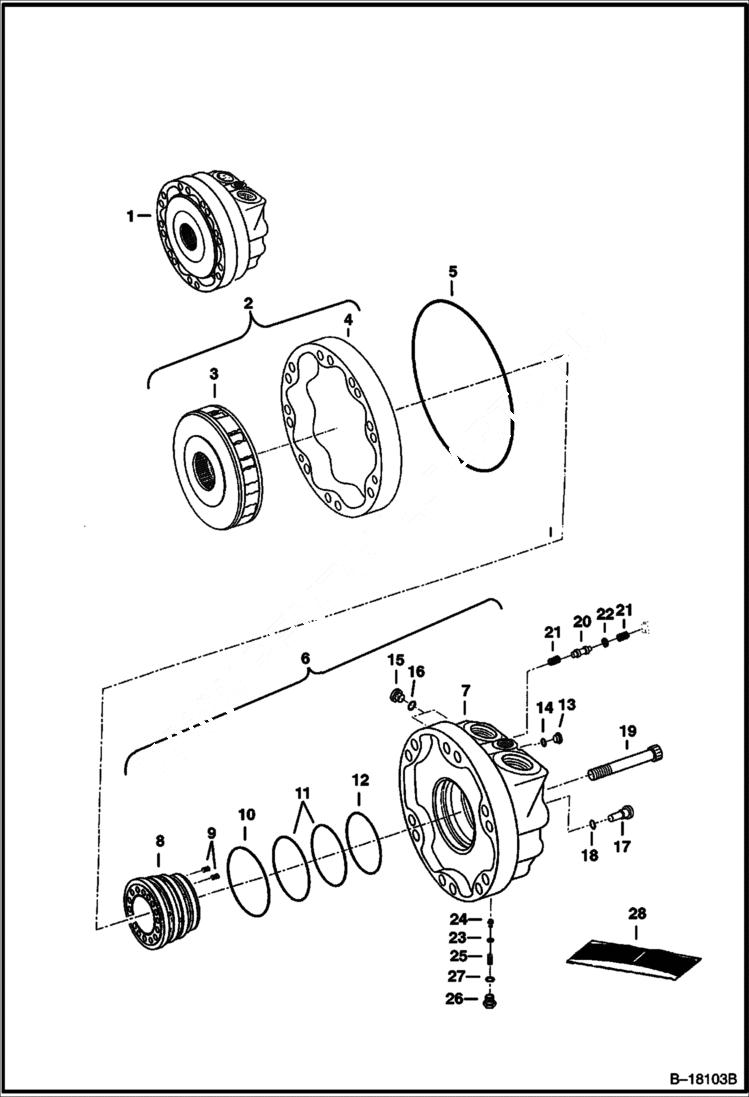

Запчасти Bobcat PLANERS PLANER (Motor) (Curb Planer) (15 234000101 & Above) Loader

1

6677178

MOTOR W/Ref. 2 - 27

2

6690158

ROTOR GROUP W/Ref. 3 & 4 - Was 6675222 - D

3

6690158

ROTOR GROUP Was 6675222 - D

4

6666360

CAM Was 6675874 - A

5

6674029

SEAL

6

6676948

HOUSING ASSY W/Ref. 7 - 18

7

6676951

HOUSING

8

6674184

RING

9

6674037

SPRING

10

6675227

SEAL

11

6675228

SEAL

12

6675229

SEAL

13

6676952

PLUG

14

6676023

O-RING

15

6676024

PLUG

16

6675869

O-RING

17

6674340

PIN Was 7020788 - A

18

6671784

O-RING

19

6687081

SCREW Was 6675021 - A

20

6675866

SPOOL

21

6674841

SPRING

22

6675867

WASHER

23

6674343

SHIM

24

6675224

POPPET

25

6674344

SPRING

26

6674345

PLUG

27

6675869

O-RING

28

6676949

SEAL KIT W/Ref. 5, 10-12, 18 & 27
