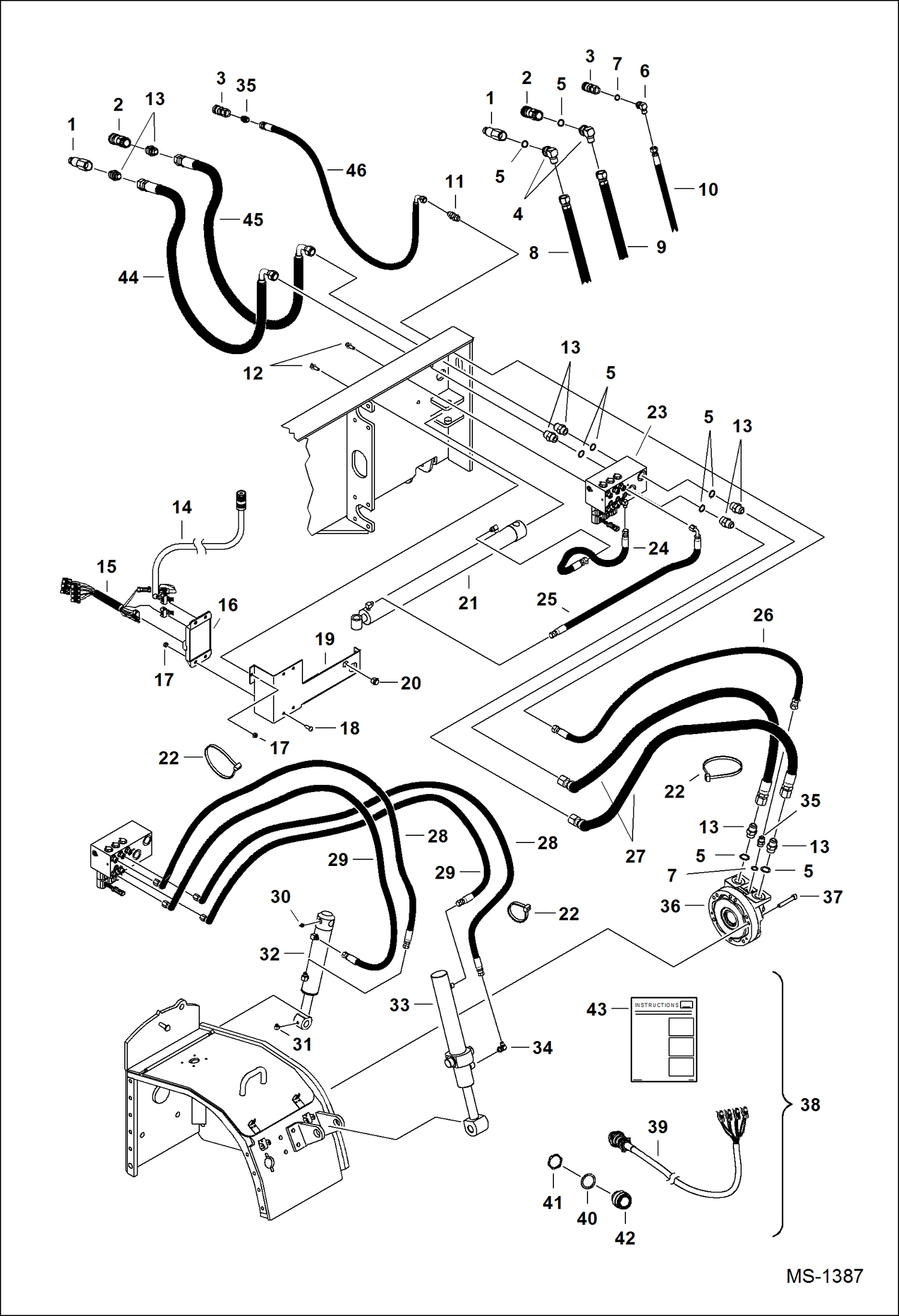

Запчасти Bobcat PLANERS PLANER (Hydraulic Circuitry) (Curb Planer) (15 234000101 & Above) Loader

1

6674688

COUPLER, FF MALE straight - 117,3 mm (4.62'') long

1

6688454

COUPLER, FF MALE straight - high flow - 83,6 mm (3.29'') long

2

6672960

COUPLER, FF FEMALE straight - Faster #2FF112-34SAE-FL

2

6687636

COUPLER, FF FEMALE straight - high flow - Faster #3FF112-34SAE-F

3

6667805

COUPLER, FF FEMALE straight

4

17KB1212

FITTING, HYD ELBOW Was 17KN00008B - A

5

99K12

O RING

6

17KB0808

FITTING, HYD ELBOW Was 17KN00006B - A

7

99K8

O-RING

8

6716338

HOSE Use with 90 degree elbows

9

6716339

HOSE Use with 90 degree elbows

10

6716341

HOSE Use with 90 degree elbows

11

45K6

CONNECTR Was 45KN00006B - A

12

35C616

BOLT 5

13

15KB1212

FITTING, HYD CONNECTOR Was 15KN00008B - A

14

6719853

HARNESS 7-pin - Was 6725385 - B

15

6719694

HARNESS ACD to Valve

16

6678675

CONTROLLER, ACD

17

97D6

NUT 10

18

25G616

SCREW

19

6905873

COVER, VALVE

20

6675128

CAP

21

7108418

CYLINDER See Illustration PLANER/ TS1147C SIDE SHIFT - Was 6587878 - A

22

6624289

STRAP, TIE

23

6669981

VALVE, CONTROL See Illustration PLANER/ B18102D

24

6707443

HOSE

25

6716337

HOSE

26

6958293

HOSE

27

7170751

HOSE, HYD Was 6958292 - A

28

6716336

HOSE, HYD

29

6716334

HOSE, HYD

30

10H25

FITTING, GREASE 5

31

12H15

FITTING, GREASE 5

32

6538415

CYLINDER See Illustration PLANER/ TS1165 PIVOT

33

6801313

CYLINDER See Illustration PLANER/ TS1489C DEPTH CONTROL

34

17KB0606

FITTING Was 17KN00005B - A

35

15KB0808

FITTING, HYD CONNECTOR Was 15KN00006B - A

36

6677178

MOTOR See Illustration PLANER/ B18103B

37

3GM1290

BOLT

38

6725383

KIT 14-pin harness conversion - converts 7-pin planers to be used with 14-pin loader - W/Ref. 39 - 43

39

6719697

HARNESS 14-pin conversion

40

6664037

WASHER

41

6664036

NUT

42

6673680

RECEPTACLE, TWIST-LOC

43

6901005

INSTRUCTIONS

44

7179465

HOSE, HYD 1727 mm (68'') long - 90 degree fitting (1.0625'' thread) & 1.0625'' thread - Use with straight fittings

45

7178854

HOSE, HYD 1803 mm (71'') long - 90 degree fitting (1.0625'' thread) & 1.0625'' thread - Use with straight fittings

46

7178917

HOSE, HYD 1753 mm (69'') long - 90 degree elbow (.75'' thread) & .75'' thread - Use with straight fittings
