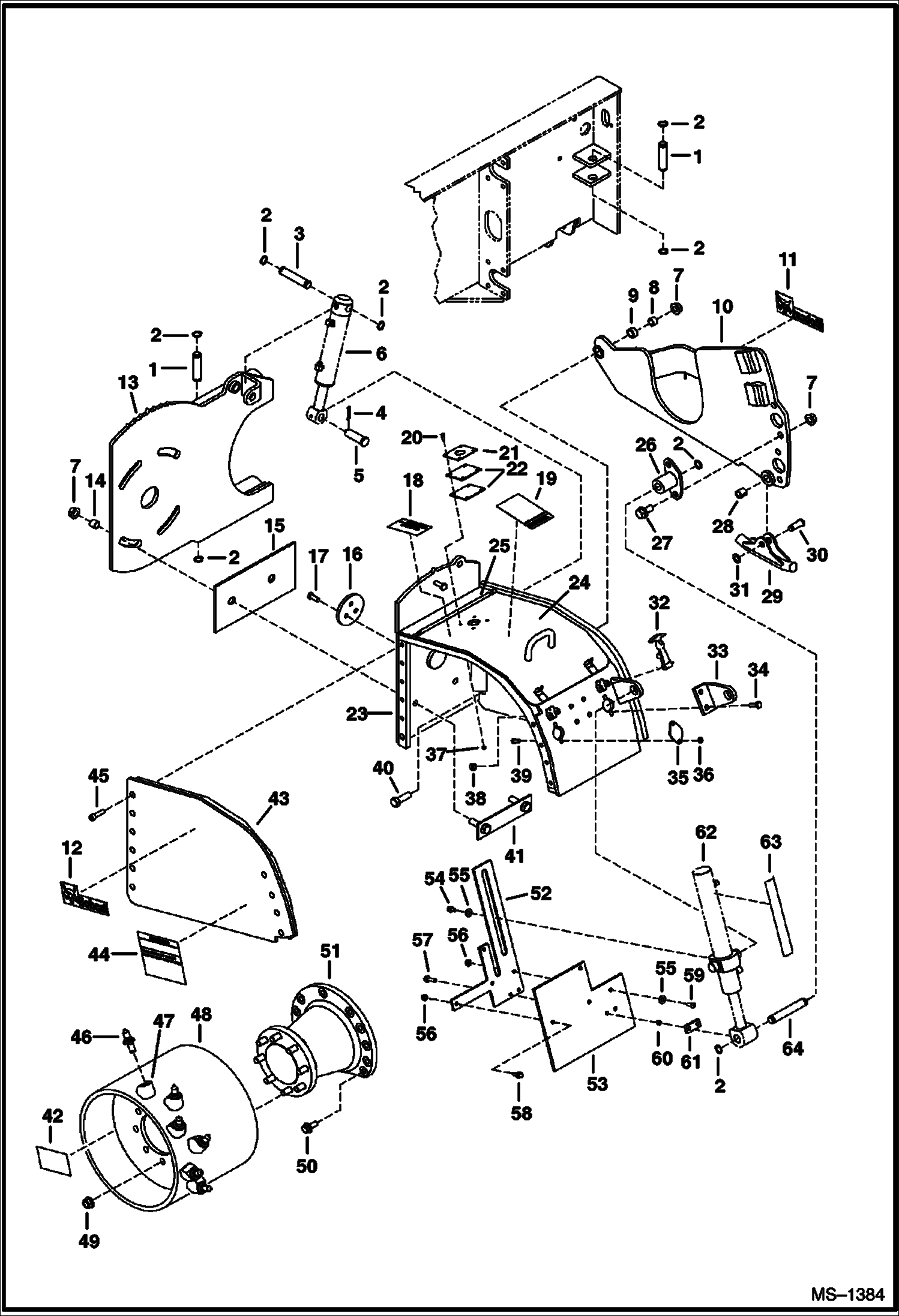

Запчасти Bobcat PLANERS PLANER (Main Frame) (Curb Planer) (15 234000101 & Above) Loader

1

6714997

PIN

2

1320431

RING, SNAP

3

6906958

PIN

4

1F624

PIN

5

6906959

PIN

6

6538415

CYLINDER See Illustration PLANER/ TS1165 PIVOT

7

53D12

NUT

8

6713667

BUSHING

9

6713583

BUSHING

10

6906964

MOUNT

11

6727323

DECAL, LOGO BOBCAT AND HEAD LH

12

6727324

DECAL, LOGO BOBCAT AND HEAD RH

12

7109473

DECAL, LOGO BOBCAT AND HEAD Use on both sides

13

6906949

PIVOT

14

6713965

BUSHING

15

6905384

BEARING

16

6713557

BRACKET

17

17C820

BOLT

18

6594488

DECAL, WARNING

19

6578779

DECAL, WARNING

20

17C412

BOLT 5

21

6628902

PLATE

22

6664146

SEAL

23

6906954

HOUSING

24

6905372

DOOR

25

6905375

HINGE

26

6906966

BUSHING

27

31C1228

BOLT

28

6713700

BUSHING

29

6958144

SKI

30

6714998

PIN

31

6662745

SNAP RING

32

1547283

LATCH ASY

32

1F308

PIN, COTTER if equipped

33

6905385

MOUNT

34

17C824

BOLT 5

35

6667551

COVER

36

61D6

NUT 5

37

97D4

NUT

38

61D8

NUT 5

39

17C616

BOLT 5

40

17C1236

BOLT

41

6905383

PLATE

42

6958134

DECAL, DRUM Use W/Ref. 48

43

6905641

COVER

44

6708822

DECAL, WARNING See Illustration PLANER/ NA6223

44

7130144

DECAL, WARNING See Illustration PLANER/ NA6223 - no-text

45

73G828

BOLT

46

TOOTH NLA - Order 7010631 - Was 6679823 - A

47

6634443

HOLDER, BIT

48

DRUM NLA - Order 6958132 drum - W/Ref. 45, 46 & 47 - Was SALES #7169237 - D

48

6958132

DRUM, PLANER W/Ref. 47

49

84D12

NUT

50

49C1024

BOLT

51

CARRIER ASSY See Illustration PLANER/ B22494

52

6958270

SHIELD

53

6958271

SHIELD

54

35C610

BOLT 5

55

25E18

WASHER

56

97D6

NUT 10

57

35C624

BOLT

58

35C616

BOLT 5

59

25G616

SCREW

60

6544654

BUSHING

61

6713581

SPACER

62

6801313

CYLINDER See Illustration PLANER/ TS1489C DEPTH CONTROL

63

6905571

DECAL

64

6713964

PIN, PIVOT
