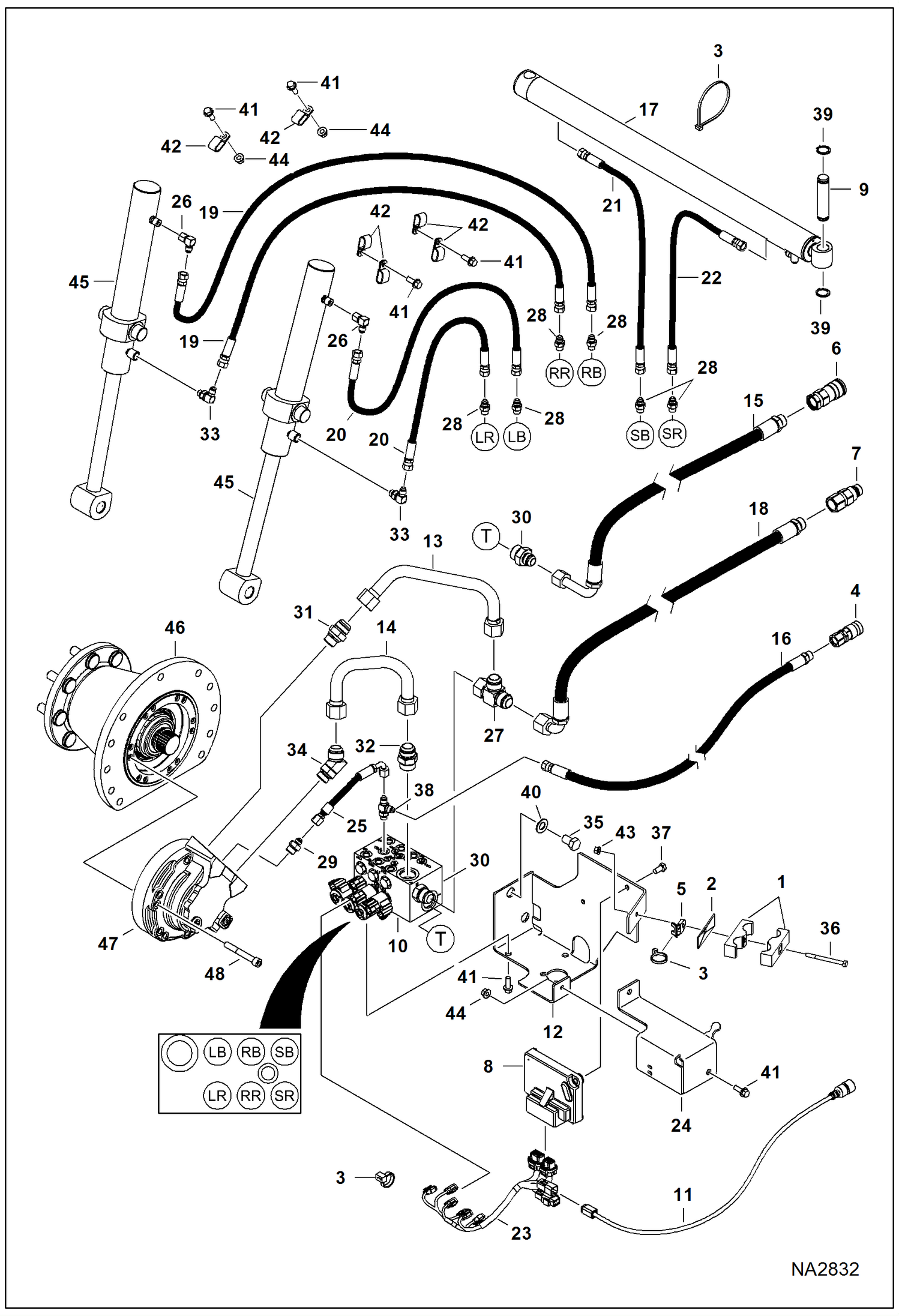

Запчасти Bobcat PLANERS PLANER (Hydraulic Circuitry) (18PLA AKS2) (24PLA AJN7) Loader

1

6595353

CLAMP

2

6595356

PLATE

3

6624289

STRAP, TIE

4

6667805

COUPLER, FF FEMALE straight

5

6679034

MOUNT

6

6687636

COUPLER, FF FEMALE straight

7

6688454

COUPLER, FF MALE straight

8

6697951

CONTROLLER, ACD

9

6714997

PIN

10

7011126

VALVE, CONTROL See Illustration PLANER/ NA2833

11

7150497

HARNESS, INPUT 7-PIN

12

7172348

MOUNT, VALVE

13

7173016

TUBELINE, HYD

14

7173017

TUBELINE, HYD

15

7175610

HOSE, HYD

16

7175611

HOSE, HYD

17

CYLINDER, SIDE SHIFT See Illustration PLANER/ NA2834

18

7176911

HOSE, HYD

19

7176912

HOSE, HYD 24'' planer

19

7192291

HOSE, HYD 18'' planer

20

7176925

HOSE, HYD

21

7176953

HOSE, HYD 24'' planer

21

7192343

HOSE, HYD 18'' planer

22

7176954

HOSE, HYD 24'' planer

22

7192342

HOSE, HYD 18'' planer

23

7177288

HARNESS, PLANER

24

7188726

COVER

25

7197767

HOSE, HYD

26

11K5

FITTING

27

13K10

TEE

28

15KB0606

FITTING, HYD CONNECTOR Was 15KB606 - A

29

15KB608

FITTING, HYD CONNECTOR

30

15KB1216

FITTING, HYD CONNECTOR

31

15KB1612

FITTING, HYD CONNECTOR

32

15KB1616

FITTING, HYD CONNECTOR

33

17KB0606

FITTING Was 17KB606 - A

34

18KB1612

FITTING, HYD ELBOW

35

17C1016

BOLT

36

17C556

BOLT

37

1CM1020

BOLT

38

21KB606

FITTING HYD, TEE

39

22J16

SNAP RING

40

29E10

WASHER

41

31C616

SCREW

42

31H27

CLIP

43

83D5

NUT 5

44

83D6

NUT 5

45

CYLINDER, DEPTH See Illustration PLANER/ B22496B

46

CARRIER, MOTOR See Illustration PLANER/ B22494B

47

MOTOR, HYD See Illustration PLANER/ NA2852
