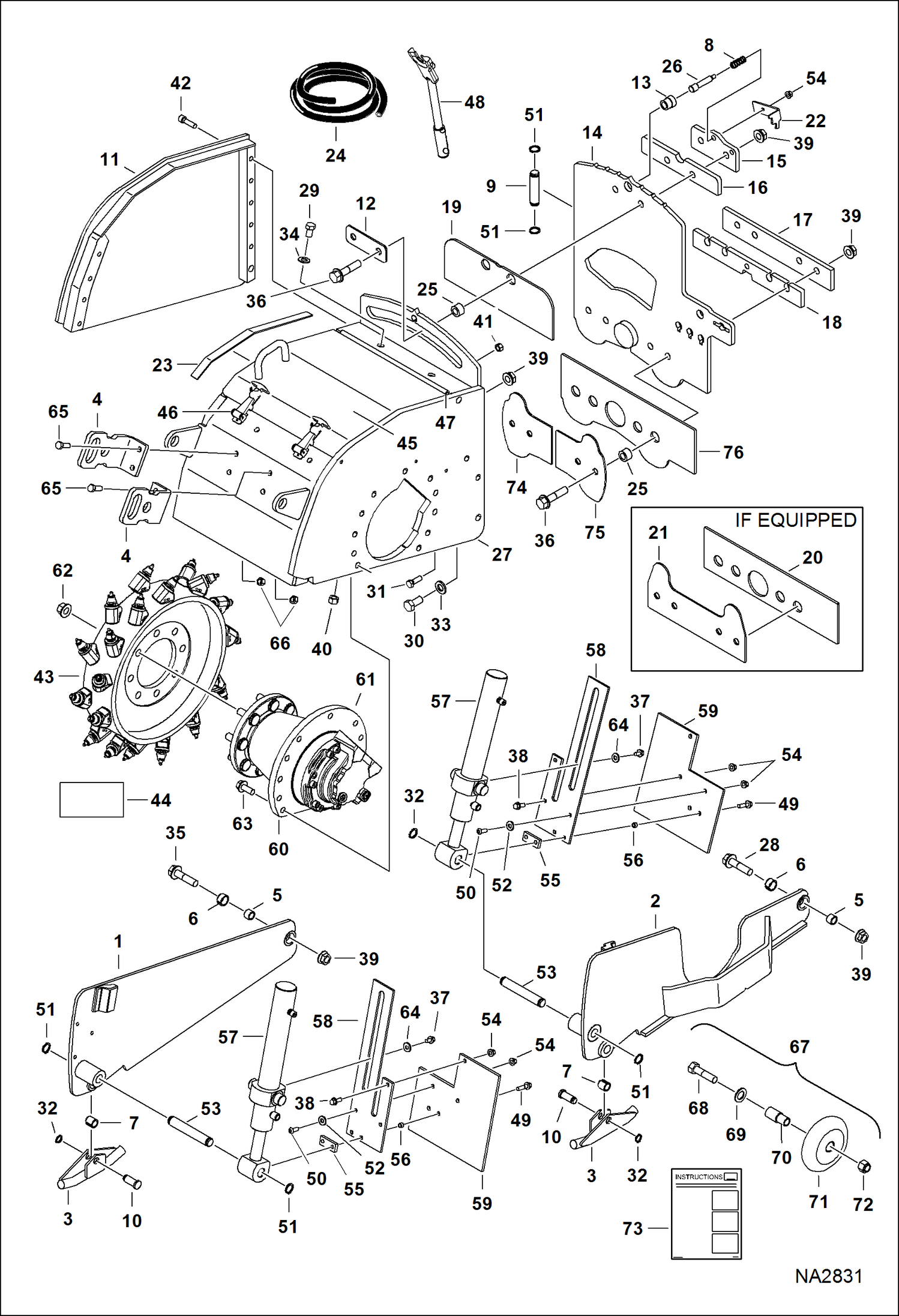

Запчасти Bobcat PLANERS PLANER (Housing) (18PLA AKS2) (24PLA AJN7) Loader
№
Артикул
Название
Примечание
Количество
1
6713574
MOUNT
2
6713575
MOUNT, SKI
3
6713578
SKID BAR
4
6713580
MOUNT
5
6713583
BUSHING
6
6713667
BUSHING
7
6713700
BUSHING
8
6714639
SPRING
9
6714997
PIN
10
6714998
PIN
11
6905641
COVER
12
7176924
PLATE, RETAINER
13
7176948
BUSHING
14
7184382
MOUNT
15
7184736
PLATE, RETAINER
16
7184737
SPACER
17
7184738
PLATE, RETAINER
18
7184739
SPACER
19
7184784
SLIDE
20
7184785
SLIDE
21
7206671
PLATE, RETAINER
22
7189380
HANDLE
23
STRIP, FOAM NLA - 475 mm (18.7'') long - Order Ref. 24
24
6906931
SEAL bulk - sold per foot
25
7189905
BUSHING, SPACER
25
7241005
BUSHING, SPACER
26
7189954
PIN, LOCK
27
7192293
HOUSING, W/A 18'' planer
27
7184770
HOUSING, W/A 24'' planer
28
17C1236
BOLT
30
17C1224
BOLT
31
17C824
BOLT 5
32
22J12
RING, SNAP
33
28E12
WASHER
34
29E10
WASHER
35
31C1248
BOLT
36
31C1256
BOLT Was 31C1252 - B
37
31C610
BOLT
38
31C616
SCREW
40
61D10
NUT
41
61D8
NUT 5
42
73G828
BOLT
43
DRUM See Illustration PLANER/ NA2853
44
DECAL, DRUM See Illustration PLANER/ NA2853
45
7192295
COVER 18'' planer
45
7189804
COVER 24'' planer
46
1547283
LATCH ASY
46
1F308
PIN, COTTER if equipped
47
6713560
HINGE 18'' planer
47
6716202
HINGE 24'' planer
48
6685015
TOOL, SPECIAL bit removal
49
31C624
BOLT
50
25G616
SCREW
51
22J16
SNAP RING
52
25E18
WASHER
53
6713964
PIN, PIVOT
54
83D6
NUT 5
55
6713581
SPACER
56
6544654
BUSHING
57
CYLINDER, DEPTH See Illustration PLANER/ B22496B
58
6713579
SHIELD
59
6905168
SHIELD
59
6713582
SHIELD
60
CARRIER, MOTOR See Illustration PLANER/ B22494B
61
MOTOR, DRIVE HYD See Illustration PLANER/ NA2852
62
84D12
NUT
63
49C1024
BOLT
64
619021
WASHER, 5
65
31C824
BOLT 10
66
53D8
NUT
67
6905612
KIT Ref. 68-73
68
17C1464
BOLT
69
25E29
WSHR
70
6905607
BUSHING
71
6905610
WHEEL
72
85D14
NUT
73
6901027
INSTRUCTIONS
Выбрано товаров: 80
