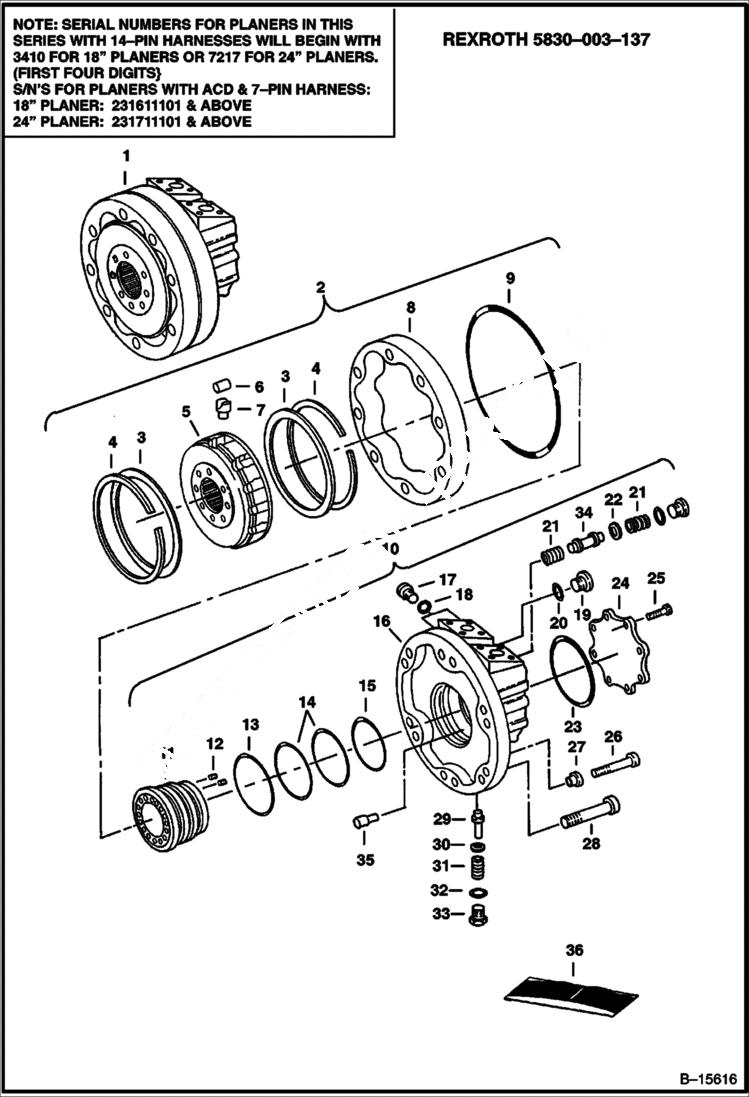

Запчасти Bobcat PLANERS PLANER (Motor) (18 341000329 - 00654) (24 721700161 - 00341) Loader

1

MOTOR See Illustration PLANER/ B15807 NLA - Ref. 2-35 - Rexroth 5830-003-137 - Order 6677178 - Was 6675032 - A

2

6690158

ROTOR GROUP Was 6675222 W/Ref 3, 4, 5, 6, &7 does not include Ref 8 - D

3

6674036

RING

4

SNAP RING NLA - Was 6674035 - A

5

CYLINDER BLOCK NLA - Order Ref. 2 - Was 6674033 - A

6

6674031

ROLLER

7

6674032

PISTON

8

6675091

CAM

9

6674029

SEAL square

10

6675223

HOUSING ASSY W/Ref. 11-35

11

6674184

RING Was 6674185 - A

12

6674037

SPRING

13

6675227

SEAL

14

6675228

SEAL

15

6675229

SEAL

16

7021029

HOUSING rear - also order 6689683 & (2) of 6691100 - Was 6678140 - A

17

6671783

PLUG

18

6671784

O-RING

19

PLUG NLA - Order 6689129 - Was 6671759 - A

20

6671749

O-RING

21

6674841

SPRING Was 6674339 - A

22

6674338

WASHER

23

6675195

SEAL

24

COVER NLA - thin - see S/L 10 May 2000 - Was 6675196 - A

24

6905865

COVER thick

25

BOLT NLA - used with 6675196 thin cover - see S/L 10 May 2000 - Was 6675197 - A

25

1CM1025

BOLT Use with 6905865 thick cover

26

6675225

BOLT

27

6675022

BUSHING

28

6687080

SCREW Was 6675020 - A

29

6675868

POPPET Was 6675224 - A

30

6674343

SHIM

31

6674344

SPRING

32

6671784

O-RING

33

6674345

PLUG

34

6675866

SPOOL Was 6674337 - A

35

6675189

PIN

36

6675226

SEAL KIT W/Ref. 9, 13, 14, 15, 18, 20, 23 & 32
