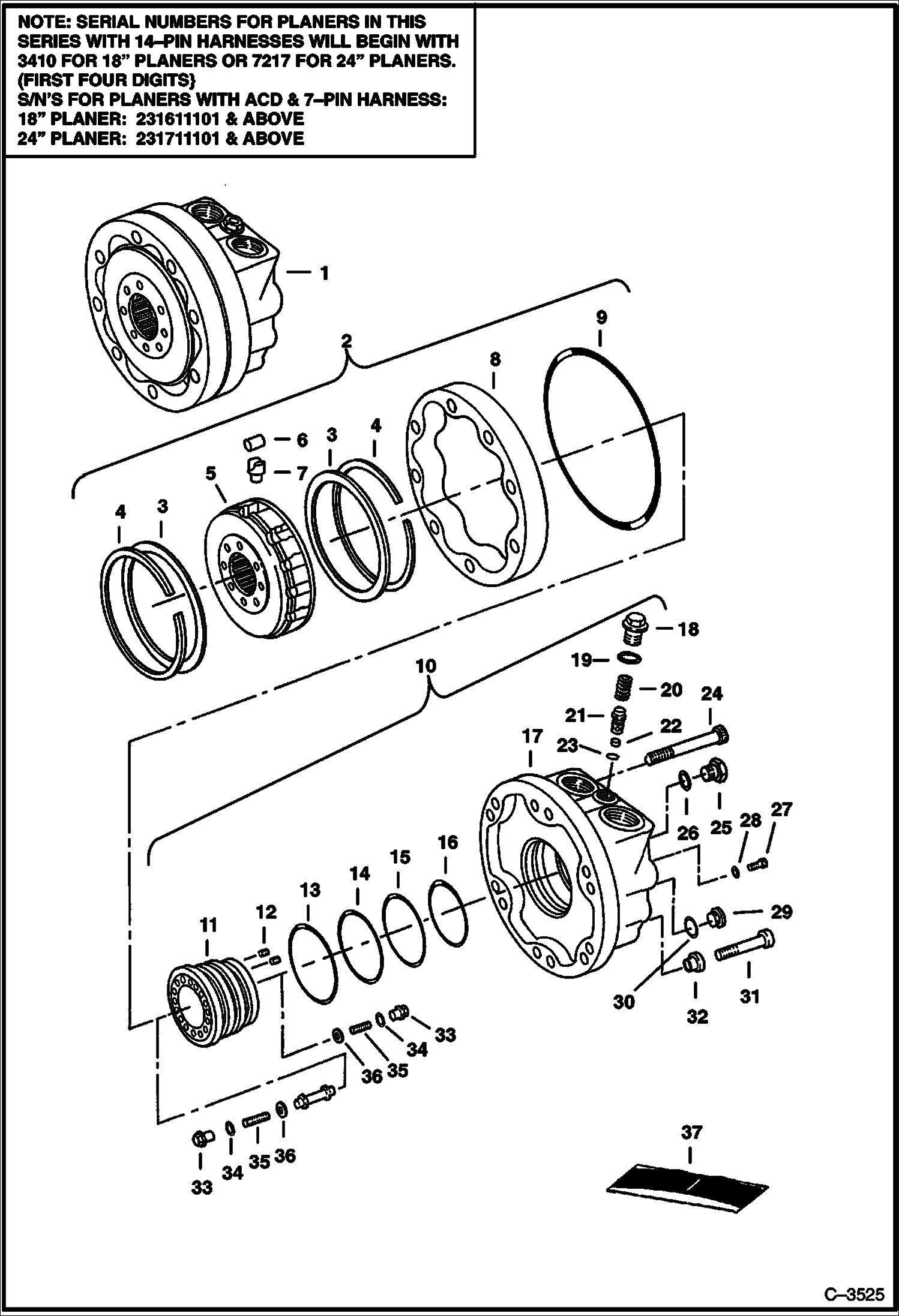

Запчасти Bobcat PLANERS PLANER (Motor) (18 341000101 - 00328) (24 721700101 - 00160) Loader

1

MOTOR See Illustration PLANER/ B15807 NLA - Rexroth 5830-003-092 - Order 6677178 - Was 6672852 - A

2

6674028

ROTARY GROUP W/Ref. 3 - 8

3

6674036

RING

4

SNAP RING NLA - Was 6674035 - A

5

CYLINDER BLOCK NLA - Order Ref. 2 - Was 6674033 - A

6

6674031

ROLLER

7

6674032

PISTON

8

6675091

CAM Was 6674034 - B

9

6674029

SEAL square

10

REAR HOUSING NLA - Order Ref. 1 - W/Ref. 11 - 31 - A

11

DISTRIBUTOR NLA - Order Ref. 10 - Was 6666361 - A

12

6674037

SPRING

13

6674038

SEAL

14

SEAL NLA - Was 6674039 - A

15

6674040

SEAL W/ O-ring - 87,15 mm I.D.

16

6674041

O-RING

17

REAR HOUSING NLA - Order Ref. 10 - Was 6666363 - A

18

6666365

PLUG

19

6671787

O-RING

20

6674042

SPRING

21

6691477

PISTON Was 6666367 - D

22

6666368

ORIFICE 1.5mm - Was 6674044 - B

23

6666369

SNAP RING

24

3GM12100

BOLT

25

6674045

PLUG

26

6674048

O-RING

27

6666356

PLUG

28

6674046

O-RING

29

6666364

PLUG

30

6674047

O-RING

31

6674030

BOLT 12mm

31

6675090

BOLT 8mm - used with Ref. 32

32

6675022

BUSHING Use with 6675090 (8mm) bolt

33

6675092

PLUG

34

6675093

O-RING

35

6675094

SPRING

36

6675095

WASHER

37

6676035

KIT, SEAL W/Ref. 9, 13-16, 19, 21, 26, 28 & 30 - Was 6666357 - A
