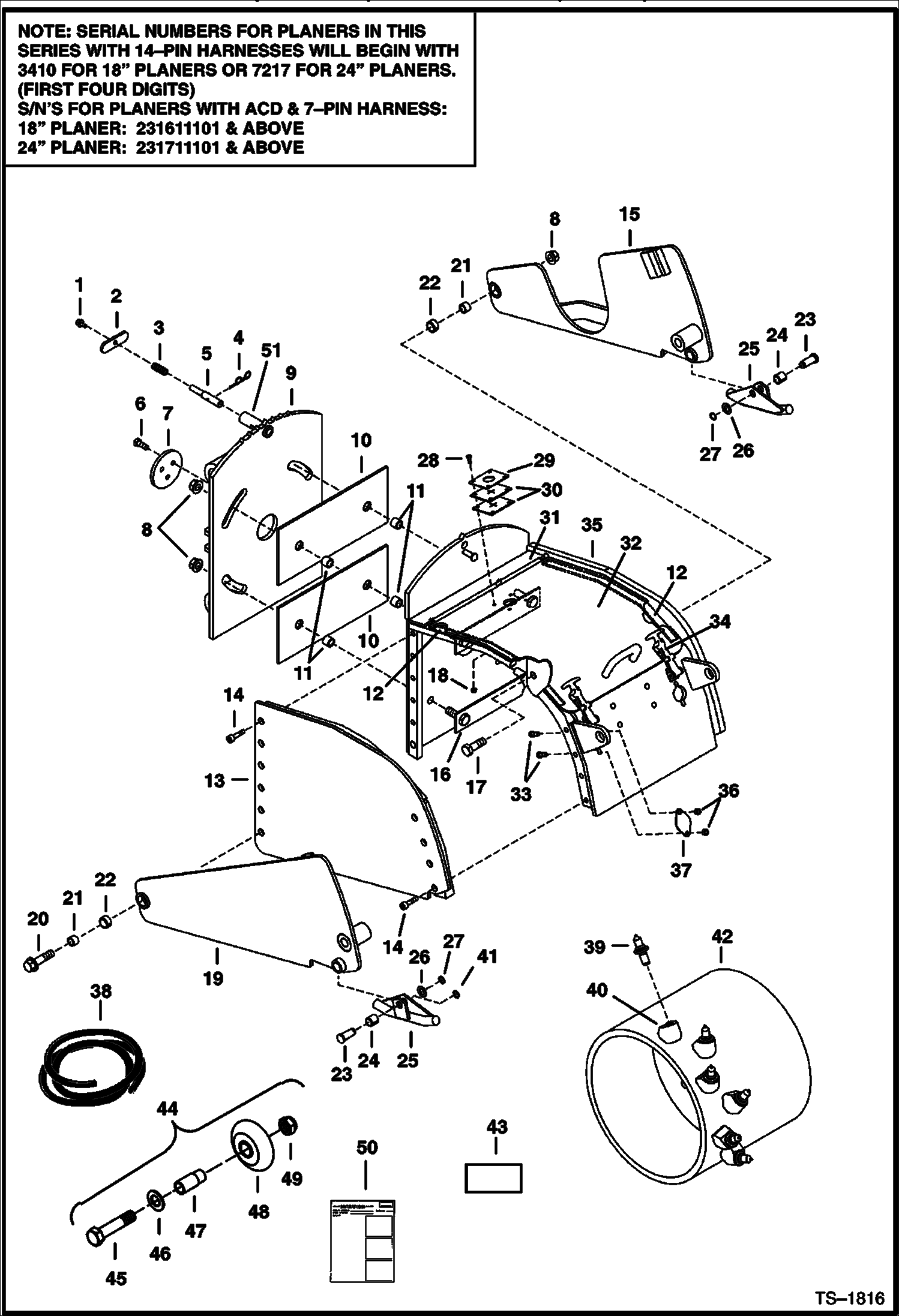

Запчасти Bobcat PLANERS PLANER (Housing Group) (18 3410 & 2316) (24 7217 & 2317) Loader

1

35C612

BOLT

2

6905043

HANDLE

3

6714639

SPRING

4

6648587

PIN, SNAP

5

6905042

PIN

6

17C820

BOLT

7

6713557

BRACKET

8

53D12

NUT

9

6714256

MOUNT ASSY

10

6713820

PLATE, BEARING

11

6713965

BUSHING

12

SEAL NSS - 559 mm (22'') long - Order Ref. 38

13

6713570

COVER

13

6905641

COVER

14

73G828

BOLT

15

6713575

MOUNT, SKI L.H.

16

6713952

MOUNT

17

17C1236

BOLT

18

97D4

NUT

19

6713574

MOUNT R.H.

20

31C1248

BOLT

21

6713667

BUSHING

22

6713583

BUSHING

23

6714998

PIN

24

6713700

BUSHING

25

6713578

SKID BAR

26

6800453

BUSHING

27

6651530

SNAP RING

28

17C412

BOLT 5

29

6628902

PLATE

30

6664146

SEAL

31

6713560

HINGE Use W/ 457 mm (18'') wide planer

31

6716202

HINGE Use W/ 610 mm (24'') wide planer

32

6713561

DOOR Use W/ 457 mm (18'') wide planer

32

6905661

DOOR Use W/ 457 mm (18'') wide planer

32

6716204

DOOR Use W/ 610 mm (24'') wide planer

32

6905966

DOOR Use W/ 610 mm (24'') wide planer

33

17C616

BOLT 5

34

1547283

LATCH ASY

34

1F308

PIN, COTTER iff equipped

35

HOUSING ASSY NLA - Use W/ 457 mm (18'') wide planer - Order 6905647 housing assy & Ref. 13 (6905641 cover) - Was 6713564 - A

35

6905647

HOUSING ASSY Use W/ 457 mm (18'') wide planer

35

HOUSING ASSY NLA - Use W/ 610 mm (24'') wide planer - Order 6905989 housing assy & Ref. 13 (6905641 cover) - Was 6716200 - A

35

6905989

HOUSING ASSY Use W/ 610 mm (24'') wide planer

36

61D6

NUT 5

37

6667551

COVER

38

6906931

SEAL bulk - sold per foot - Was 6654723 - A

39

6672259

BIT std all purpose - sharp point

39

6650137

BIT, TOOTH BLUNT POINT 70 all purpose - blunt point for longer life

39

6650138

BIT, TOOTH CARBIDE 70 concrete

39

6659946

BIT, TOOTH CARBIDE heavy duty

40

6634443

HOLDER, BIT Was 6634433 - D

41

6662745

SNAP RING

42

DRUM SALES #6905178 - 50,8 mm (2'') wide - slotcutting - 21 bits

42

DRUM SALES #6958406 - 101,6 mm (4'') wide - slotcutting - 24 bits

42

DRUM SALES #6661408 - 152 mm (6'') wide - all purpose - 32 bits

42

DRUM SALES #7165473 - 203 mm (8'') wide - all purpose - 34 bits

42

DRUM SALES #7165485 - 305 mm (12'') wide - all purpose - 40 bits

42

DRUM SALES #6905404 - 356 mm (14'') wide - all purpose - 46 bits

42

DRUM SALES #7165503 - 406 mm (16'') wide - fast cut - 47 bits

42

DRUM SALES #7165502 - 406 mm (16'') wide - smoothcut - 84 bits

42

DRUM SALES #7165505 - 457 mm (18'') wide fast cut - 47 bits

42

DRUM SALES #7165506 - 457 mm (18'') wide - smoothcut - 84 bits

42

DRUM NLA - 610 mm (24'') wide - fastcut - 84 bits - Was SALES #6716197 - A

42

DRUM SALES #6958266 - 610 mm (24'') wide - fastcut - 57 bits

42

DRUM SALES #7165544 - 610 mm (24'') wide - smoothcut - 124 bits

43

6905216

DECAL, DRUM Use W/Ref. 42 (SALES #6905178 drum)

43

6958408

DECAL, DRUM Use W/Ref. 42 (SALES #6958406 drum)

43

6905217

DECAL, DRUM Use W/Ref. 42 (SALES #6661408 drum)

43

6905218

DECAL, DRUM Use W/Ref. 42 (SALES #7165473 drum)

43

6905219

DECAL, DRUM Use W/Ref. 42 (SALES #7165485 drum)

43

6905760

DECAL, DRUM Use W/Ref. 42 (SALES #6905404 drum)

43

6905215

DECAL, DRUM Use W/Ref. 42 (SALES #7165503 drum)

43

6905220

DECAL, DRUM Use W/Ref. 42 (SALES #7165502 drum)

43

6905222

DECAL, DRUM Use W/Ref. 42 (SALES #7165505 drum)

43

6905221

DECAL, DRUM Use W/Ref. 42 (SALES #7165506 drum)

43

6905224

DECAL, DRUM Use W/Ref. 42 (SALES #6716197 drum)

43

6958267

DECAL, DRUM Use W/Ref. 42 (SALES #6958266 drum)

43

6905223

DECAL, DRUM Use W/Ref. 42 (SALES #7165544 drum)

44

6905612

KIT planer wheel - W/Ref. 45 - 50

45

17C1464

BOLT

46

25E29

WSHR

47

6905607

BUSHING

48

6905610

WHEEL

49

85D14

NUT

50

6901027

INSTRUCTIONS

51

6905041

BUSHING
