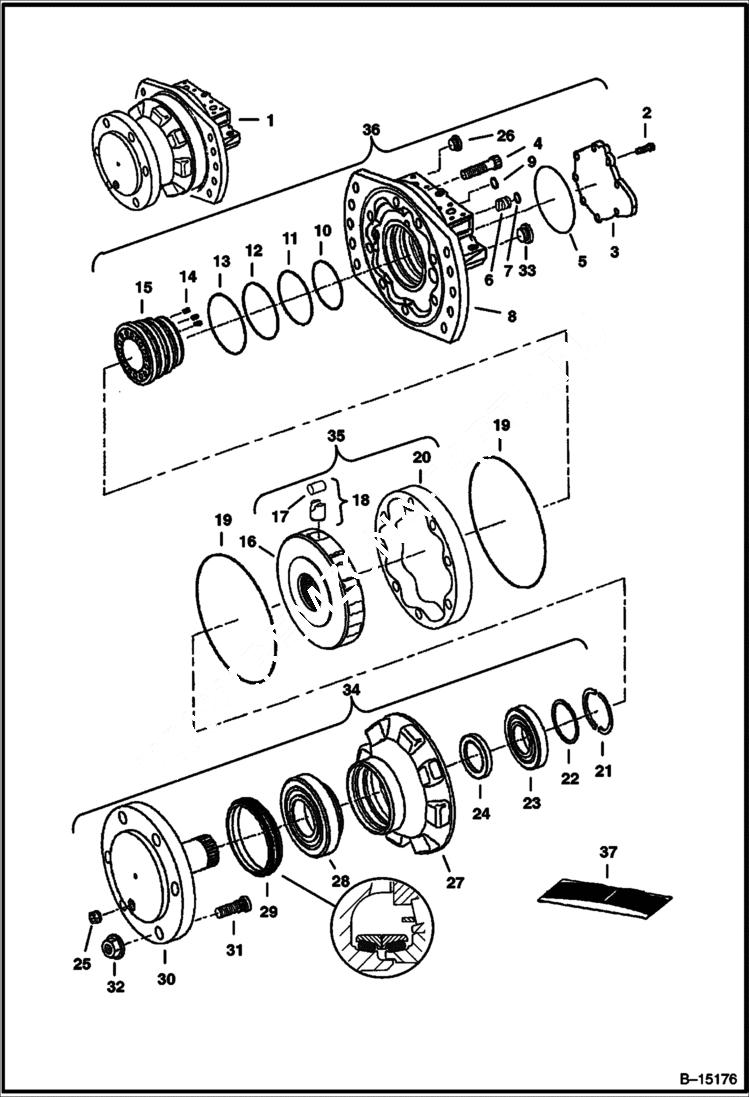

Запчасти Bobcat PLANERS PLANER (Motor) Loader

1

6674098

MOTOR Rexroth 5840-003-016

2

6674051

BOLT Was 6674052 - D

3

6660042

COVER

4

BOLT NLA - Was 6674052 - A

5

6674066

SEAL

6

6660032

PIN

7

6660038

O-RING

8

6674069

REAR HOUSING

9

6660039

O-RING

10

6674846

SEAL Was 6674068 - A

11

6674730

SEAL Was 6660036 - A

12

6674847

SEAL Was 6660035 - A

13

6674848

SEAL Was 6674067 - A

14

6660033

SPRING

15

6660031

VALVE RING

16

6674064

CYLINDER BLOCK

17

6666358

ROLLER

18

6660026

PISTON ASSY

19

6676597

O-RING square - Was 6674029 - B

20

6674065

CAM

21

6660016

RING, SPLIT

22

WASHER NLA - preload - 1.90mm - Was 6674057 - A

22

WASHER NLA - preload - 2.10mm - Was 6674058 - A

22

WASHER NLA - preload - 2.30mm - Was 6674059 - A

22

WASHER NLA - preload - .098'' (2,5mm) thick - Was 6689116 - A

22

WASHER NLA - preload - 2.75mm - Was 6674061 - A

22

WASHER NLA - preload - 4.00mm - Was 6674062 - A

23

6660018

BEARING, MOTOR DRIVE

24

6691212

SEAL Was 6674056 - D

25

6674063

PLUG

26

6666364

PLUG

27

6660012

FRONT HOUSING Was 6674055 - A

28

6660017

BEARING

29

6660019

SEAL

30

6674054

SHAFT

31

7020902

STUD Was 6660021 - A

32

6660022

NUT

33

6674017

PLUG includes O-ring

34

6674049

FRONT HOUSING W/Ref. 21 - 25 & 27 - 30

35

6674050

ROTATION ASSY W/Ref. 16 - 18 & 20

36

6660029

KIT Rear Housing - W/Ref. 5 - 15, 26 & 33

37

6676587

SEAL KIT W/Ref. 5, 7, 9-13, 19, 24 & 33 - Was 6674053 - D
