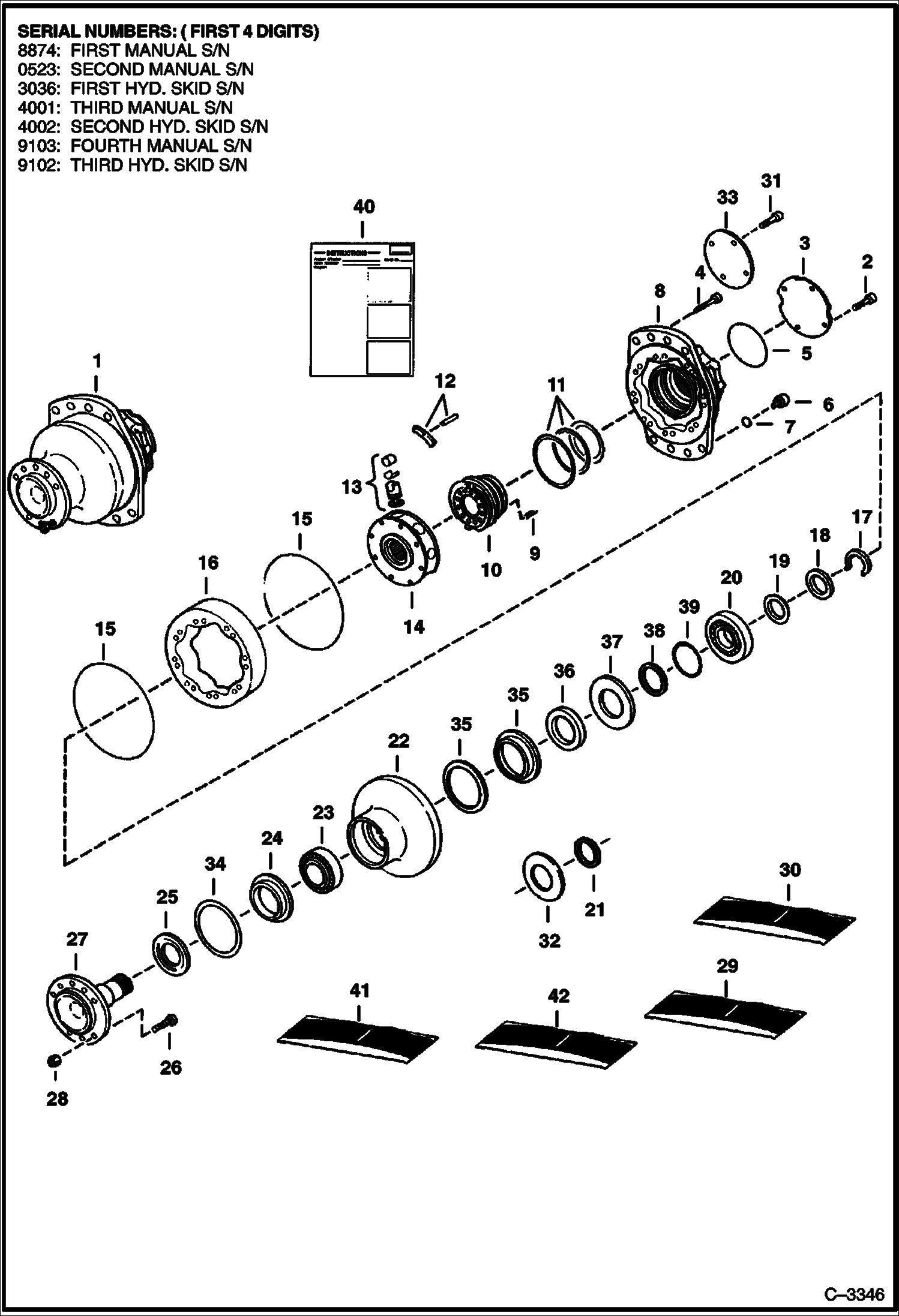

Запчасти Bobcat PLANERS PLANER (Motor) (052300101 - 00719) (303600101 - 00115) Loader

1

MOTOR See Illustration PLANER/ E2157 NLA - Poclain - ER 6662315 - Was 6651222 - A

2

BOLT NLA - Used with .1875'' (4,76mm) - Was 6650206 - A

3

COVER NLA - W/Ref. 2 - .1875''(4,76mm) - Order Ref. 5, 31 & 33 - Was 6650205 - A

4

6650198

BOLT

5

6650201

SEAL

6

6650200

BOLT

7

6650199

WASHER

8

HOUSING NSS

9

6650204

SPRING

10

6650202

VALVE

11

6650203

SEAL RINGS

12

RETAINER KIT NSS

13

PISTON NSS

14

6650195

CYLINDER BLOCK W/Ref. 12 & 13

15

6650197

O-RING

16

6650196

CAM RING W/Ref. 15

17

6660258

SNAP RING Was 6650217 - A

18

6650216

WASHER

19

6650215

SHIM KIT

20

6650214

BEARING

21

SEAL NSS - Was 6661208 - A

22

HOUSING NLA - Order 6660448 & 6660449 - Was 6650207 - A

22

HOUSING NLA - support - Use 6662315 - Was 6660448 - A

23

6650209

BEARING

24

SEAL NLA - order 6679768 seal kit - Was 6650210 - A

25

DEFLECTOR NLA - order 6679768 seal kit - Was 6650211 - A

26

6650213

STUD

27

6662241

SHAFT Was 6650212 - A

28

6651480

NUT

29

6722161

SEAL KIT See BTI291 Ref. 5, 15, 21, 24, 25 & 34 - Was 6650193 - A

30

SEAL KIT NLA - Ref. 5, 11, 15, 21, 24 & 25 - Order 6722161 & 6650203 - Was 6650194 - A

31

7CM1220

SCREW Use with .375''(9,53mm) Cover - Was 6660137 - A

32

WASHER NLA - back-up - used with Ref. 21 - Was 6660135 - A

33

6660136

COVER .375'' (9,53mm)

34

6660449

SEAL Use with 6660448

35

RETAINER NSS

36

SEAL NSS

37

RETAINER NSS

38

O-RING NSS

39

BACKUP RING NSS

40

6722255

INSTRUCTIONS

41

6665658

SEAL KIT See BTI291 Ref. 35 - 39

42

6724294

SEAL KIT See BTI291 Ref. 36, 38 & 39
