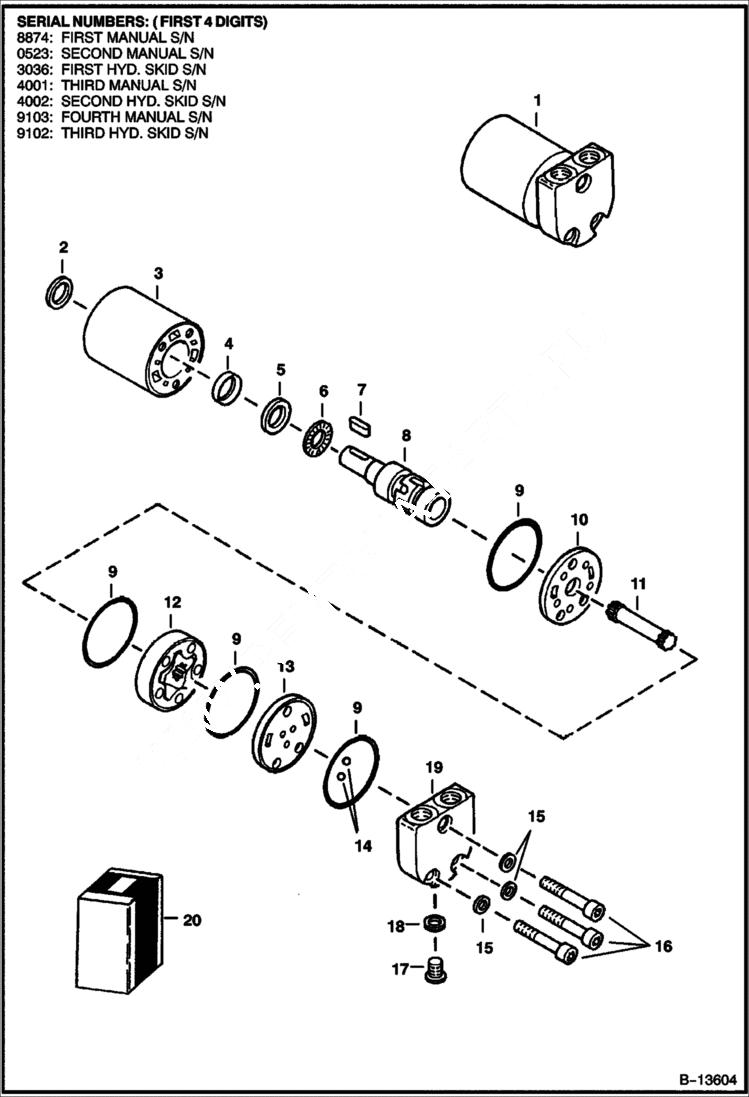

Запчасти Bobcat PLANERS PLANER (Depth Control Motor) (052300720 & Above) (303600116 & Above) Loader

1

MOTOR NLA - DanFoss - Order 6667954 - Was 6659882 - A

2

SEAL NLA - Order 6660103 - Was 6660102 - A

3

HOUSING NSS

4

6660087

SEAL

5

6660088

RACE

6

6660089

BEARING

7

6662272

KEY Was 7J002012B - B

8

SHAFT NSS

9

6660094

O-RING

10

6660091

PLATE

11

6667945

SHAFT Was 6660092 - A

12

6660093

GEAR WHEEL SET

13

6660095

PLATE

14

BALLS NLA - Was 6660096 - A

15

6660100

WASHER

16

BOLT NLA - Was 6660101 - A

17

6660099

PLUG

18

6660098

WASHER

19

6660097

COVER

20

6660103

SEAL KIT W/Ref. 2, 4, 9, 15 & 18
