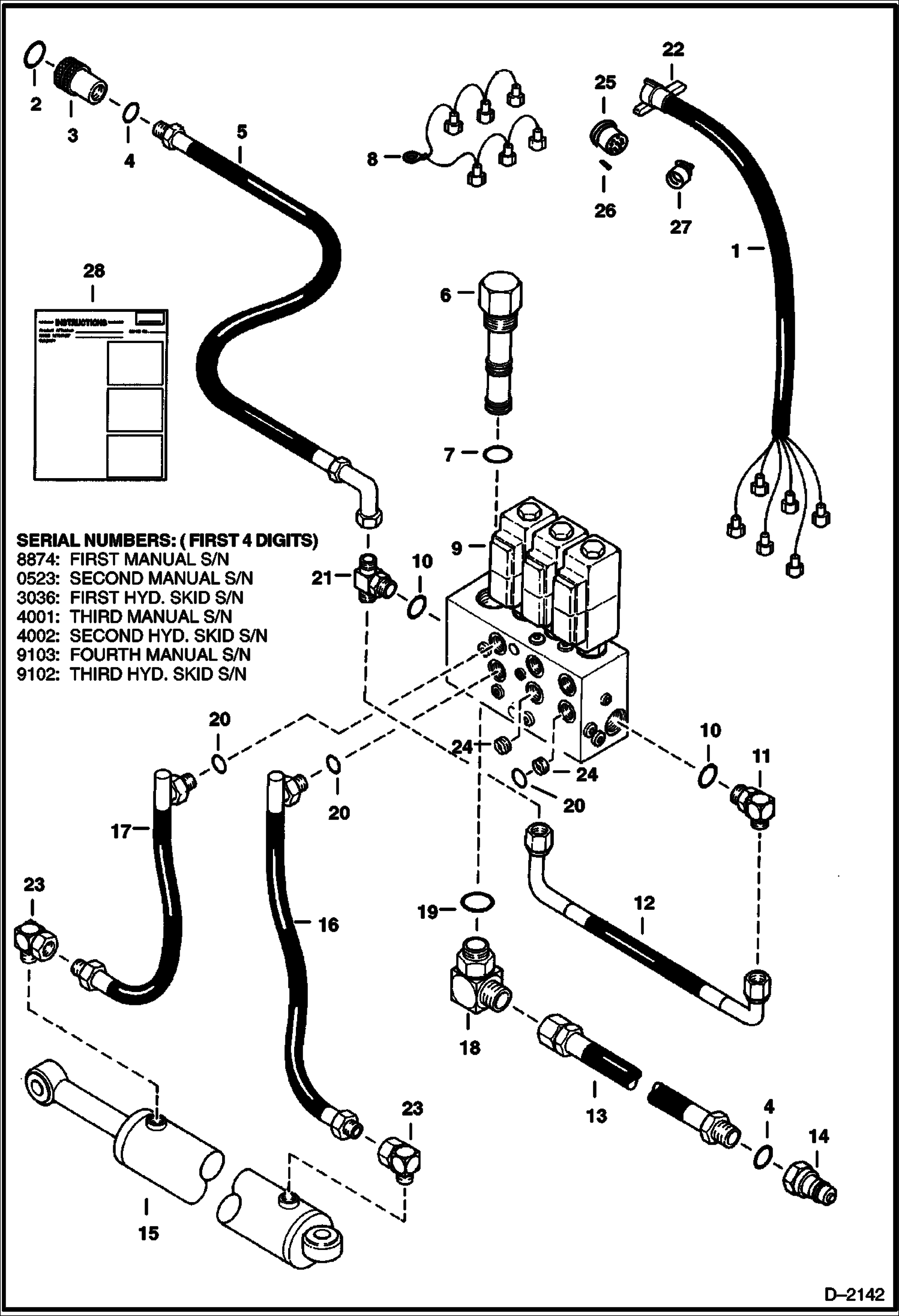

Запчасти Bobcat PLANERS PLANER (Hydraulics) (303600101 & Above) Loader

1

6648627

HARNESS

1

6662289

HARNESS W/6-pin connector

1

6665119

HARNESS W/14-pin connector - For Multi Switch Handles - W/Ref. 25

2

48K16

O RING 10

3

6648969

QUICK COUPLER male - poppet - Was 6598757 - B

3

6667804

COUPLER, FF MALE

3

6669657

SEAL KIT

4

79K6

O RING 10 Was 79K000010B - D

5

6657214

HOSE

6

6659992

REGULATOR 2 GPM

6

6661766

REGULATOR 4 GPM

7

6659993

O-RING

8

WIRE NLA - ground - Was 6658485 - A

9

VALVE See Illustration PLANER/ B25259

10

79K8

O RING 10

11

6658487

ELBOW

12

6657217

HOSE

13

6657215

HOSE

14

6648967

QUICK COUPLER female - poppet - Was 6598758 - B

14

6667803

COUPLER, FF FEMALE

15

CYLINDER See Illustration PLANER/ B12574

16

6659858

HOSE

17

6659857

HOSE

18

6650185

ELBOW Was 6655147 - A

19

79K12

O RING 10

20

79K6

O RING 10

21

6657218

TEE

22

6648630

CONNECTOR 6 way

23

6650186

ELBOW

24

6661765

ORIFICE port

25

6665001

CONNECTOR, ELECTRICAL for 6665119 harness - W/Ref. 27

26

6664041

SOCKET female

27

6669286

CLAMP W/saddles

28

INSTRUCTIONS NLA - For Hydraulic Depth Skid Kit - Was 6722267 - A
