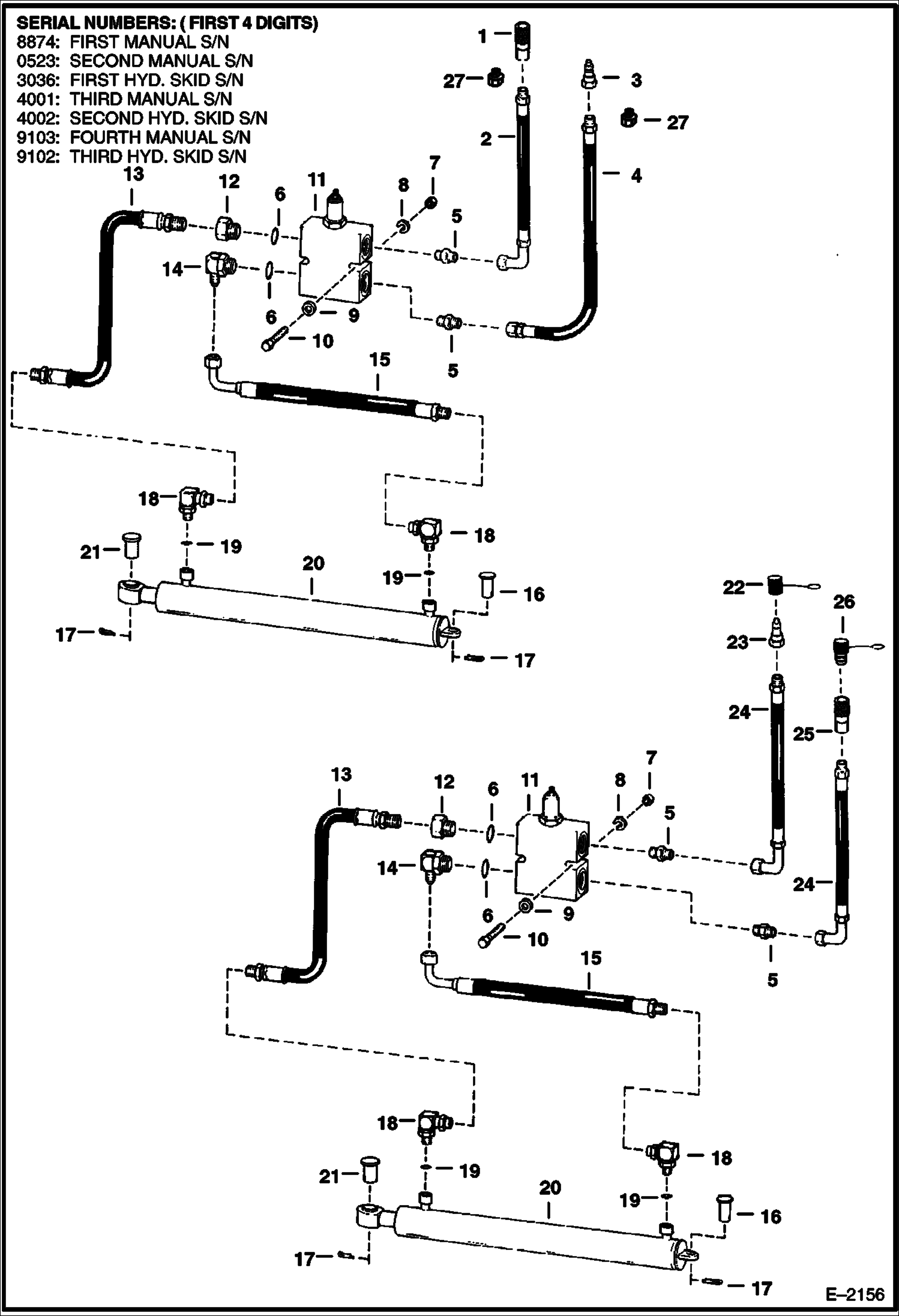

Запчасти Bobcat PLANERS PLANER (Side Shift Hydraulic Circuitry) (For Manual Skids) (843H & 853H) (052300701 thru 400101000) Loader

1

6598758

COUPLER, POPPET FEMALE straight - For 843H

1

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

2

6657214

HOSE For 843H

3

6598757

COUPLER, POPPET MALE straight - For 843H

3

6674688

COUPLER, FF MALE straight - Was 6667808 - A

3

6679841

SEAL Was 6672026 - A

4

6657215

HOSE For 843H

5

6653727

ADAPTER

6

79K12

O RING 10

7

61D4

NUT 5

8

4E4

WASHER

9

25E13

WASHER 5

10

17C432

BOLT

11

VALVE See Illustration PLANER/ B13400

12

6650183

ADAPTER

13

6650184

HOSE

14

6650185

ELBOW

15

6648607

HOSE

16

PIN NLA - Was 6650160 - A

17

1F832

COTTERPIN

18

6650186

ELBOW

19

79K8

O RING 10

20

CYLINDER See Illustration PLANER/ B12574

21

6650166

PIN

22

1513549

CAP

23

6648969

QUICK COUPLER male - poppet - For 853H

23

6667804

COUPLER, FF MALE

23

6669657

SEAL KIT

24

6660545

HOSE For 853H

25

6648967

QUICK COUPLER female - poppet - For 853H

25

6667803

COUPLER, FF FEMALE

26

1519324

PLUG For 853H

27

6668096

ADAPTER Use to convert Ref. 1 & 3 to flush face couplers
