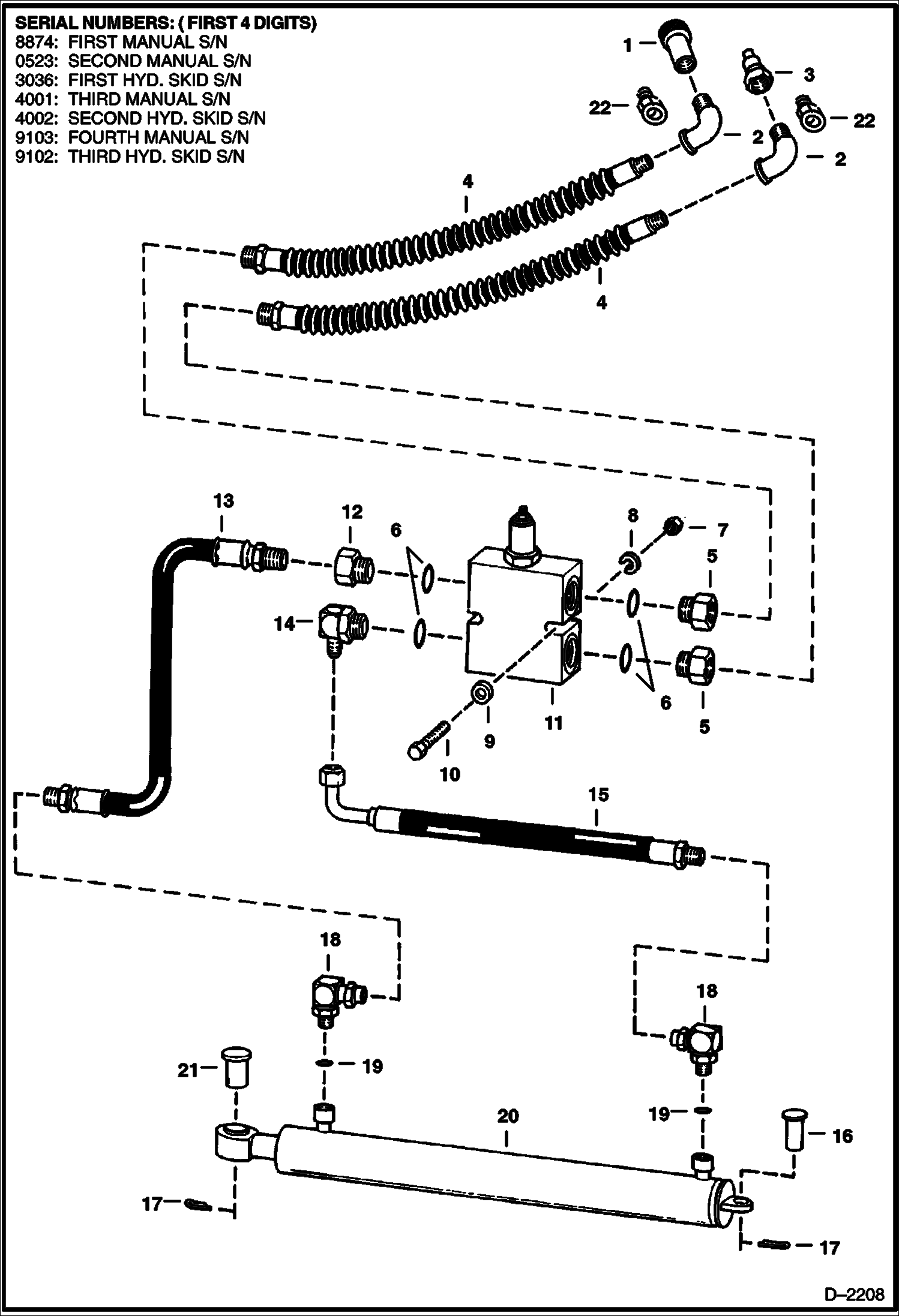

Запчасти Bobcat PLANERS PLANER (Side Shift Hydraulic Circuitry) (For Manual Skids) (052300101 - 00700) Loader

1

6598755

QUICK COUPLER female - poppet

1

6598758

COUPLER, POPPET FEMALE straight

1

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

2

29F3

ELBOW

2

ELBOW NLA - Was 6648611 - A

3

6598756

QUICK COUPLER male - poppet

3

6598757

COUPLER, POPPET MALE straight

3

6674688

COUPLER, FF MALE straight - Was 6667808 - A

3

6679841

SEAL Was 6672026 - A

4

6652535

HOSE

4

HOSE NLA - Was 6650181 - A

5

ADAPTER NLA - 1/8'' (3,18mm) orifice 807 - Was 6650182 - A

6

79K12

O RING 10

7

61D4

NUT 5

8

4E4

WASHER

9

25E13

WASHER 5

10

17C432

BOLT

11

VALVE See Illustration PLANER/ B13400

12

6650183

ADAPTER

13

6650184

HOSE

14

6650185

ELBOW

15

6648607

HOSE

16

PIN NLA - Was 6650160 - A

17

1F832

COTTERPIN

18

6650186

ELBOW

19

79K8

O RING 10

20

CYLINDER See Illustration PLANER/ B12574

21

6650166

PIN

22

6669284

ADAPTER, COUPLER Use with flush face couplers

22

6668096

ADAPTER Use with flush face couplers
