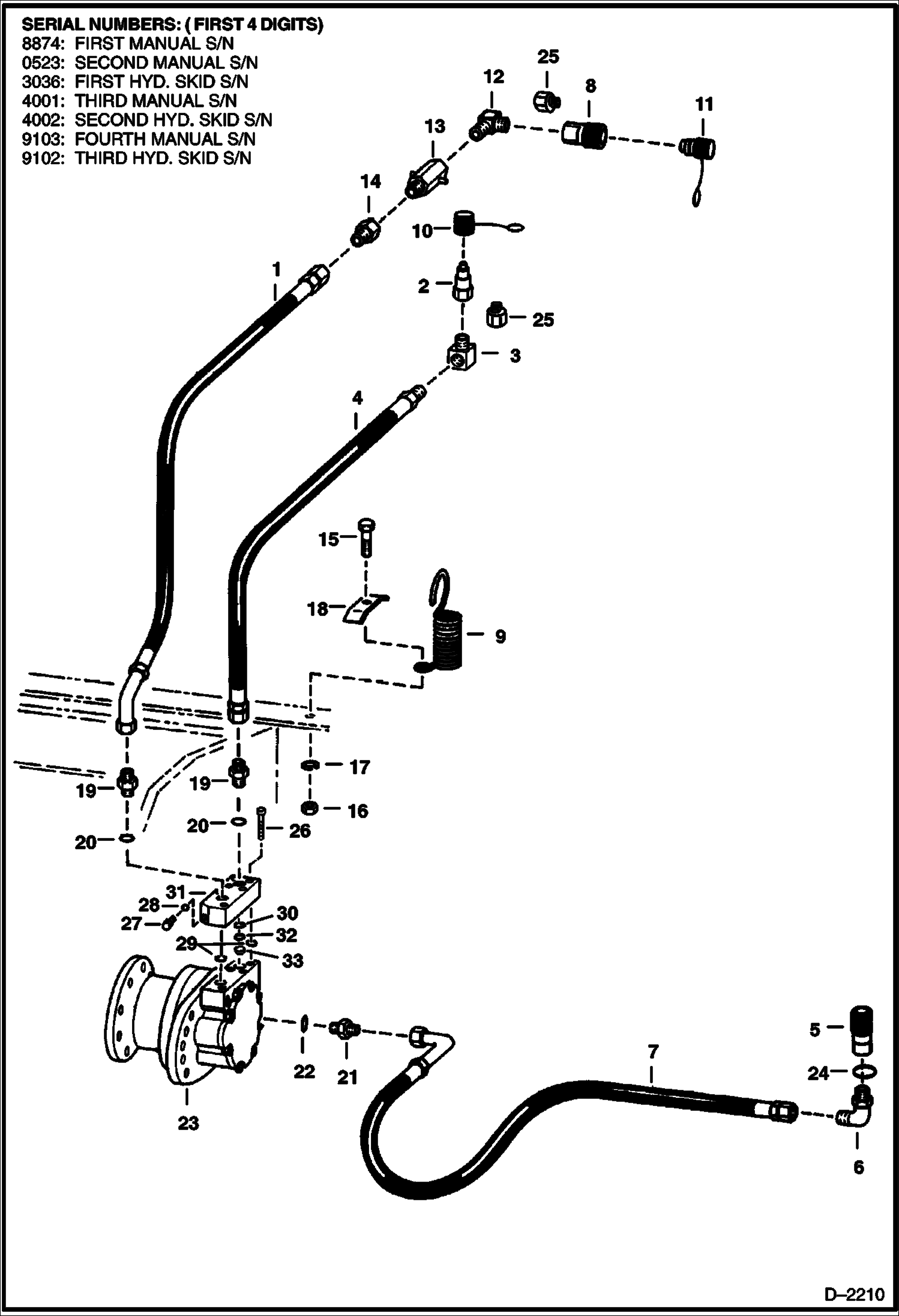

Запчасти Bobcat PLANERS PLANER (Motor Hydraulic Circuitry) (853H) Loader

1

6660547

HOSE

2

6515597

QUICK COUPLER male - pipe threads

2

6674688

COUPLER, FF MALE straight - Was 6667808 - A

2

6679841

SEAL Was 6672026 - A

3

6660544

ELBOW

4

6655146

HOSE

5

6658252

QUICK COUPLER screw on - poppet

5

6667805

COUPLER, FF FEMALE straight

6

17KB0606

FITTING Use with poppet couplers - Was 6657211 - A

6

1300059

ELBOW Use with flush face couplers

7

6660546

HOSE

8

6515596

QUICK COUPLER female - pipe threads

8

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

9

30H82

CLAMP INSULATED Was 6660002 - A

10

6515599

CAP For Ref. 2

11

6515598

PLUG For Ref. 8

12

6657220

ELBOW pipe thread

13

6657221

CHECK VALVE pipe thread

14

6657222

ADAPTER pipe thread

15

17C524

BOLT

16

61D5

NUT

17

23E5

L WASHER

18

6648599

CLAMP

19

6657222

ADAPTER

20

79K12

O RING 10

21

6660066

ADAPTER

22

6660067

O-RING

23

MOTOR See Illustration PLANER/ B15176 See Illustration PLANER/ C3346 See Illustration PLANER/ C3275

24

79K6

O RING 10 Use with poppet couplers

24

79K8

O RING 10 Use with flush face couplers

25

6670983

ADAPTER Use to convert to flush face couplers

26

1GM1050

BOLT Was 6659878 - A

27

6660068

PLUG

28

6660069

O-RING

29

6659881

O-RING

30

6659880

O-RING

31

6659879

BLOCK

32

38K20102

O'RING

33

6660810

ORIFICE
