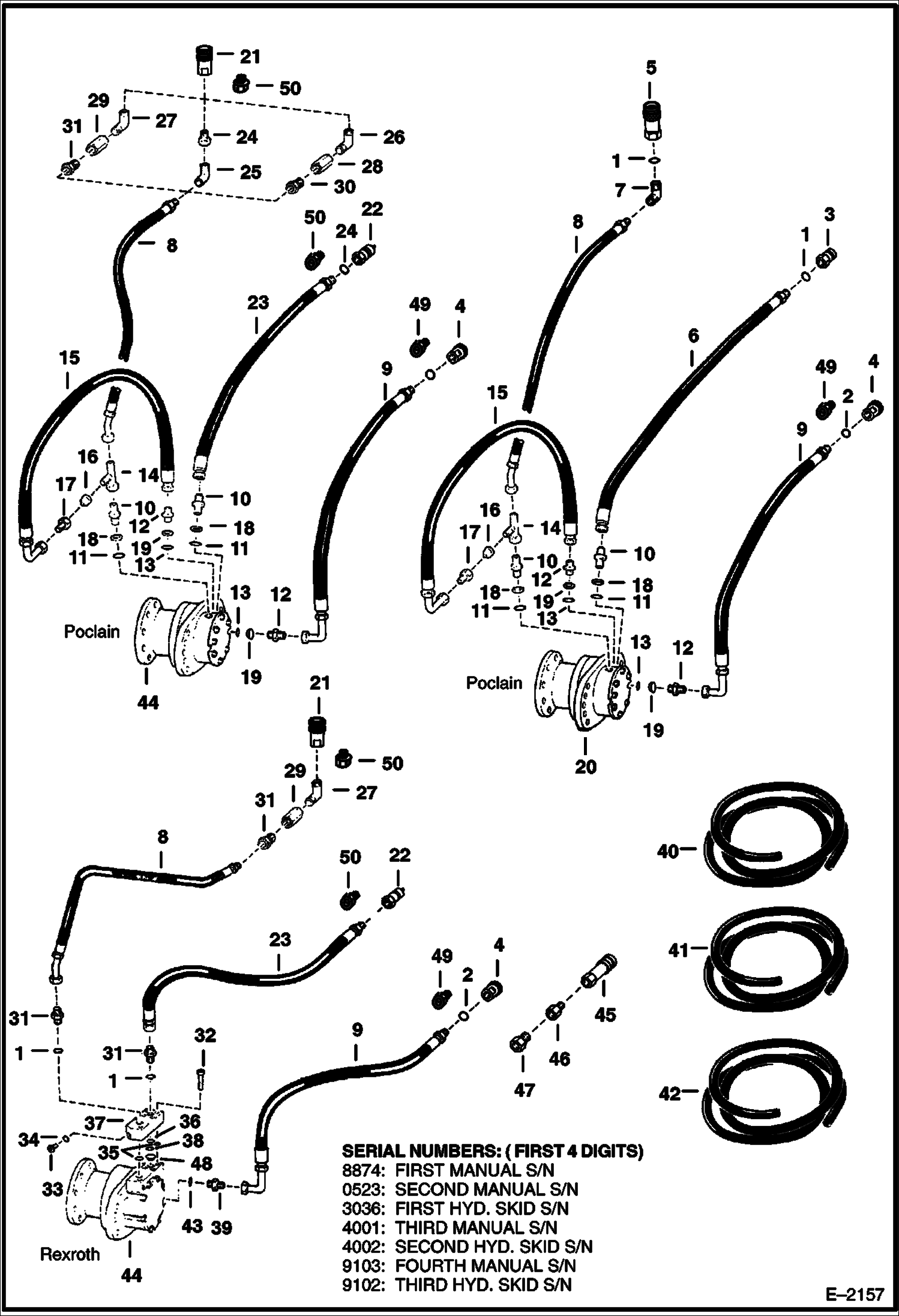

Запчасти Bobcat PLANERS PLANER (Motor Hydraulic Circuitry) (843H) Loader

1

79K12

O RING 10

2

79K8

O RING 10

3

6641358

COUPLER male - O-ring threads

3

6674688

COUPLER, FF MALE straight - Was 6667808 - A

3

6679841

SEAL Was 6672026 - A

4

6598758

COUPLER, POPPET FEMALE straight - Was 6630092 - B

4

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

5

6641359

COUPLER female - O-ring threads

5

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

5

25K40110

O RING 10 Use with poppet coupler

6

6650077

HOSE

7

6655147

ELBOW

8

6650078

HOSE

9

6652536

HOSE Was 6578898 - B

10

6650188

ADAPTER

11

6653206

O-RING

12

6650189

ADAPTER

13

6653208

O-RING

14

6651219

TEE

15

6651221

HOSE

16

ORIFICE NLA - Was 6651218 - A

17

6651220

REDUCER

18

6653207

WASHER

19

6653209

WASHER Was 6653208 - D

20

MOTOR See Illustration PLANER/ C3346 NLA - POCLAIN - ER REF. 1, 31-39, 43 & 6674098 MOTOR

21

6515596

QUICK COUPLER female - pipe threads

21

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

21

73K219

BK UP RG

22

6515597

QUICK COUPLER male - pipe threads

22

6674688

COUPLER, FF MALE straight - Was 6667808 - A

22

6679841

SEAL Was 6672026 - A

23

6655146

HOSE

24

6652945

ADAPTER Ref. 21 & 22 - Used with pipe thread couplers

25

6655148

ELBOW

26

6655957

ELBOW O-ring

27

6657220

ELBOW pipe thread

28

6655958

CHECK VALVE O-ring

29

6657221

CHECK VALVE pipe thread

30

6655959

ADAPTER O-ring

31

6657222

ADAPTER pipe thread - Was 6657272 - D

32

3GM1050

SCREW Was 1CM1050 - B

33

6660068

PLUG

34

6660069

O-RING

35

6659881

O-RING

36

6659880

O-RING

37

6659879

BLOCK

38

38K20102

O'RING inside of 6659880

39

6660066

ADAPTER Was 6660616 - D

40

6649389

HOSE COVER bulk - Sold Per Foot - For Small Hoses

41

6652367

HOSE COVER bulk - Sold Per Foot - For Large Hoses

42

HOSE SHIELD NLA - Covers 3 Hoses - Was 6659258 - A

43

6660067

O-RING

44

MOTOR KIT NLA - Order Ref. 1, 31 - 39, 43 & 6674098 - Was 6662315 - A

44

MOTOR See Illustration PLANER/ C3275 See Illustration PLANER/ B15176 REXROTH - Was 6658139 - A

45

6658252

QUICK COUPLER screw on

46

6661008

REDUCER

47

6661009

REDUCER

48

6660810

ORIFICE

49

6668096

ADAPTER Use to convert Ref. 4, 6598758 to flush face coupler

50

6670983

ADAPTER Use to convert Ref. 21 & 22 to flush face couplers
