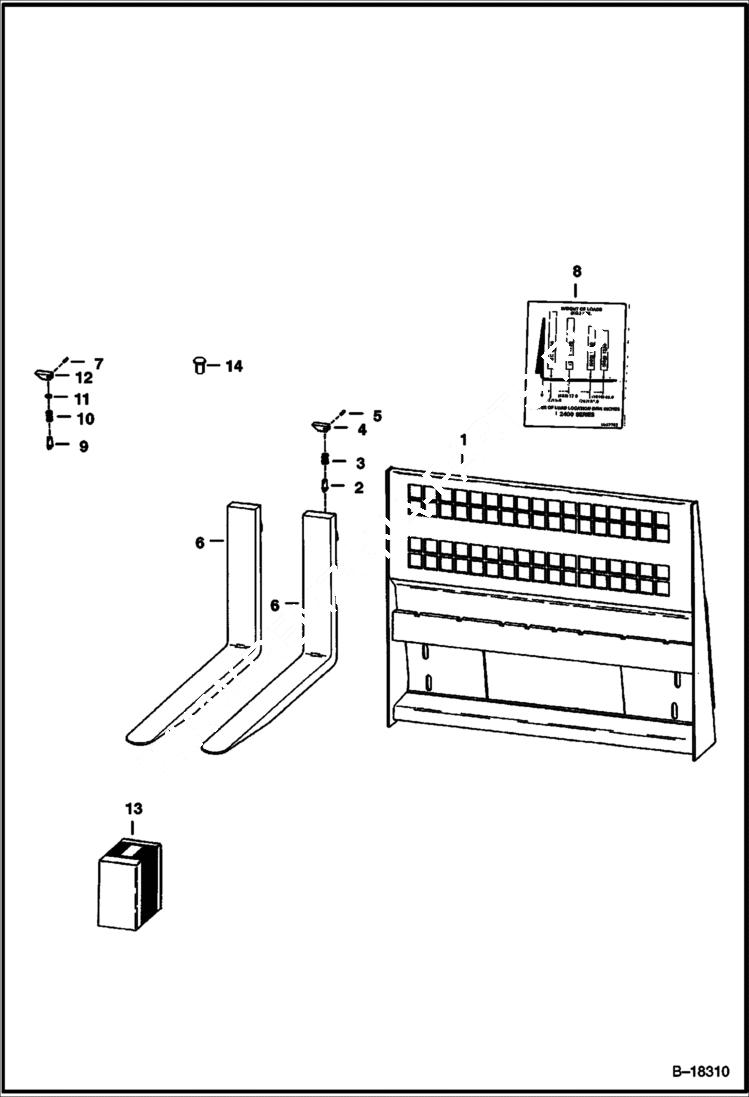

Запчасти Bobcat PALLET FORKS PALLET FORK (Use on 2400 Series) Loader

1

FRAME SALES

2

PIN NSS - fork lock - .5'' (12,7mm) or .625'' (15,88mm) diameter -to use .625'' (15,88mm) pin you will have to drill the fork pin hole to .625 (15,88mm) - Order Ref. 13 - Was 6517884 - A

3

SPRING NSS - 9/16'' (14,29MM) I.D. - Order Ref. 13 - WAS 6517882 - A

4

LEVER NSS - fork lock - Order Ref. 13 - Was 6517883 - A

5

ROLL PIN NSS - Order Ref. 13 - Was 666888B - A

6

6660359

FORK 30'' (762mm) - W/Ref. 2-5 - Was 6540181 - A

6

6660360

FORK 36'' (914,4mm) - W/Ref. 2-5 - Was 6540180 - A

6

6660361

FORK, PALLET 42'' 42'' (1066,8mm) - W/Ref. 2-5 - Was 6540179 - A

6

6660362

FORK, PALLET 48'' 48'' (1219,2mm) - W/Ref. 2-5 - Was 6540178 - A

7

209968

PIN

8

6537782

DECAL

9

PIN NSS - fork lock - .625'' (15,88mm) Dia. Order Ref. 13 - Was 6630456 - A

10

SPRING NSS - 21/32'' (16,67MM) I.D. - Order Ref. 13 - WAS 6630454 - A

11

WASHER NSS - Order Ref. 13 - Was 6630455 - A

12

6630457

LEVER

13

KIT NLA - W/Ref. 2 - 5 - order 6680122 - Was 6668141 - A

13

PIN KIT NLA - plastic knob - order 6680122 - Was 6676180 - A

13

6680122

KIT, PIN with metal knob

14

KNOB NLA - order 6680122 - Was 6677161 - A
