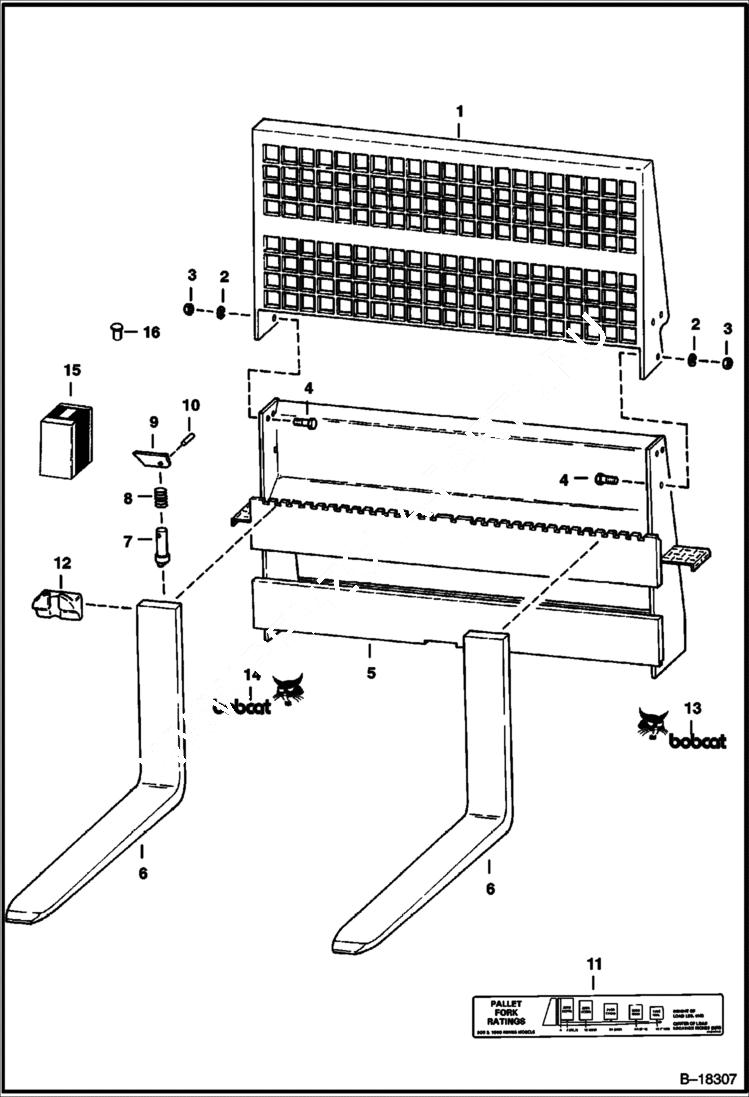

Запчасти Bobcat PALLET FORKS PALLET FORK (Use on 900 Series) Loader

1

6537822

GUARD back - Was 6501963 - A

2

4E10

WASHER

3

85D10

NUT, 5 Was 61D000010B - B

4

17C1024

BOLT

5

MAIN FRAME NLA - Was 6501962 - A

6

TOOTH SALES - 42'' (1066,8mm) long

6

TOOTH SALES - 48'' (1219,2mm) long

7

PIN NSS - fork lock - Order Ref. 15 - Was 756447B - A

8

SPRING NSS - Order Ref. 15 - Was 6517882 - A

9

LEVER NSS - Order Ref. 15 - Was 756446B - A

10

ROLL PIN NSS - Order Ref. 15 - Was 654618B - A

11

6591810

DECAL pallet fork rating

12

GUIDE NLA - Weld On - must be welded by a certified welder - Was 751350B - A

13

6727323

DECAL, LOGO BOBCAT AND HEAD LH - Was 6567987 - A

14

6727324

DECAL, LOGO BOBCAT AND HEAD RH - Was 6567988 - A

15

KIT NLA - Ref. 7-10 - order 6680122 - Was 6668141 - A

15

PIN KIT NLA - plastic knob - order 6680122 - Was 6676180 - A

15

6680122

KIT, PIN with metal knob

16

KNOB NLA - order 6680122 - Was 6677161 - A
