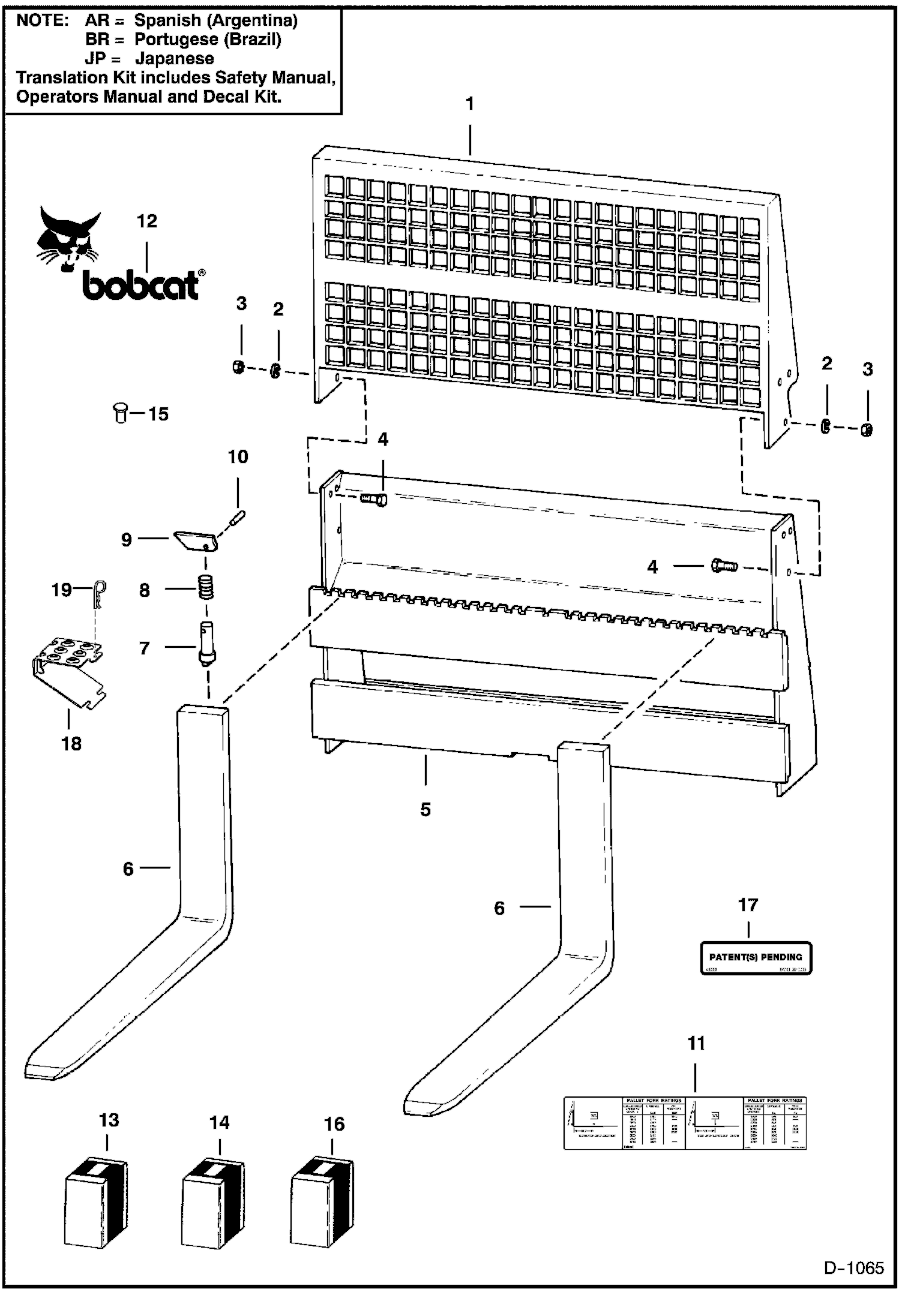

Запчасти Bobcat PALLET FORKS PALLET FORK (Use on 863, T200, 873, 883, 963) Loader

1

6537822

GUARD back

2

4E10

WASHER

3

85D10

NUT, 5

4

17C1024

BOLT

5

MAIN FRAME SALES

6

TOOTH SALES - 42'' long

6

TOOTH SALES - 48'' long

7

PIN NSS - fork lock - Order Ref. 14

8

SPRING NSS - Order Ref. 14

9

LEVER NSS - Order Ref. 14

10

ROLL PIN NSS - Order Ref. 14

11

6713662

DECAL pallet fork rating -863, 873 & 963

12

6727323

DECAL, LOGO BOBCAT AND HEAD LH - Was 6567987 - A

12

6727324

DECAL, LOGO BOBCAT AND HEAD RH - Was 6567988 - A

13

KIT NLA - Ref. 7-10 - order Ref. 14 - Was 6668141 - A

14

PIN KIT NLA - plastic knob - order 6680122 - Was 6676180 - A

14

6680122

KIT, PIN with metal knob

15

KNOB NLA - order 6680122 - Was 6677161 - A

16

6809965AR

KIT translation

16

6809965BR

KIT translation

16

6713662AR

KIT decal

16

6713662BR

KIT decal

16

6713662JP

KIT decal

17

DECAL PATENT PEND NLA - Was 6810666 - C

18

7232349

STEP, MFR Was 7138104 - A

19

6675029

PIN
