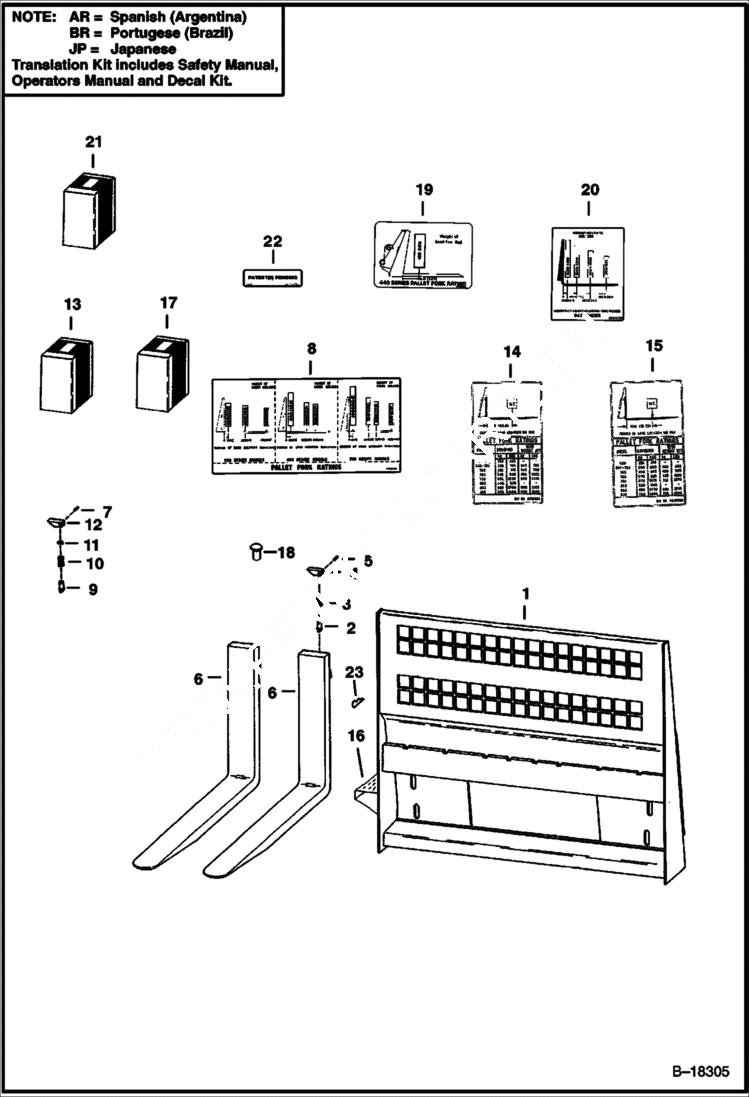

Запчасти Bobcat PALLET FORKS PALLET FORK (Use on 400 thru 873) Loader

1

FRAME SALES #6712927

2

PIN NSS - fork lock - 1/2'' (12,7mm) or 5/8'' (15,9mm) diameter to use 5/8'' (15,9mm) pin you will have to drill the fork pin hole to 5/8'' (15,9mm) - Order Ref. 17 - Was 6517884 - A

3

SPRING NSS - 9/16'' (12,3MM) I.D. - Order Ref. 17 - WAS 6517882 - A

4

LEVER NSS - fork lock - Order Ref. 17 - Was 6517883 - A

5

ROLL PIN NSS - Order Ref. 17 - Was 666888B - D

6

6660359

FORK 30'' (762mm) - W/Ref. 2-5 - Was 6540181 - A

6

6660360

FORK 36'' (914mm) - W/Ref. 2-5 - Was 6540180 - A

6

6660361

FORK, PALLET 42'' 42'' (1067mm) - W/Ref. 2 - 5 - Was 6540179 - A

6

6660362

FORK, PALLET 48'' 48'' (1219mm) - W/Ref. 2 - 5 - Was 6540178 - A

7

209968

PIN

8

6700705

DECAL Ratings - 500 thru 700 Series - Was 6558413 - A

9

PIN NSS - fork lock - 5/8'' (15,9mm) Dia. - Order Ref. 17 - Was 6630456 - A

10

SPRING NSS - 21/32'' (16,7MM) I.D. - Order Ref. 17 - WAS 6630454 - A

11

WASHER NSS - Order Ref. 17 - Was 6630455 - A

12

6630457

LEVER

13

KIT NLA - Ref. 2-5 - order Ref. 17 - Was 6668141 - A

14

6712931

DECAL, RATINGS 610MM See Illustration PALLET FORK/ NA6254 - 550 thru 873

14

7130160

DECAL, RATINGS 610MM See Illustration PALLET FORK/ NA6254 - no-text

15

6712932

DECAL, RATINGS 400MM See Illustration PALLET FORK/ NA6254 - 550 thru 873

15

7130133

DECAL, RATINGS 400MM See Illustration PALLET FORK/ NA6254 - no-text

16

7232349

STEP, MFR Was 7138104 - A

17

PIN KIT NLA - plastic knob - order 6680122 - Was 6676180 - A

17

6680122

KIT, PIN with metal knob

18

KNOB NLA - order 6680122 - Was 6677161 - A

19

6701603

DECAL ratings - 440 series

20

6564823

DECAL ratings - 843

21

6809953AR

KIT translation

21

6809953BR

KIT translation

21

KIT NLA - Order 6900867 Operator Manual - Was 7120432AR - A

21

KIT NLA - Order 6900867 Operator Manual - Was 7120432BR - A

21

6712931BR

KIT decal

21

6712931AR

KIT decal

21

6712931JP

KIT decal

21

6712932AR

KIT decal

21

6712932BR

KIT decal

21

6712932JP

KIT decal

22

DECAL PATENT PEND NLA - Was 6810666 - C

23

6675029

PIN
