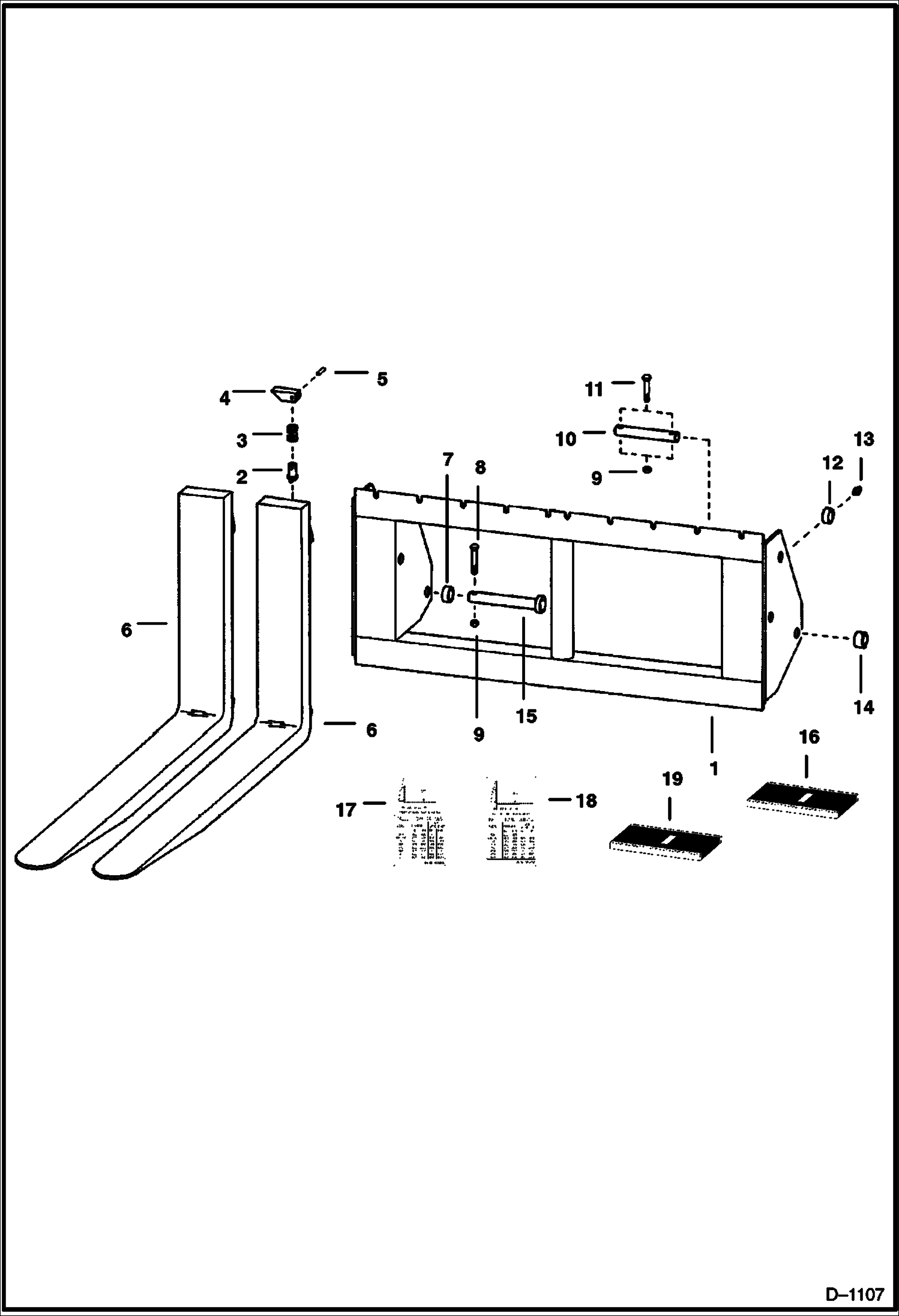

Запчасти Bobcat PALLET FORKS BRICK, BLOCK & PALLET FORK (Direct Mount) (Use on 444, 500) Loader

1

FRAME NLA

2

PIN NSS - fork lock (1/2'' or 5/8'' pin) You will have to drill the fork pin hole to 5/8'' - Order Ref. 19 - Was 6517884 - A

3

SPRING NSS - Order Ref. 19 - Was 6517882 - A

4

LEVER NSS - Order Ref. 19 - Was 756446B - A

5

666888

PIN

6

6660359

FORK 30'' - W/Ref. 2-5 - Was 6540181 - A

6

6660360

FORK 36'' - W/Ref. 2-5 - Was 6540180 - A

6

6660361

FORK, PALLET 42'' 42'' - W/Ref. 2-5 - Was 6540179 - A

6

6660362

FORK, PALLET 48'' 48'' - W/Ref. 2-5 - Was 6540178 - A

7

SPACER NLA - weld-on - Was 6502487

8

17C536

BOLT

9

91D5

NUT 5 Was 81D000005B - A

10

6502783

PIN

11

17C532

BOLT 5

12

6502332

BUSHING Weld On

13

10H35

FITTING, GREASE 10

14

6502898

COLLAR lock

15

6502779

PIN

16

KIT NLA - W/Ref. 2-5 - Order Ref. 19 - Was 6668141 - A

17

6712931

DECAL, RATINGS 610MM See Illustration PALLET FORK/ NA6254

17

7130160

DECAL, RATINGS 610MM See Illustration PALLET FORK/ NA6254 - no-text

18

6712932

DECAL, RATINGS 400MM See Illustration PALLET FORK/ NA6254

18

7130133

DECAL, RATINGS 400MM See Illustration PALLET FORK/ NA6254 - no-text

19

PIN KIT NLA - plastic knob - order 6680122 - Was 6676180 - A

19

6680122

KIT, PIN with metal knob
