Запчасти Bobcat PALLET FORKS 48 PALLET FORK (Floating Frame - For V417) Телескопические мини-погрузчики

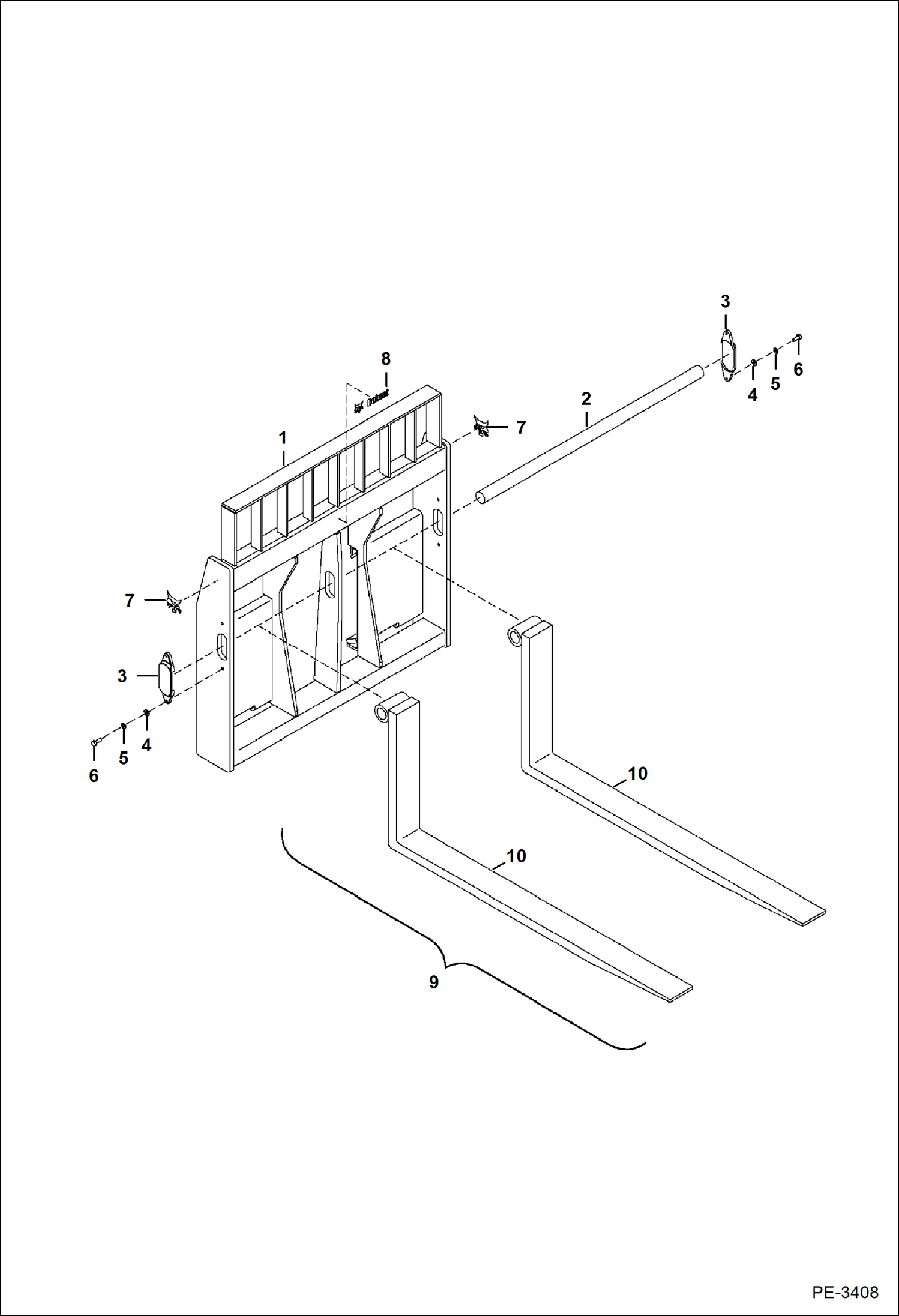

Схема запчастей Bobcat PALLET FORKS - 48 PALLET FORK (Floating Frame - For V417) Телескопические мини-погрузчики

Артикул

Название

Примечание

Количество

1

FRAME SALES #7140717 - less forks

2

6680348

PIN 49.5'' (1257,3 mm) long

3

6678174

RETAINER

4

27E8

WASHER 10 flat

5

4E8

WASHER lock

6

17C820

BOLT

7

6809228

DECAL

8

7109473

DECAL, LOGO BOBCAT AND HEAD

9

FORK SET SALES - 48'' high back - set of (2) 6677809 forks - Sales #6810301

9

FORK SET SALES - 48'' low back - set of (2) 6677808 forks - Sales #6810302

9

FORK SET SALES - 60'' low back - set of (2) 6686876 forks - Sales# 7107163

9

FORK SET SALES - brick/block V/H - set of (2) 7141767 forks - Sales #7145005

9

FORK SET SALES - brick/block ITA - set of (2) 7144249 forks - Sales #7145006

10

6677809

FORK 48'' high back - one fork only

10

6677808

FORK 48'' low back - one fork only

10

6686876

FORK 60'' low back - one fork only

10

7141767

FORK, BRICK BLOCK V/H brick/block V/H - one fork only

10

7144249

FORK, BRICK BLOCK ITA brick/block ITA - one fork only

Выбрано товаров: 18
