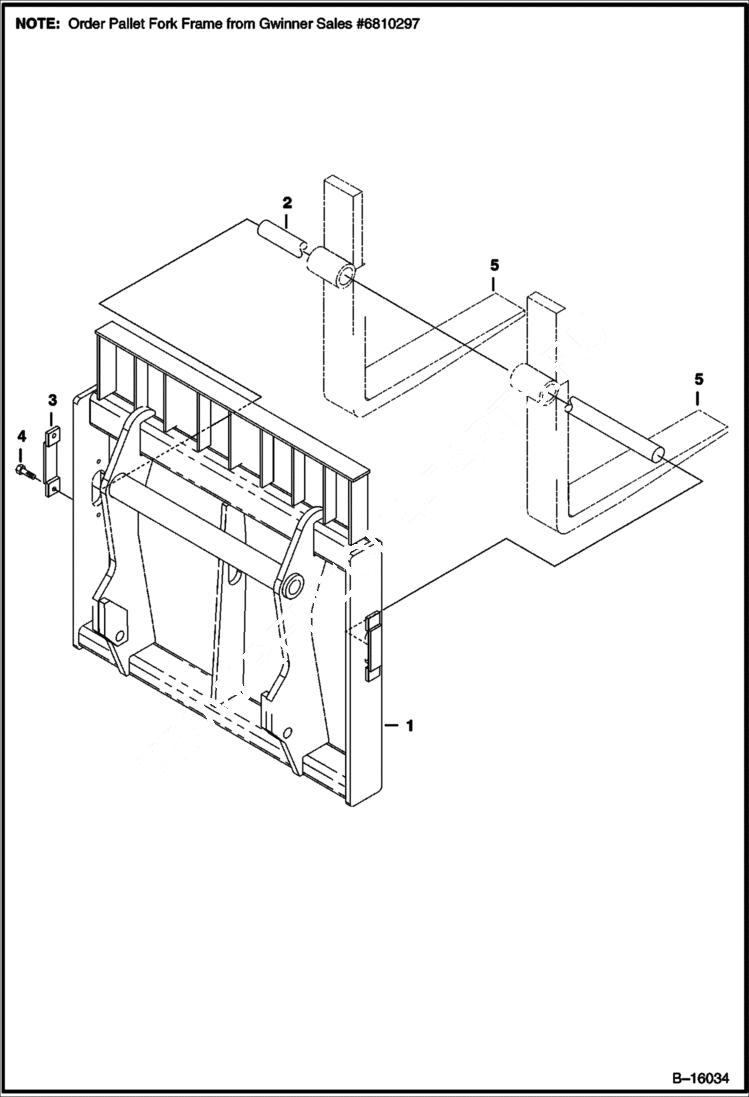

Запчасти Bobcat PALLET FORKS 48 PALLET FORK (S/N 029700101 & Above) Телескопические мини-погрузчики

1

FRAME SALES - W/Ref. 2-4 - SEE NOTE

2

6678175

PIN fork - 50.25'' (1276,35 mm) long

3

6678174

RETAINER fork pin

4

18C624

BOLT

5

6677808

FORK 48'' (1219 mm) Low Back

5

6677809

FORK 48'' (1219 mm) High Back

5

6686876

FORK 60'' (1524.0 mm)

5

6686877

FORK 72'' (1828.8 mm)
