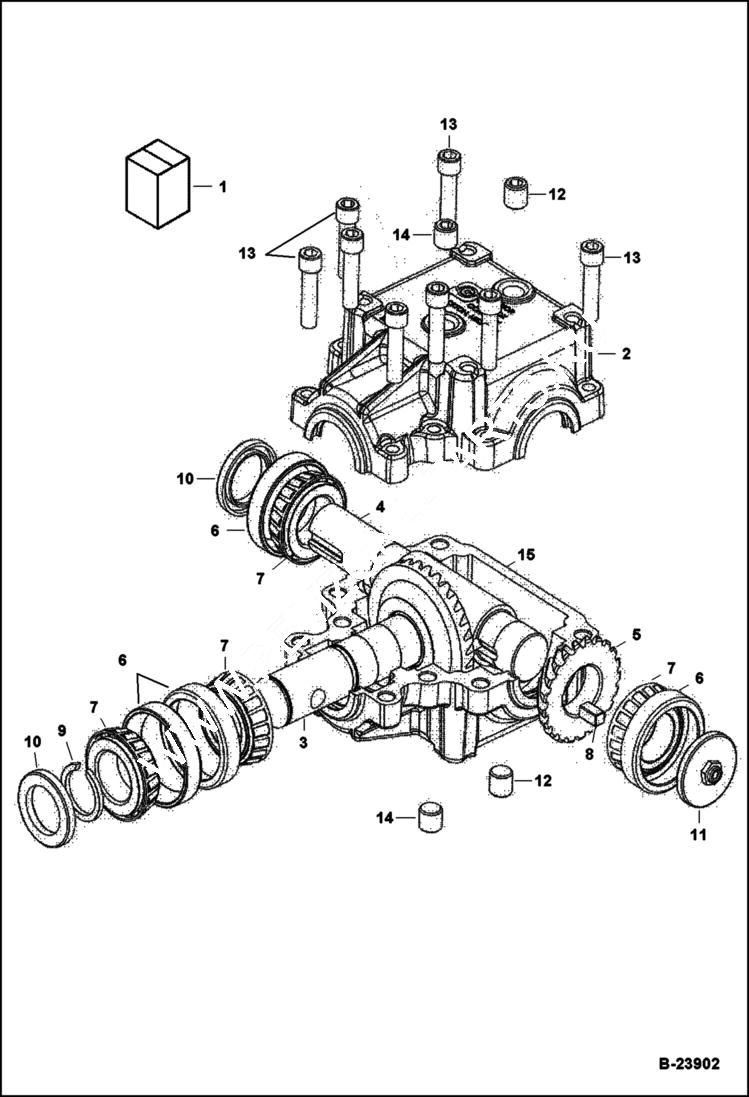

Запчасти Bobcat MOWER MOWER (Gearbox) (MM54 AB4D) (MM66 AB4C) Компактные тракторы

1

7148742

GEARBOX W/Ref. 2-15

2

7001471

HOUSING, GEARBOX

3

7001488

SHAFT, GEARBOX INPUT gearbox input

4

7001472

SHAFT, OUTPUT output

5

7001473

GEAR, BEVEL

6

7001474

CUP, BEARING bearing

7

7001475

CONE, BEARING bearing

8

7001476

KEY, SHAFT shaft

9

6679796

RING, RETAINING

10

7001477

SEAL

11

7001478

CAP, END

12

6674790

PLUG

13

73G520

SCREW

14

7001479

PLUG

15

7001470

HOUSING, GEARBOX
