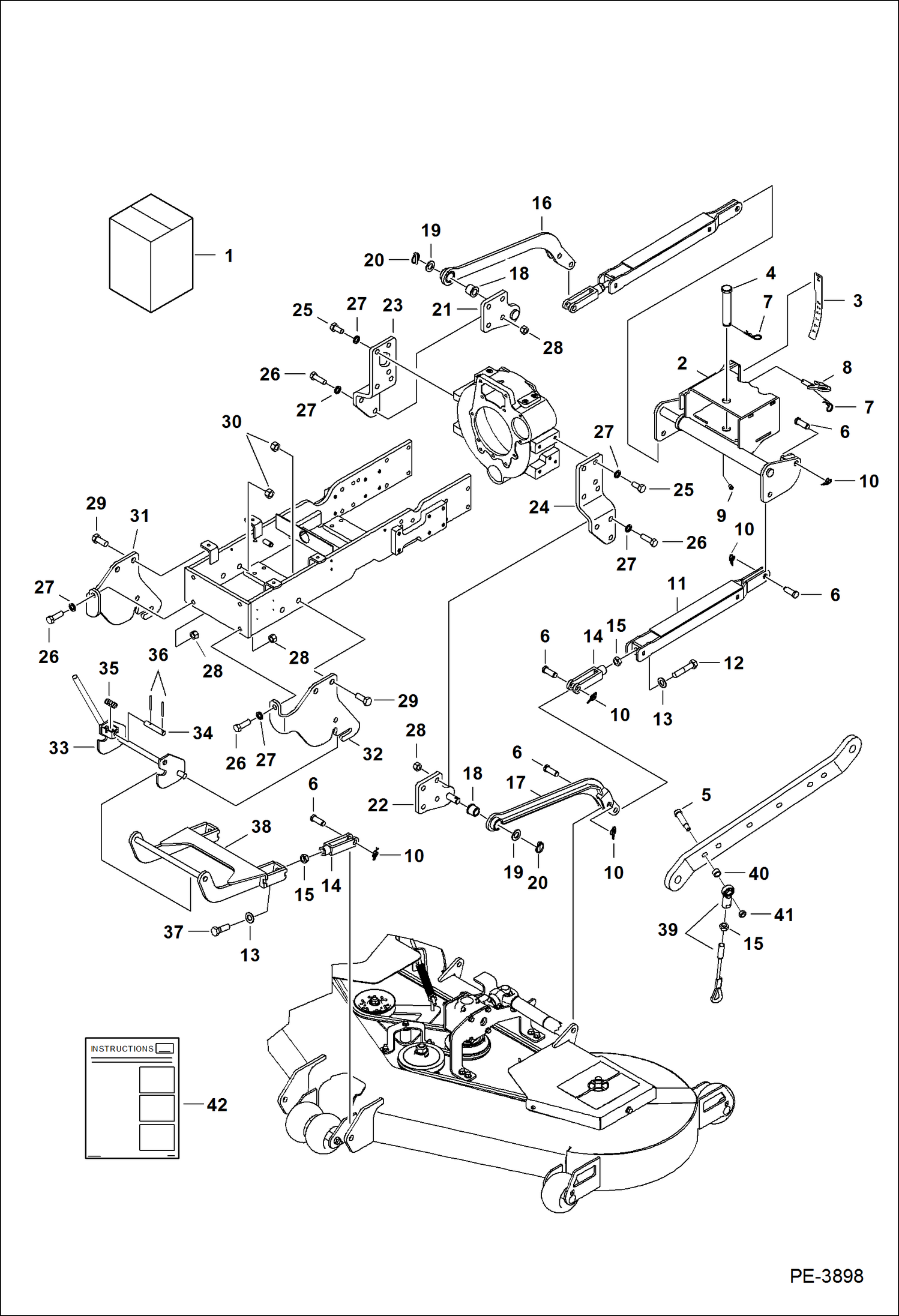

Запчасти Bobcat MOWER MOWER (Mounting Kit) (MM66 AB4C) Компактные тракторы

1

KIT, MOUNT SALES #7164820 - Ref. 2-42

2

7160843

FRAME, LIFT

3

7168601

DECAL, HEIGHT ADJUST

4

7160857

PIN

5

6728473

BOLT, SHOULDER pre-applied thread locker - Was 38C1036 - A

6

2F10146

PIN

7

1318565

COTTER PIN

8

7148683

PIN

9

10H25

FITTING, GREASE 5

10

7148757

RING, RETAINING

11

7160871

LINK, LIFT REAR

12

18C1052

BOLT

13

29E10

WASHER

14

2J10415

CLEVIS

15

8D10

NUT

16

7160863

LINK, LIFT RH W/Ref. 18

17

7160860

LINK, LIFT LH W/Ref. 18

18

7148749

BUSHING, PRESS FIT

19

7148620

WASHER

20

7148621

PIN, LOCK

21

7164620

MOUNT, PIVOT REAR

22

7160858

MOUNT, PIVOT REAR

23

7161044

PLATE RH - for pre-Gen V loaders

24

7161045

PLATE LH - for Gen V loaders

25

5CM1430

BOLT

26

1CM1445

BOLT

27

6EM140

WASHER lock

28

53DM14

NUT

29

17C1024

BOLT

30

93D10

NUT

31

7160873

PLATE LH

32

7160874

PLATE RH

33

7160896

LATCH, FRONT

34

7148636

PIN, LATCH

35

7148751

SPRING

36

14J1832

PIN

37

18C1032

BOLT

38

7162752

LINK, FRONT

39

7169746

CABLE, LINKAGE

40

7169786

SPACER

41

63D8

NUT Was 85D8 - B

42

6987141

INSTRUCTIONS
