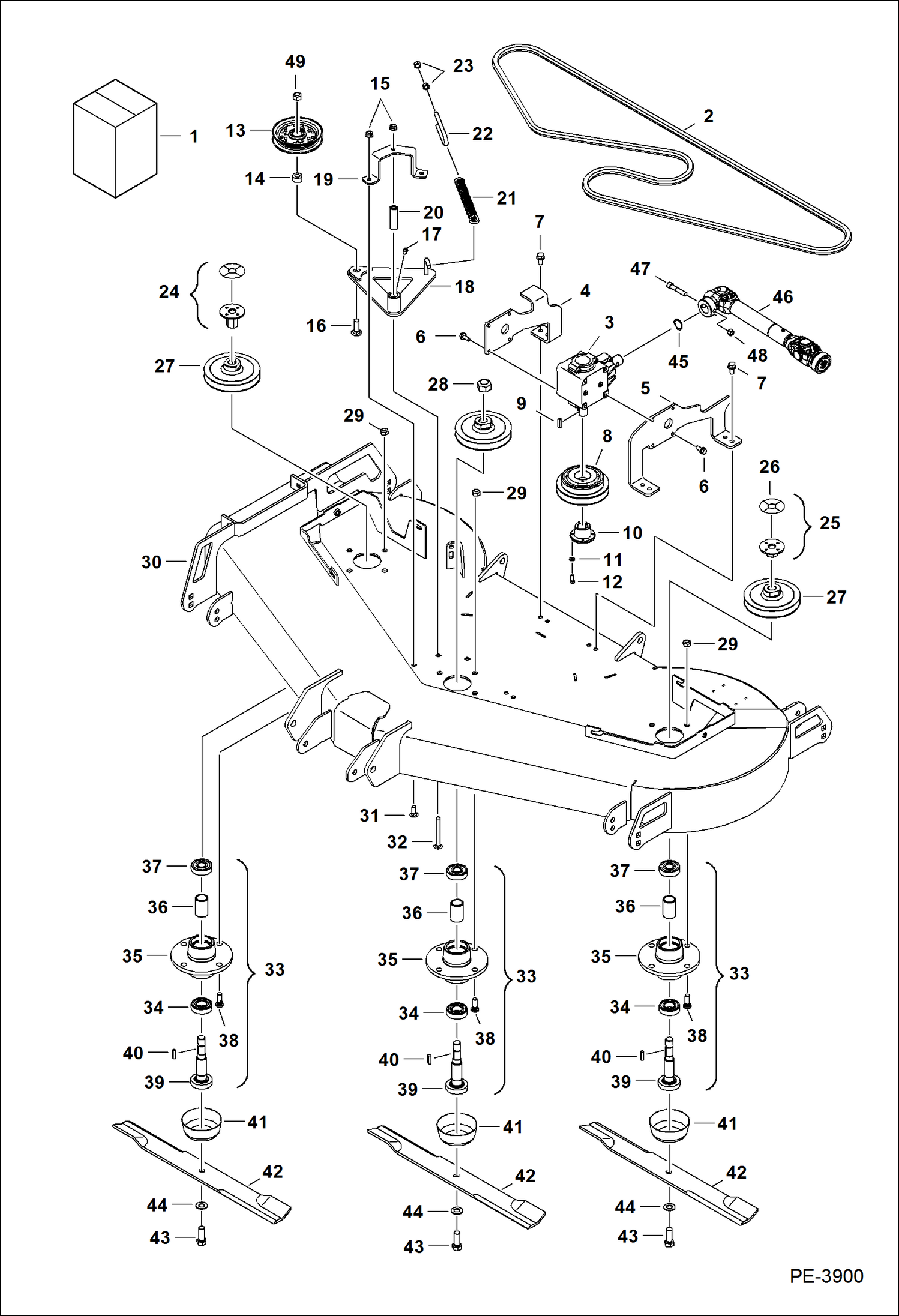

Запчасти Bobcat MOWER MOWER (Belt, Pulleys & Blades) (MM66 AB4C) Компактные тракторы

1

MOWER SALES #7148766 - mid-mount - 66''

2

7148745

BELT, MOWER 66

3

7148742

GEARBOX See Illustration MOWER/ B23902

4

7148782

BRACKET RH

5

7148783

BRACKET LH

6

31C512

BOLT

7

31C612

BOLT

8

7148722

PULLEY, DRIVE

9

7J3100

KEY

10

7148743

HUB

11

17C412

BOLT 5

12

4E4

WASHER

13

7148748

PULLEY, IDLER

14

NSS - BUSHING order Ref. 13

15

57D6

NUT 5

16

37C824

BOLT

17

10H25

FITTING, GREASE 5

18

7148785

MOUNT, TENSIONER

19

7148803

BRACE, TENSIONER

20

7148762

TUBE, TENSIONER

21

7148747

SPRING

22

7148739

U-BOLT

23

63D6

NUT

24

7164812

NUT, INDICATOR ASSY RH

25

7164813

NUT, INDICATOR ASSY LH

26

7136693

DECAL, INDICATOR

27

7148699

PULLEY, MOWER

28

92D12

NUT

29

86D7

NUT

30

7148800

FRAME, MAIN ASSY

31

37C616

BOLT

32

37C656

BOLT

33

7148690

SPINDLE, MOWER W/Ref. 34 - 39

34

6680289

BEARING Was 7173293 - A

35

7148691

HUB, SPINDLE

36

7148693

SPACER

37

7148697

BEARING

38

7148734

BOLT

39

7148736

SHAFT, SPINDLE

40

7J3100

KEY

41

7148625

CAP, SPINDLE

42

7148755

BLADE, MOWER 66

43

17C924

BOLT

44

29E9

WASHER

45

21J16

SNAP RING

46

7148732

SHAFT, DRIVE See Illustration MOWER/ PE3837

47

73G632

SCREW

48

93D6

NUT

49

85D8

NUT, 5
