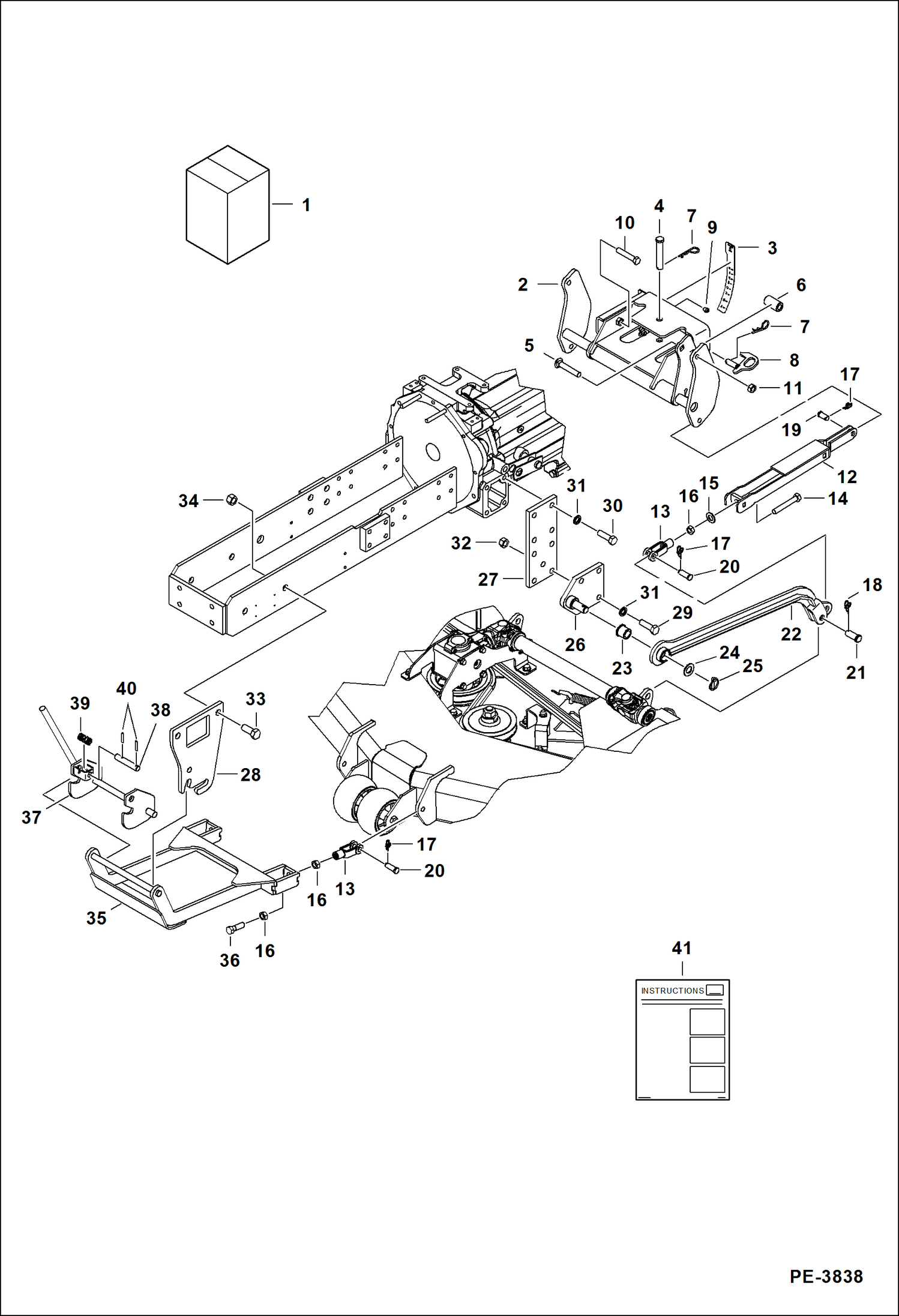

Запчасти Bobcat MOWER MOWER (Mounting Kit) (MM54 AB4D) Компактные тракторы

1

KIT SALES #7148720 - mount - Ref. 2-41

2

7148681

FRAME, LIFT Also Order Ref. 3

3

7148685

DECAL, ADJUST HEIGHT

4

7148642

PIN clevis

5

37C848

BOLT carriage

6

7148682

BUSHING

7

1318565

COTTER PIN

8

7148683

PIN

9

10H25

FITTING, GREASE 5

10

17C844

BOLT

11

85D8

NUT, 5

12

7148645

LINK, LIFT REAR

13

7148752

CLEVIS

14

17C848

BOLT

15

29E9

WASHER

16

7D8

NUT 5

17

6631418

RING, RETAINING

18

7148757

RING, RETAINING

19

7148626

PIN, CLEVIS

20

4F8127

PIN

21

7148623

PIN, CLEVIS

22

7148628

LINK, LIFT RH W/Ref. 23

22

7148629

LINK, LIFT LH W/Ref. 23

23

7148749

BUSHING, PRESS FIT

24

7148620

WASHER

25

7148621

PIN, LOCK

26

7148617

MOUNT, PIVOT REAR

27

7148612

PLATE, MOUNT LOADER

28

7148613

PLATE, MOUNT LINK FRONT

29

1CM1445

BOLT

30

5CM1445

BOLT, 14MM

31

6EM140

WASHER

32

53DM14

NUT

33

17C1024

BOLT

34

93D10

NUT

35

7162183

LINK, FRONT

36

17C824

BOLT 5

37

7148618

LATCH, FRONT

38

7148636

PIN, LATCH

39

7148751

SPRING

40

14J1832

PIN

41

6987141

INSTRUCTIONS
