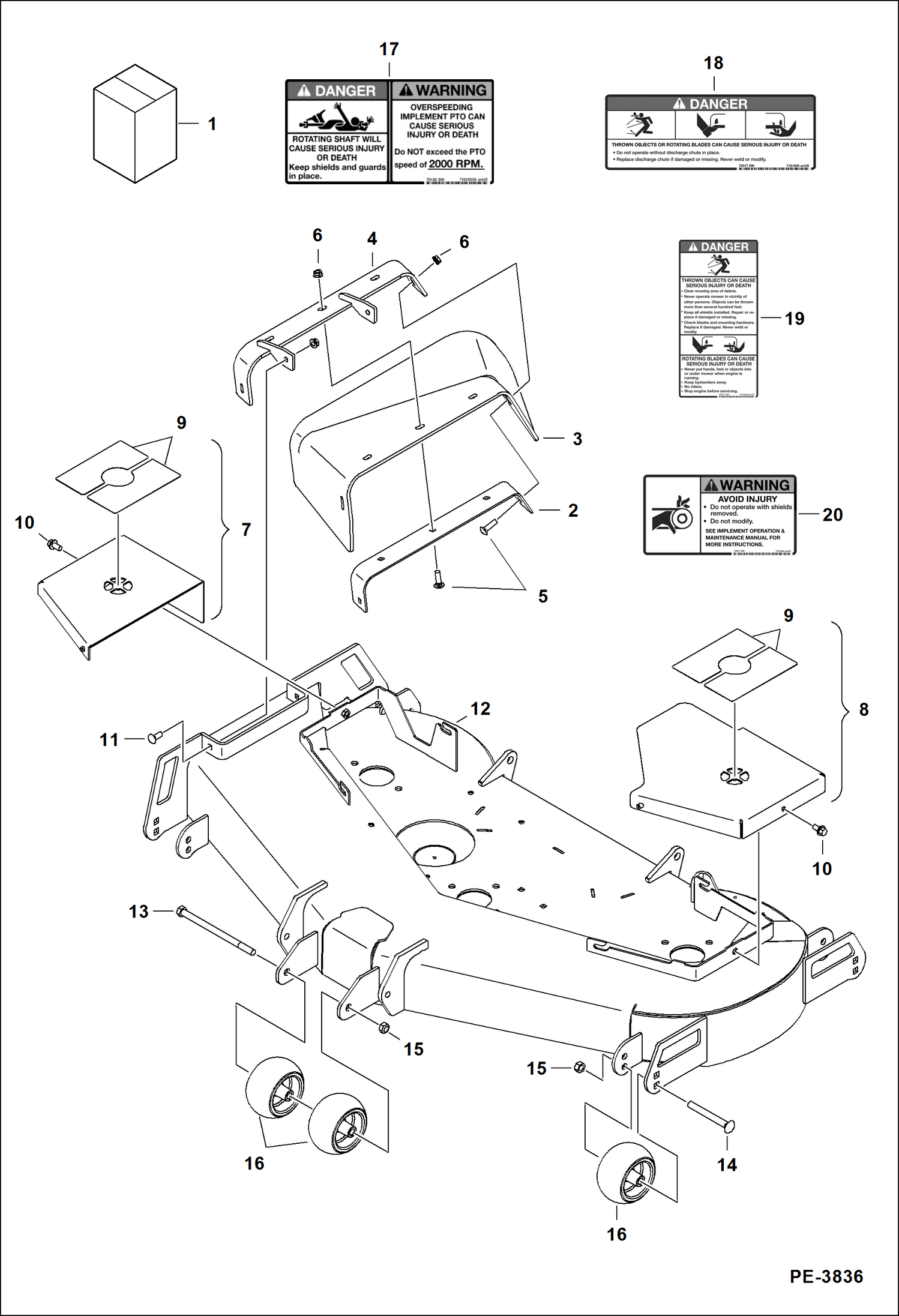

Запчасти Bobcat MOWER MOWER (Shields & Decals) (MM54 AB4D) Компактные тракторы

1

MOWER SALES #7148754 - mid-mount 54''

2

7148686

BRACKET, DISCHARGE

3

7236064

COVER, DISCHARGE Was 7148688 - A

4

7148692

MOUNT, DISCHARGE

5

10C620

BOLT

6

57D6

NUT 5

7

7164810

SHIELD, ASSY R.H. - W/Ref. 9

8

7164811

SHIELD, ASSY L.H. - W/Ref. 9 & 20

9

7148640

TREAD, SAFETY

10

31C612

BOLT

11

37C616

BOLT

12

7148700

FRAME, MAIN ASSY

13

17C8128

BOLT

14

37C872

SCREW

15

85D8

NUT, 5

16

7148738

WHEEL, MOWER

17

7161603

DECAL, SPEED PTO

18

7161605

DECAL, DANGER danger

19

7161602

DECAL, DANGER danger

20

7161604

DECAL, WARNING warning
