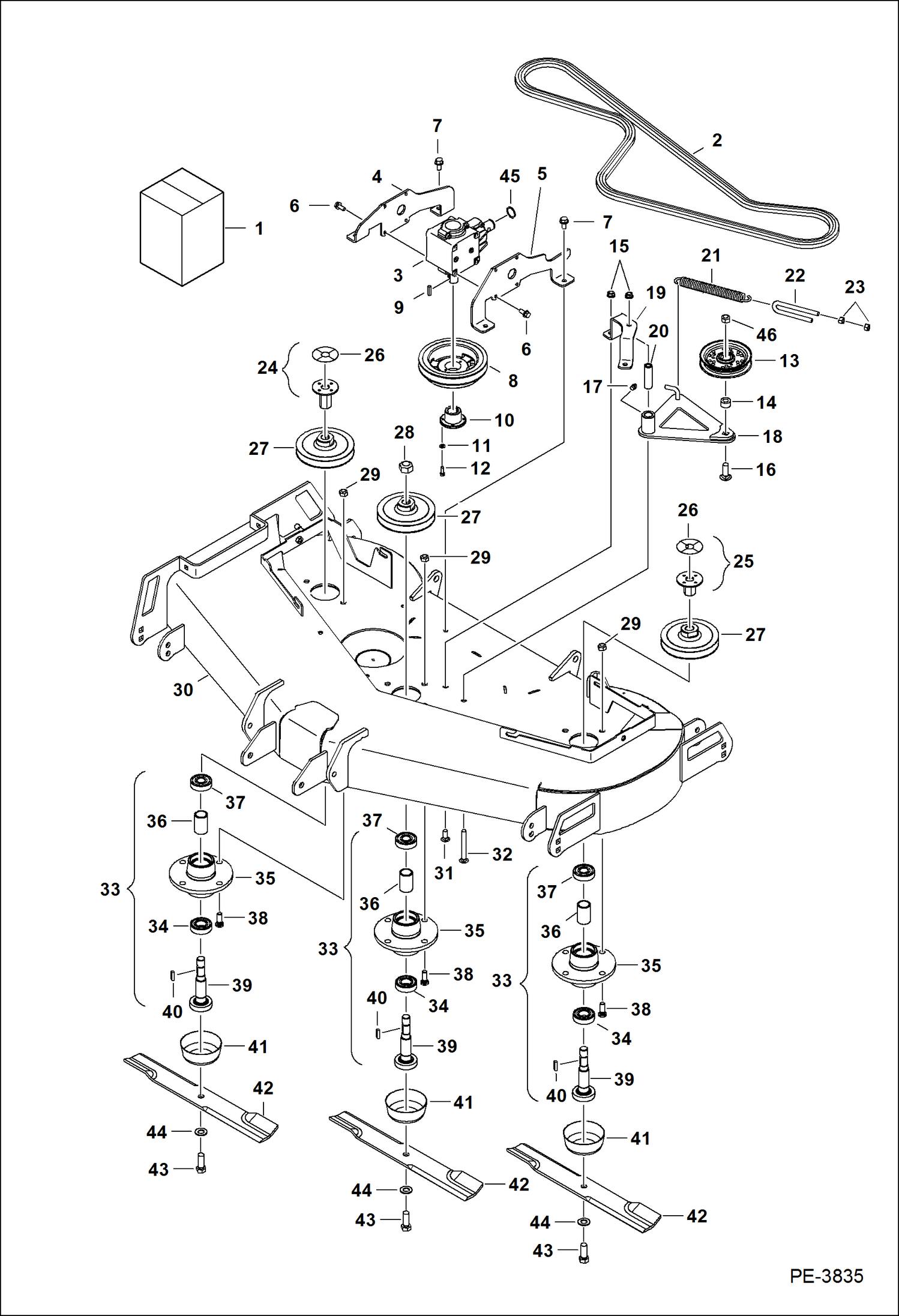

Запчасти Bobcat MOWER MOWER (Belt, Pulleys & Blades) (MM54 AB4D) Компактные тракторы

1

MOWER SALES #7148754 - mid-mount 54''

2

7148658

BELT, MOWER 54

3

7148742

GEARBOX See Illustration MOWER/ B23902

4

7148672

BRACKET R.H.

5

7148673

BRACKET L.H.

6

31C512

BOLT

7

31C612

BOLT

8

7148698

PULLEY, DRIVE

9

7J3100

KEY

10

7148743

HUB

11

17C412

BOLT 5

12

4E4

WASHER

13

7148748

PULLEY, IDLER idler - W/Ref. 14

14

BEARING NSS - Order Ref. 13

15

97D6

NUT 10

16

37C824

BOLT carriage

17

10H25

FITTING, GREASE 5

18

7148715

MOUNT, TENSIONER tensioner

19

7148803

BRACE, TENSIONER tensioner

20

7148762

TUBE, TENSIONER tensioner

21

7148747

SPRING

22

7148739

U-BOLT

23

63D6

NUT

24

7164812

NUT, INDICATOR ASSY R.H. - W/Ref. 26

25

7164813

NUT, INDICATOR ASSY L.H. - W/Ref. 26

26

7136693

DECAL, INDICATOR

27

7148699

PULLEY, MOWER

28

92D12

NUT

29

86D7

NUT

30

7148700

FRAME, MAIN ASSY

31

37C616

BOLT carriage

32

37C656

BOLT carriage

33

7148690

SPINDLE, MOWER W/Ref. 34-39

34

6680289

BEARING Was 7173293 - A

35

7148691

HUB, SPINDLE

36

7148693

SPACER

37

7148697

BEARING

38

7148734

BOLT

39

7148736

SHAFT, SPINDLE

40

7J3100

KEY

41

7148625

CAP, SPINDLE

42

7148655

BLADE, MOWER 54

43

17C924

BOLT

44

29E9

WASHER

45

21J16

SNAP RING

46

85D8

NUT, 5
