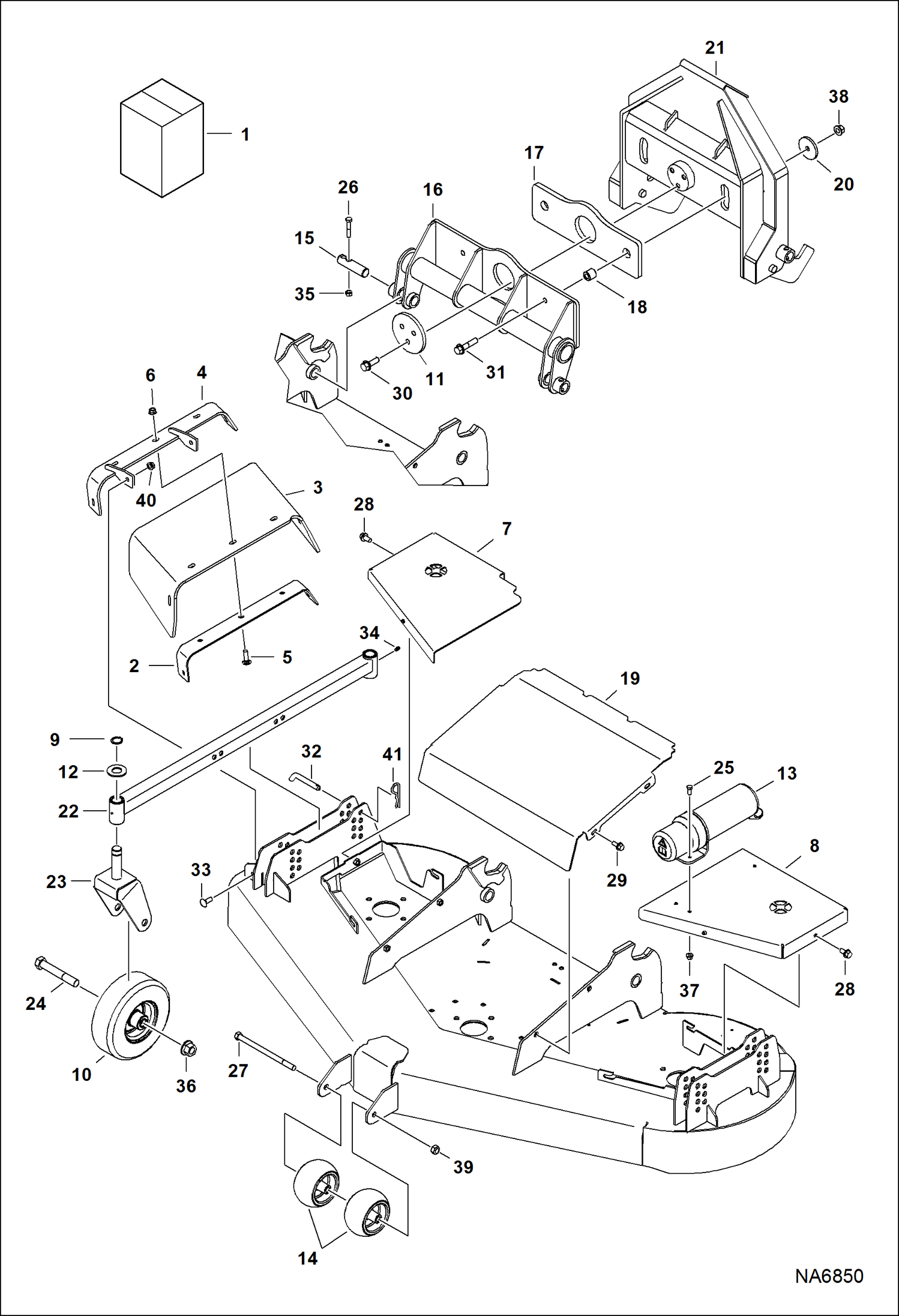

Запчасти Bobcat MOWER MOWER (Shields) (66 AW44) Универсальный мини-грузовик

1

MOWER See Illustration MOWER/ NA6849 - Ref. 2-46 - Also include Ref. 2-40 on this page - SALES #7211700 - 66'' front mount

2

7148686

BRACKET, DISCHARGE

3

7236064

COVER, DISCHARGE Was 7148688 - A

4

7148692

MOUNT, DISCHARGE

5

10C620

BOLT

6

57D6

NUT 5

7

7198743

SHIELD ASSY RH - W/7161604 decal

8

7199178

SHIELD ASSY LH - W/7161604 decal

9

22J16

SNAP RING Was 6560382 - B,D

10

6685620

TIRE, MOWER ASSY

11

6713557

BRACKET

12

6805550

WASHER

13

7108147

CONTAINER, MANUAL W/ 6686517 tube

14

7148738

WHEEL, MOWER

15

7183277

PIN

16

7198740

SWIVEL ASSY

17

7199181

BRACKET

18

7199184

BUSHING, SPACER

19

7199185

SHIELD, BELT

20

7199187

WASHER

21

7207685

MOUNT, SWIVEL

22

7210211

MOUNT, WHEEL

23

7210251

CASTER, WHEEL

24

17C1280

BOLT

25

17C512

BOLT 5

26

17C632

BOLT 5

27

17C8128

BOLT

28

31C612

BOLT

29

31C614

BOLT

30

31C824

BOLT 10

31

31C836

BOLT

32

6906654

PIN, W/SNAP PIN W/Ref. 41 - Was 6734335 pin & 6649706 lock pin - B

33

37C616

BOLT

34

10H35

FITTING, GREASE 10

35

63D6

NUT

36

83D12

NUT

37

83D5

NUT 5

38

83D8

NUT 5

39

85D8

NUT, 5

40

97D6

NUT 10

41

6648587

PIN, SNAP
