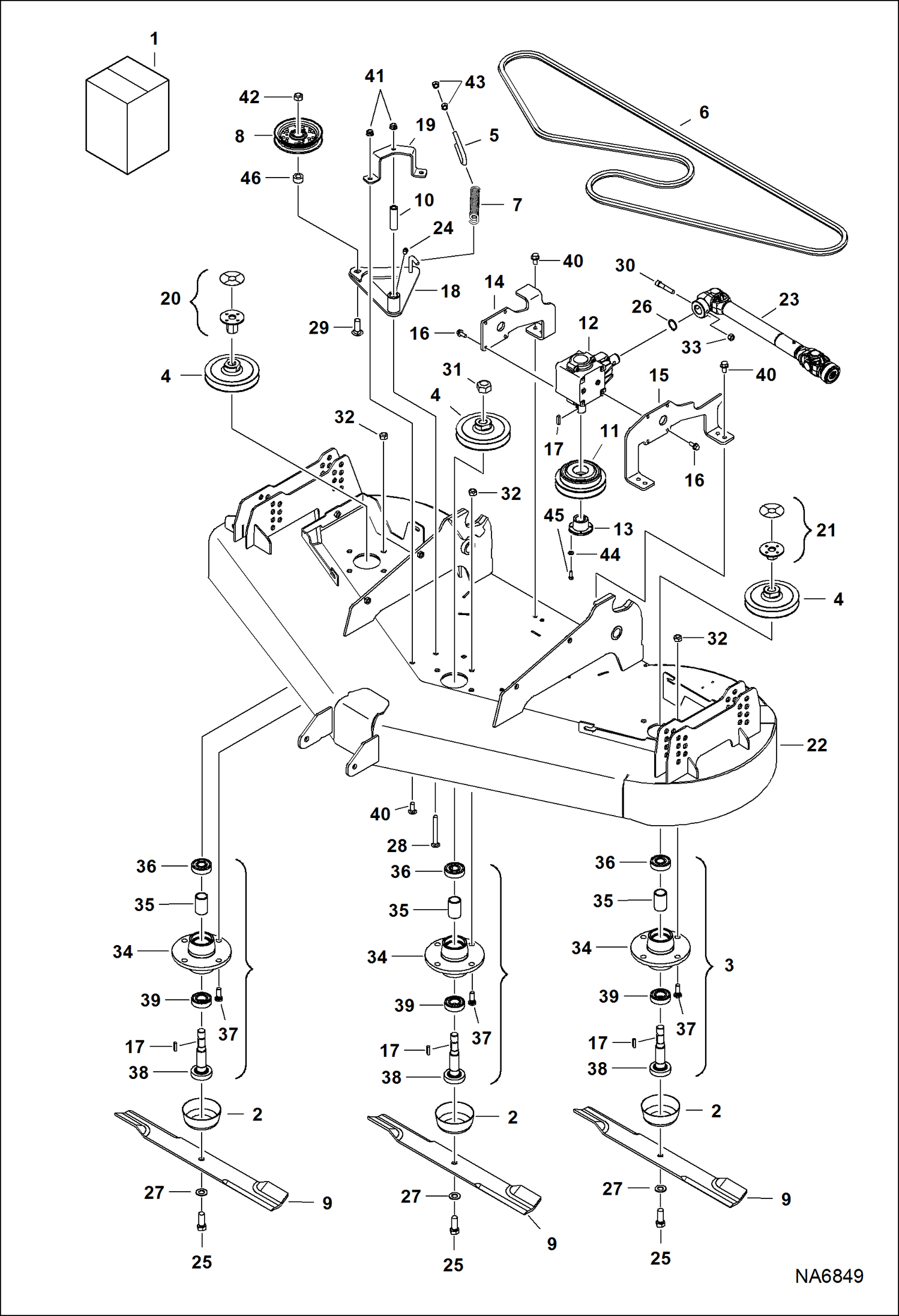

Запчасти Bobcat MOWER MOWER (Main Frame, Belt, Pulleys & Blades) (66 AW44) Универсальный мини-грузовик

1

MOWER See Illustration MOWER/ NA6850 - Ref. 2-41 - Also includes Ref. 2-46 on this page - SALES #7211700 - 66'' front mount

2

7148625

CAP, SPINDLE

3

7148690

SPINDLE, MOWER Ref. 17 & 34-39

4

7148699

PULLEY, MOWER

5

7148739

U-BOLT

6

7148745

BELT, MOWER 66

7

7148747

SPRING

8

7148748

PULLEY, IDLER Ref. 46

9

7148755

BLADE, MOWER 66

10

7148762

TUBE, TENSIONER

11

7148722

PULLEY, DRIVE

12

7148742

GEARBOX See Illustration MOWER/ B23902

13

7148743

HUB

14

7148782

BRACKET RH

15

7148783

BRACKET LH

16

31C512

BOLT

17

7J3100

KEY

18

7148785

MOUNT, TENSIONER

19

7148803

BRACE, TENSIONER

20

7164812

NUT, INDICATOR ASSY RH

21

7164813

NUT, INDICATOR ASSY LH

22

7210208

FRAME, MAIN ASSY

23

7211696

SHAFT, DRIVE See Illustration MOWER/ NA6900

24

10H25

FITTING, GREASE 5

25

17C924

BOLT

26

21J16

SNAP RING

27

29E9

WASHER

28

37C656

BOLT

29

37C824

BOLT

30

73G632

SCREW

31

92D12

NUT

32

86D7

NUT

33

85D6

NUT, 5 Was 93D6 - B

34

7148691

HUB, SPINDLE

35

7148693

SPACER

36

7148697

BEARING

37

7148734

BOLT

38

7148736

SHAFT, SPINDLE

39

7173293

BEARING

40

31C612

BOLT

41

57D6

NUT 5

42

85D8

NUT, 5

43

63D6

NUT

44

4E4

WASHER

45

17C412

BOLT 5

46

BEARING NSS - Order Ref. 8
