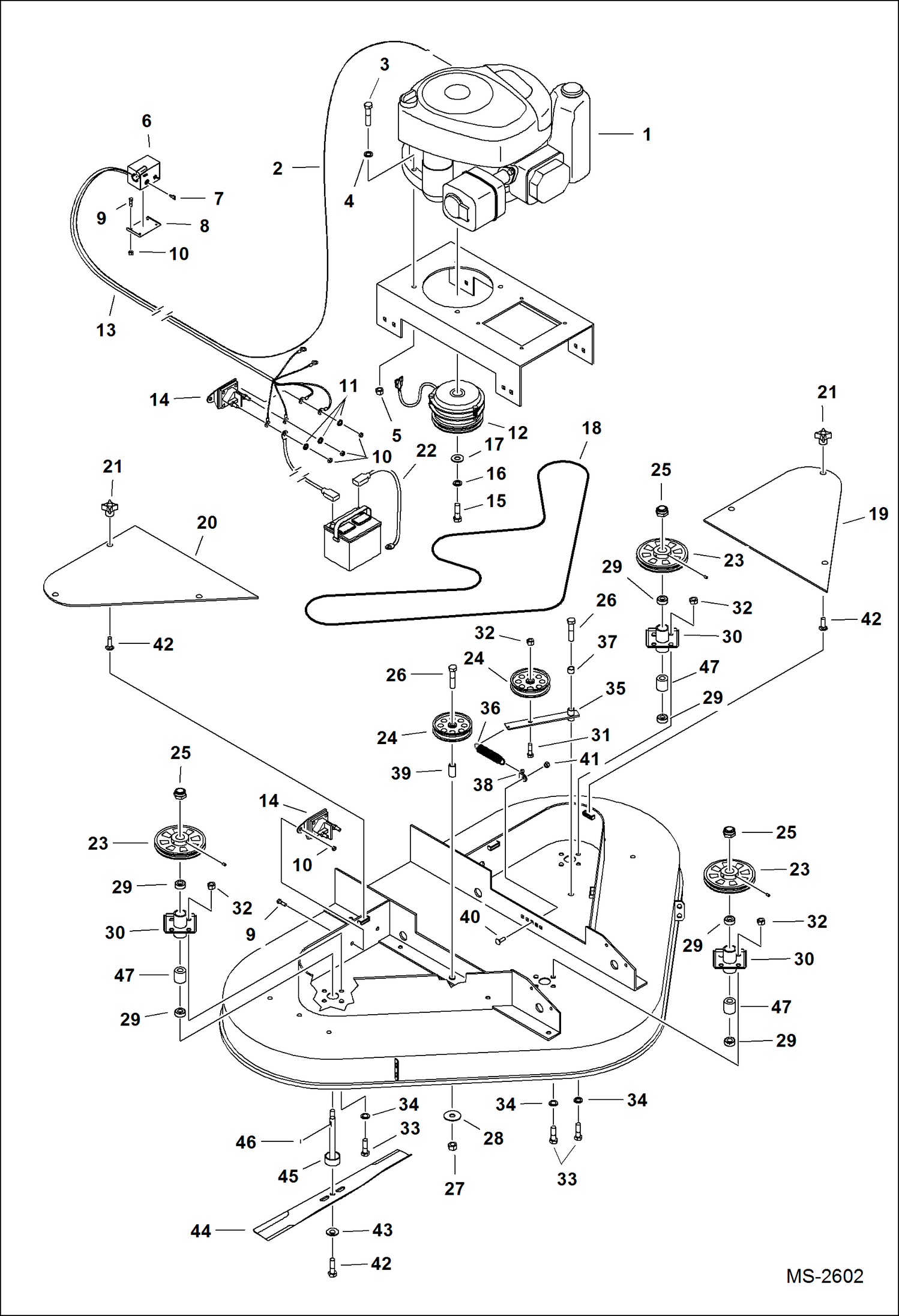

Запчасти Bobcat MOWER MOWER (Engine, Belt & Blade) (60 A3F4) Универсальный мини-грузовик

1

6691389

ENGINE

2

6693199

CABLE

3

17C516

BOLT

4

27E5

WASHER

5

59D5

NUT 5

6

6697941

CONTROLS complete

6

6697940

CONTROL HARNESS inside control box

6

7008547

SWITCH, IGNITION inside control box - includes key

7

7001480

SWITCH, TOGGLE

8

6693930

BRACKET

9

45G1008

BOLT

10

12D10

NUT

11

25E10

WASHER

12

6691397

CLUTCH

13

6698607

HARNESS, STARTER MOWER

14

7010575

SOLENOID, STARTER

15

17C732

BOLT

16

27E7

WASHER

17

6691390

WASHER

18

6691401

BELT

19

6691380

DRIVE COVER L.H.

20

6691379

DRIVE COVER R.H.

21

6647668

KNOB

22

6691404

CABLE

23

6691398

PULLEY

24

6691391

PULLEY

25

84D12

NUT

26

17C1064

BOLT 5

27

59D10

NUT

28

27E10

WASHER

29

6691399

BEARING

30

6691400

HOUSING

31

17C1040

BOLT

32

59D8

NUT 5

33

17C816

BOLT

34

7028225

WASHER Was 25E43 - A

35

6691363

ARM

36

6691393

SPRING

37

6691367

SPACER

38

6691365

BRACKET

39

6691364

SPACER

40

17C612

BOLT 5

41

59D6

NUT

42

17C616

BOLT 5

43

6691403

WASHER

44

6691402

BLADE

45

6691383

SHAFT

46

6691382

KEY

47

7011977

SPACER
