Запчасти Bobcat MOWER MOWER (Main Frame) (60 A3F4) Универсальный мини-грузовик

1

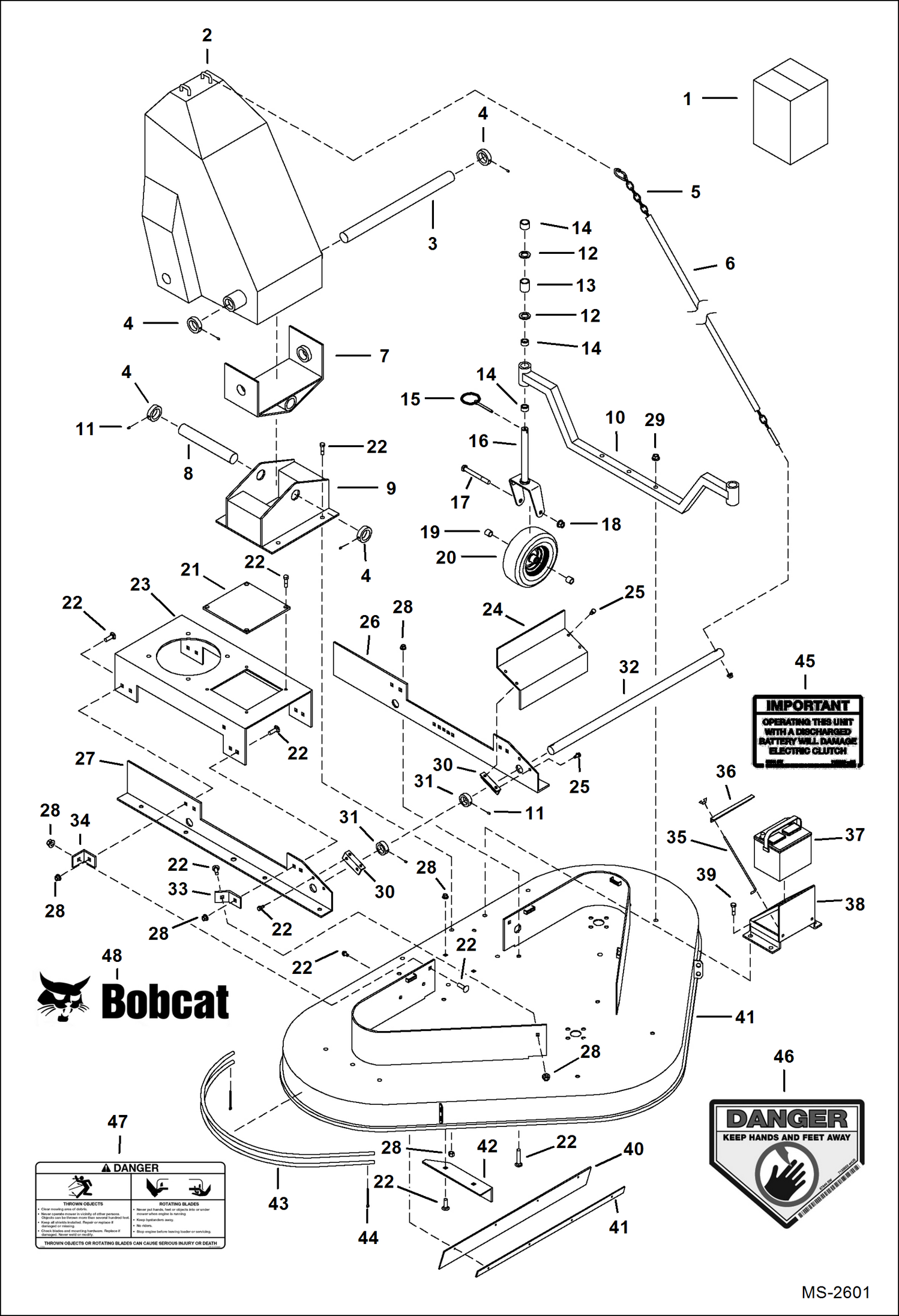

MOWER See Illustration MOWER/ MS2602 - SALES #7127214

2

6698077

ADAPTER

3

6691346

LIFT BAR

4

COLLAR 3/4''

5

6693521

CHAIN

6

6693524

COVER

7

7001451

BRACKET

8

7001452

PIN, PIVOT

9

7001450

BRACKET

10

6693408

MOUNT

11

1F416

PIN

12

25E27

WASHER

13

7010630

SPACER

14

6691405

BEARING

15

6691388

PIN

16

6691384

CASTER

17

17C1296

BOLT

18

59D12

NUT

19

6691386

SPACER

20

6691406

WHEEL

21

6691378

PLATE

22

17C612

BOLT 5

23

6691377

MOUNT

24

7001453

COVER, FRONT

25

84G1912

BOLT

26

6691369

BRACKET

27

6691368

BRACKET

28

59D6

NUT

29

59D8

NUT 5

30

6691371

BRACKET

31

COLLAR 1''

32

6691347

LIFT BAR

33

6691370

BRACKET

34

6691361

BRACKET

35

7009045

BOLT, HOLDDOWN set of 2 bolts

36

6691348

BRACKET

37

BATTERY NLA - Exide- GTR

38

6691349

MOUNT

39

84G3112

BOLT 5

40

7010191

DEFLECTOR, REAR Was 7001448 - A

41

7001449

BRACKET

42

6691376

DEFLECTOR

43

6691381

BUMPER

44

6691407

PIN

45

7132823

DECAL

46

7132822

DECAL

47

6734440

DECAL, DANGER

48

7109473

DECAL, LOGO BOBCAT AND HEAD
