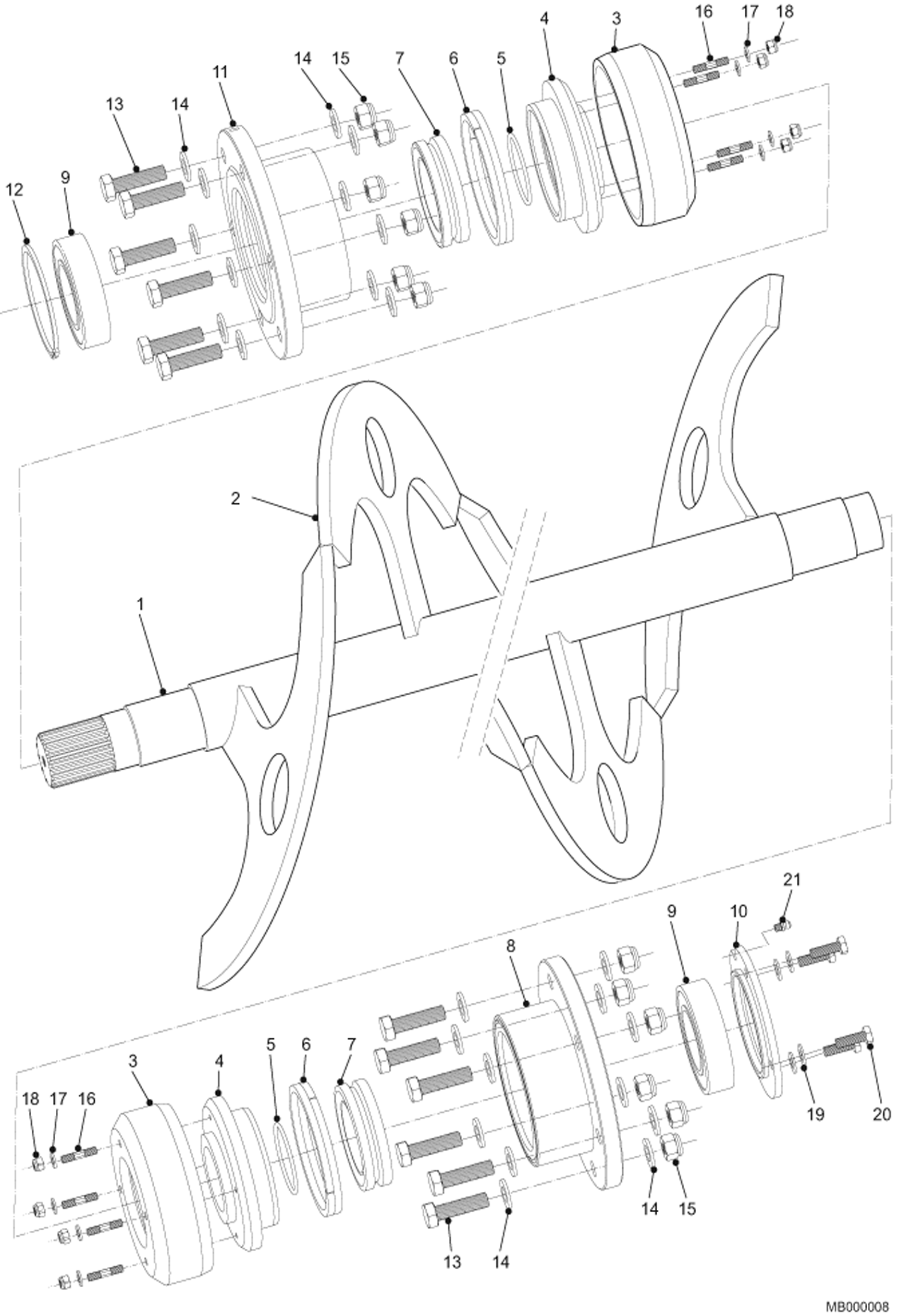

Запчасти Bobcat MIXING BUCKET Paddle shaft 991001320 & above Loader

1

6690204

Shaft

2

6674606

Blade, mixer

3

6690207

Flange cover

4

6690208

Seal seat

5

6690209

O-RING, SEAL Was 6680209 - D

6

6688660

Greased rope

7

6674603

Seal, hub

8

6690211

Flange

9

6674601

Bearing ball

10

6674613

Cover, outer

11

6690210

Motor side flange

12

6674600

Circlip

13

6690171

Bolt Hex Head

14

6690170

Washer

15

6690169

Self locking nut

16

6690206

Bolt Hex Head

17

6690205

Washer

18

6690984

Self locking nut

19

6690184

Washer

20

6690185

Bolt Hex Head

21

6690212

Grease nipple
