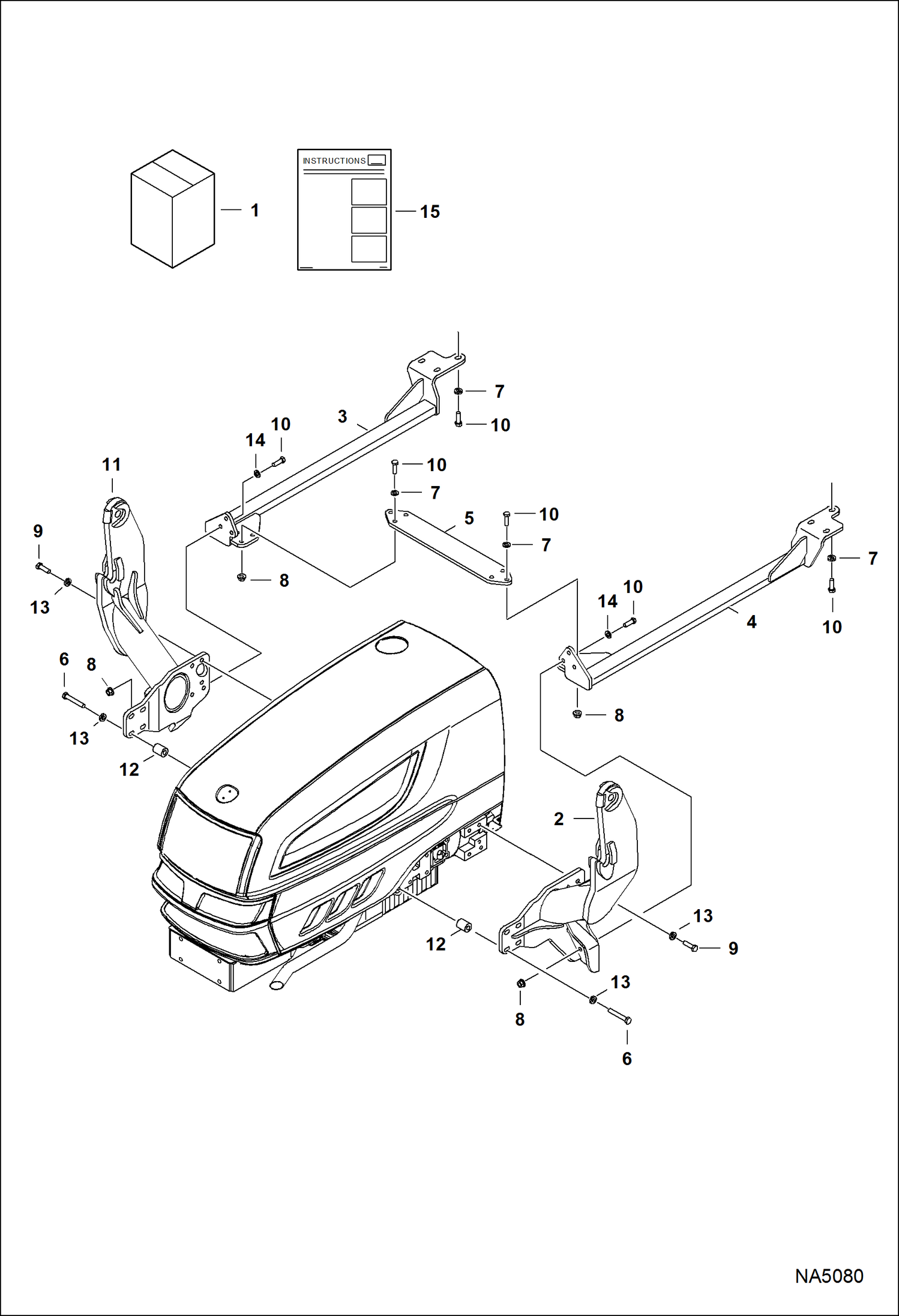

Запчасти Bobcat LOADER TRACTOR LOADER 9TL (AKPW, AL4F) (Mounting Kit) Компактные тракторы

1

7189046

KIT, MOUNTING Ref. 2-15

2

7190509

MOUNT, LIFT ARM LH

3

7182497

BRACE, MOUNT LIFT ARM RH

4

7182514

BRACE, MOUNT LIFT ARM LH

5

7182517

PLATE, BRACE

6

7170385

BOLT

7

7189179

WASHER

8

43DM14

NUT

9

7170386

BOLT

10

55CM1445

SCREW Was 7CM1445 - B

11

7190384

MOUNT, LIFT ARM RH

12

7187467

BUSHING, SPACER

13

7170387

WASHER

14

18EM1426

WASHER

15

6989586

INSTRUCTIONS
