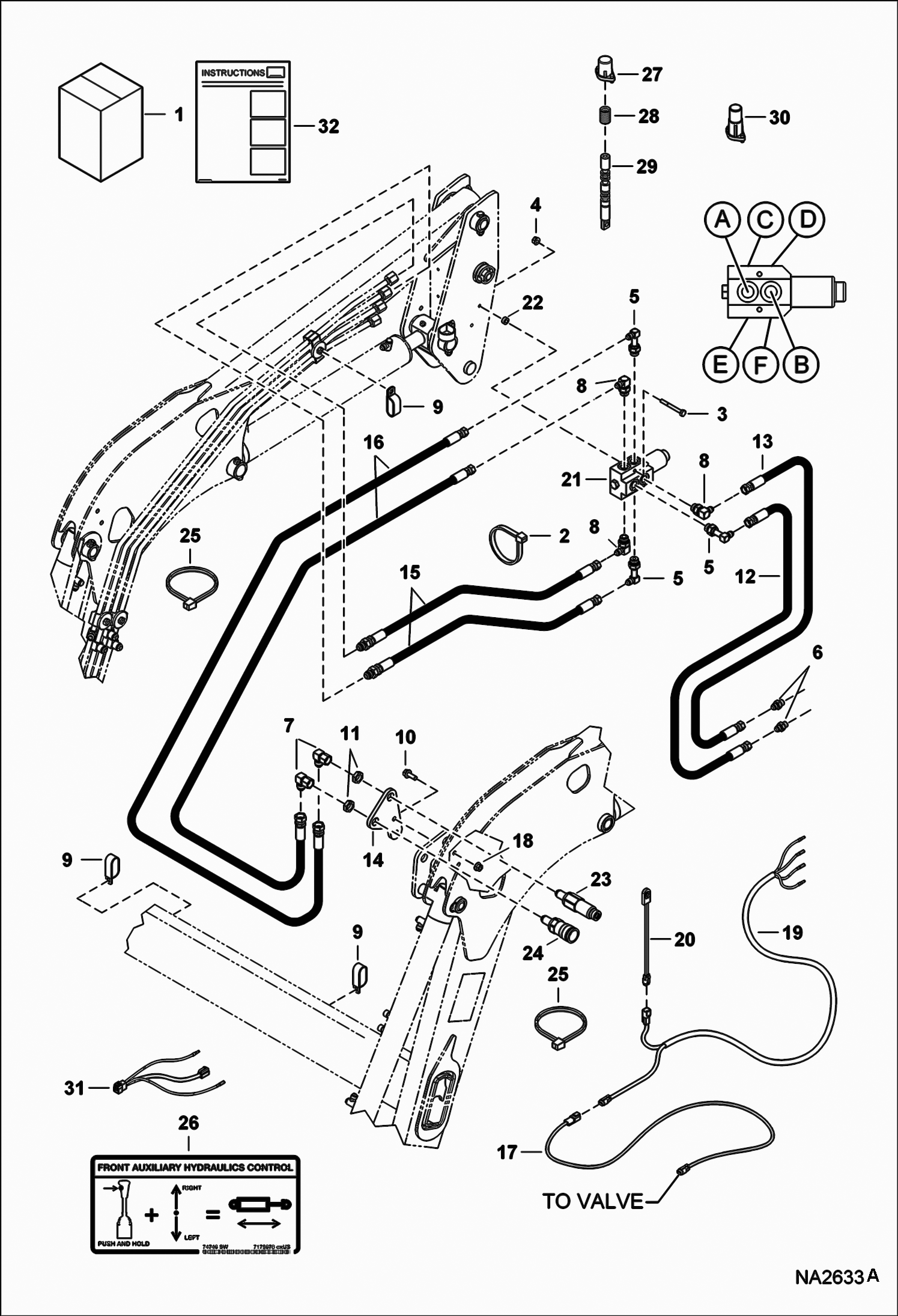

Запчасти Bobcat LOADER TRACTOR LOADER 9TL (AKPW, AL4F) (Front Auxiliary Kit) Компактные тракторы

1

7189049

KIT, AUX FRONT CT Ref. 2-5, 7-30 & 32 - Not approved for use W/CT335 or CT335SST equipped W/7-16 front Ag tires - pin-on tractor loaders must be equipped W/Bob-Tach kit

2

6624289

STRAP, TIE

3

17C436

BOLT

4

89D4

NUT

5

6812817

ELBOW

6

15KB0606

FITTING, HYD CONNECTOR not in kit

7

11K6

UNION

8

17KB0608

FITTING, HYD ELBOW

9

31H38

CLAMP

10

31C620

BOLT

11

86F6

NUT

12

7175106

HOSE, HYD 39.5'' (1003,3 mm) long

13

7175105

HOSE, HYD 41.25'' (1047,8 mm) long

14

7182634

MOUNT, COUPLER

15

7190141

HOSE, HYD 32.5'' (825,5 mm) long

16

7190142

HOSE, HYD 138'' (3505,2 mm) long

17

7174786

HARNESS, VALVE

18

83D6

NUT 5

19

7174784

HARNESS, SWITCH

20

7174702

SWITCH, MOMENTARY

21

7174466

VALVE, AUX FRONT

21

6683822

KIT solenoid W/nut & seals

21

6683823

COIL

22

6664085

BUSHING nylon

23

6676560

COUPLER, FF MALE 1/2''

24

6676559

COUPLER, FF FEMALE 1/2''

25

6690690

STRAP, TIE

26

7175678

DECAL, INSTRUCTIONS

27

7178633

BONNET, DETENT HYD VALVE W/Ref. 28 - Use on tractor models per listed serial numbers

28

SPRING NSS - Order Ref. 27

29

7178632

SPOOL, VALVE Use on tractor models per listed serial numbers

30

7192353

BONNET, DETENT HYD VALVE Use on tractor models per listed serial numbers

31

7175834

HARNESS, CAB POWER for cab models only - not in kit

32

6989588

INSTRUCTIONS
