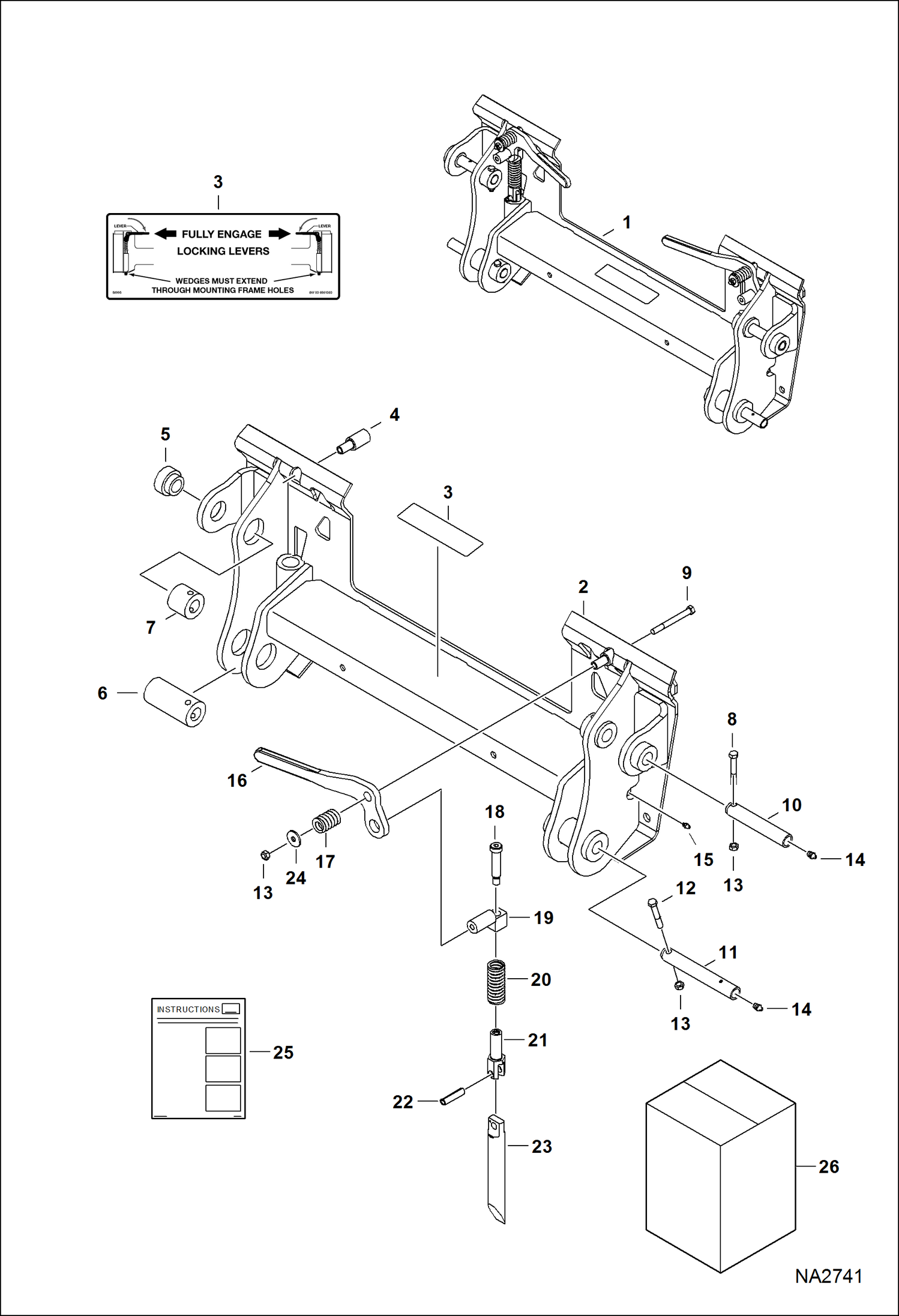

Запчасти Bobcat LOADER TRACTOR LOADER 9TL (AL4F) (Bob-Tach) Компактные тракторы

1

7189320

KIT, BOB-TACH Ref. 2-25

2

FRAME NSS - Order Ref. 1

3

6561383

DECAL, OPERATION 5 Bob-Tach locking levers

4

6702958

BUSHING, WELD-ON

5

7181392

BUSHING, PIVOT

6

7188290

BUSHING, PIVOT

7

7187460

BUSHING

8

17C632

BOLT 5

9

17C660

BOLT

10

7187462

PIN, CYLINDER

11

7188289

PIN, PIVOT

12

17C636

BOLT

13

85D6

NUT, 5

14

10H25

FITTING, GREASE 5

15

10H35

FITTING, GREASE 10

16

6702904

LEVER, BOB-TACH RH

16

6702903

LEVER, BOB-TACH LH

17

6713040

SPRING

18

6728473

BOLT, SHOULDER pre-applied thread locker

19

6731119

PIVOT, WEDGE

20

6578253

SPRING, COMPRESSION

21

6704248

PIVOT, WEDGE

22

14J5032

PIN, STRAIGHT

23

6737191

WEDGE

24

619021

WASHER, 5

25

6989571

INSTRUCTIONS
