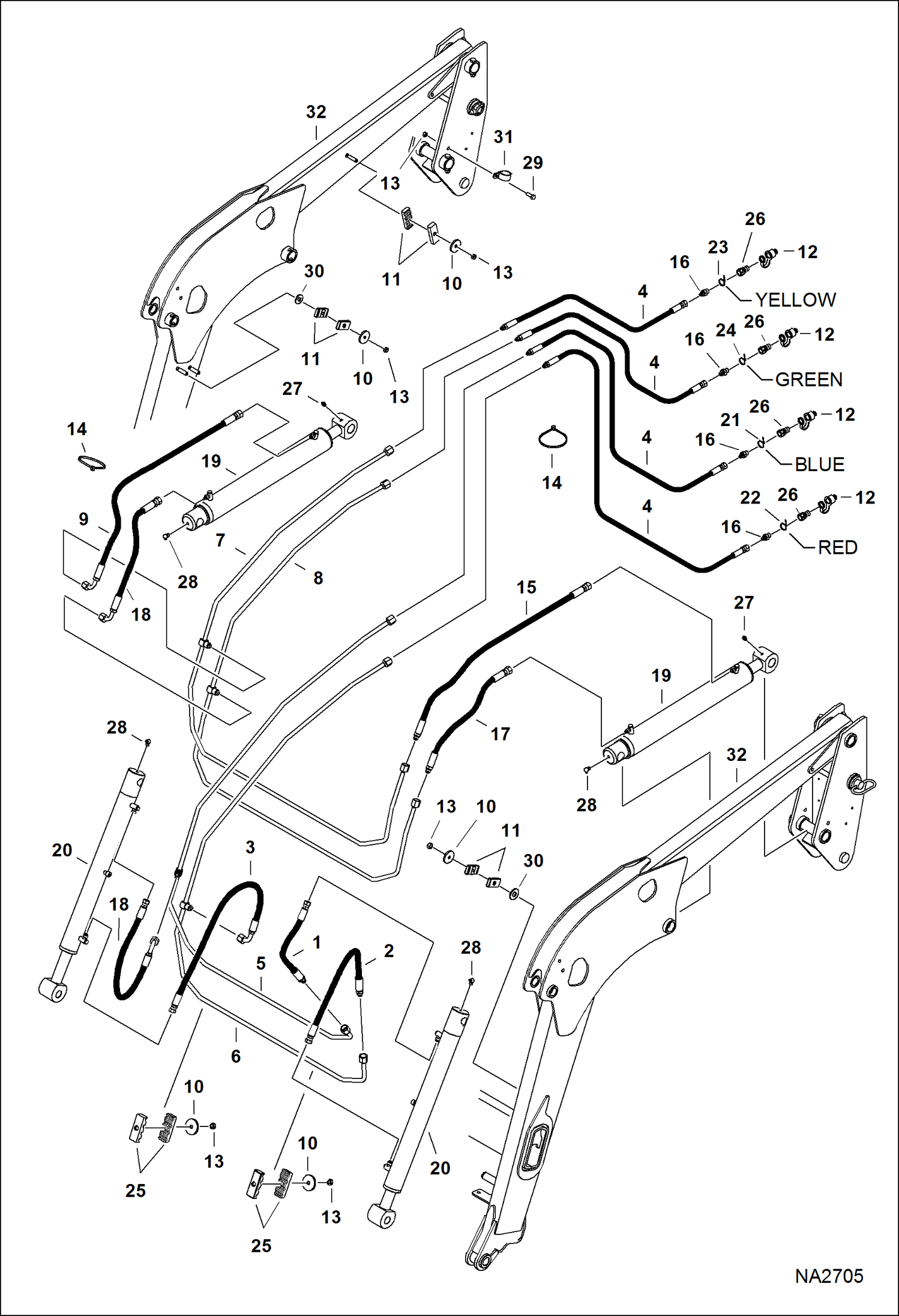

Запчасти Bobcat LOADER TRACTOR LOADER 9TL (AKPW, AL4F) (Hydraulic System) Компактные тракторы

1

7182489

HOSE, HYD 15.5'' (393,7 mm) long

2

7182488

HOSE, HYD 21.75'' (552,5 mm) long

3

7181719

HOSE, HYD 34'' (863,6 mm) long

4

7181713

HOSE, HYD 70'' (1778,0 mm) long

5

7182570

TUBELINE, HYD

6

7182571

TUBELINE, HYD

7

7182572

TUBELINE, HYD

8

7182573

TUBELINE, HYD

9

7181708

HOSE, HYD 44.25'' (1124,0 mm) long

10

872229

WASHER

11

6701892

CLAMP

12

7188736

COVER, DUST

13

85D6

NUT, 5

14

6624289

STRAP, TIE

15

7181711

HOSE, HYD 43.5 (1104,9 mm) long

16

17KB0606

FITTING

17

7181710

HOSE, HYD 25.5'' (647,7 mm) long

18

7181709

HOSE, HYD 25.75'' (654,1 mm) long

19

7183341

CYLINDER, LIFT See Illustration TRACTOR LOADER 9TL (AKPW, AL4F)/ NA2706

20

7183451

CYLINDER, TILT See Illustration TRACTOR LOADER 9TL (AKPW, AL4F)/ NA2707 - bucket

21

6693541

BAND, SPIRAL BLUE

22

6693542

BAND, SPIRAL RED

23

6693543

BAND, SPIRAL YELLOW

24

6693544

BAND, SPIRAL GREEN

25

7190116

CLAMP, TUBELINE

26

7190242

COUPLER, POPPET MALE

26

7017076

KIT, SEAL

27

10H25

FITTING, GREASE 5

28

12H15

FITTING, GREASE 5

29

17C616

BOLT 5

30

27E8

WASHER 10

31

30H60

CLIP

32

LIFT ARM See Illustration TRACTOR LOADER 9TL (AKPW, AL4F)/ NA2705

32

LIFT ARM See Illustration TRACTOR LOADER 9TL (AKPW, AL4F)/ NA6536
